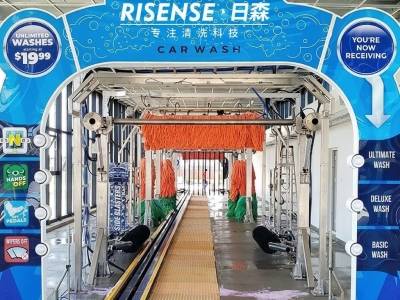

    Tunnel Car Wash Equipment

    CC-699 (American-Style)

    Tunnel Car Wash Machine

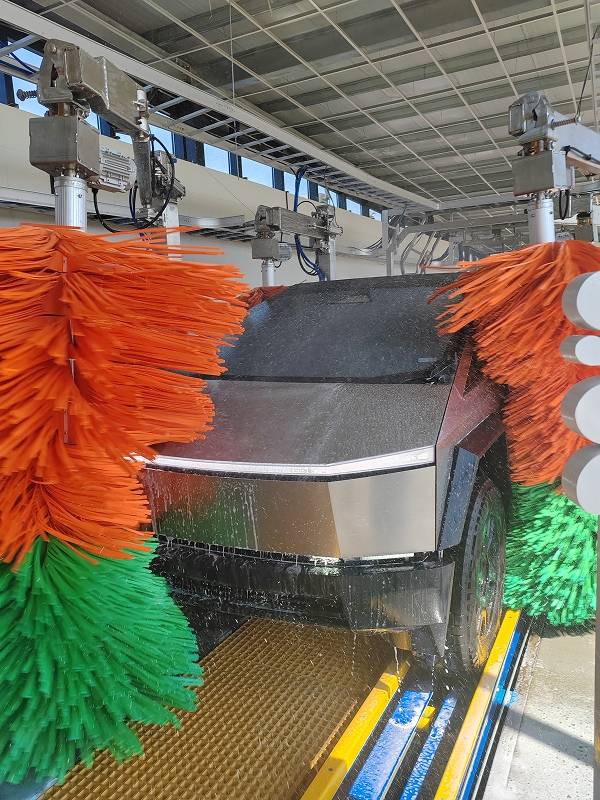

    The car wash tunnel system features pre-wash, wheel brushing, top brushing, triple foam spraying, vertical brushing, water spraying, specialized type washing and polishing, sideways brushing, sideways high-pressure water spraying, waxing , protective coating, and quick drying, providing meticulous cleaning and caring for vehicles.

    The car wash tunnel system is suitable for sites with a length of 30-100 m.

    Note: The modular design allows flexible configurations for brush numbers, spraying, drying, etc.

    Request a Quote
    • Tunnel Car Wash Equipment
    • Tunnel Car Wash Equipment
    • Tunnel Car Wash Equipment
    • Specifications
    • Advantages
    • Highlights
    Technical Specifications
    Dimensions (m) 37.35(L), 3.8(W), 3.4(H)
    Washing range L:≤5.2m, W:≤2.1m, H:≤2.1m
    Total power 156.72 kW
    Power requirements AC460V 60Hz, three-phase system
    Air requirements 0.75~0.9MPa, flow rate ≥ 0.3 m3/min
    Applicable vehicles Sedans, SUVs, vans
    Power usage 3.8-4.2kWh/vehicle
    Water usage Approx. 1.2m³-1.4m³/vehicle
    Washing time Approx. 6.5min/vehicle
    Configurations
    Components Manufacturers
    Top brushes Rotation motor SITI S.p.A.
    Cylinder AirTAC International Group
    Large vertical brushes Rotation motor SITI S.p.A.
    Cylinder AirTAC International Group
    Wheel brushes Rotation motor SITI S.p.A.
    Cylinder AirTAC International Group
    Sideways top brushes Motor SITI S.p.A.
    Lift high-pressure water spraying system Lift motor SITI S.p.A.
    Tire polishing brushes Rotation motor SITI S.p.A.
    Cylinder AirTAC International Group
    Conveyor Cylinder AirTAC International Group
    Gear motor SITI S.p.A.
    Vertical centrifugal pump for brush water supply
    PLC Mitsubishi Electric Corporation
    Photoelectric sensor Banner
    Proximity sensor Pepperl+Fuchs
    Contactor ABB Ltd.
    Advantages
    • Advantages

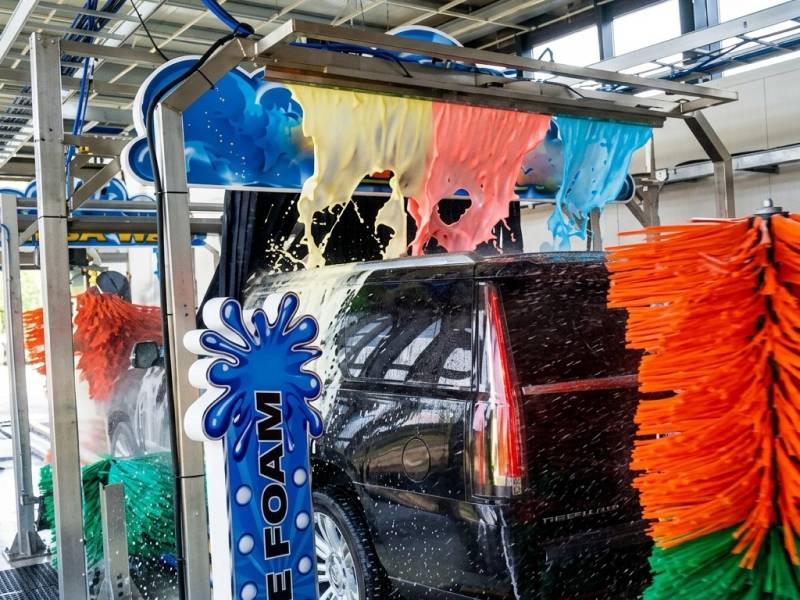

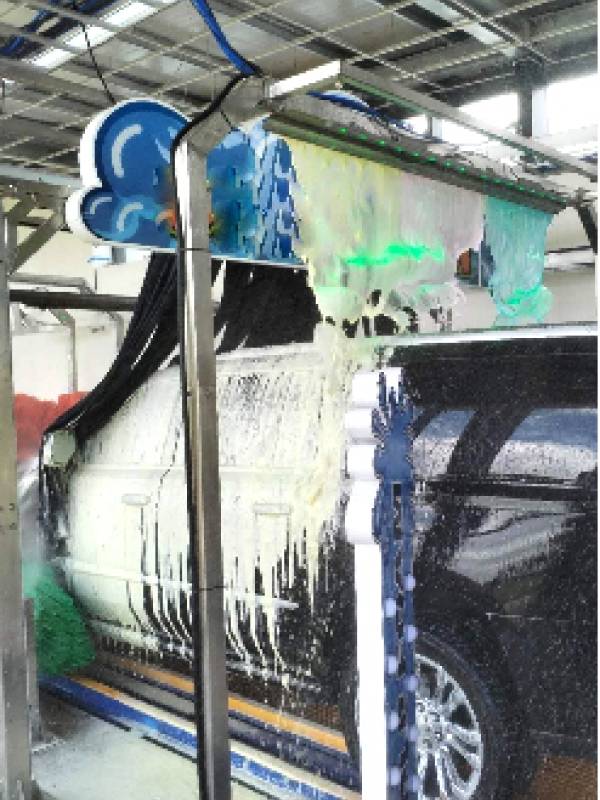

      Triple foam spraying The foam spraying system can discharge large quantities of foam to fully cover the vehicle with the protective coating process happening simultaneously, increasing cleaning efficiency and giving the vehicle a shiny look.

    • Advantages

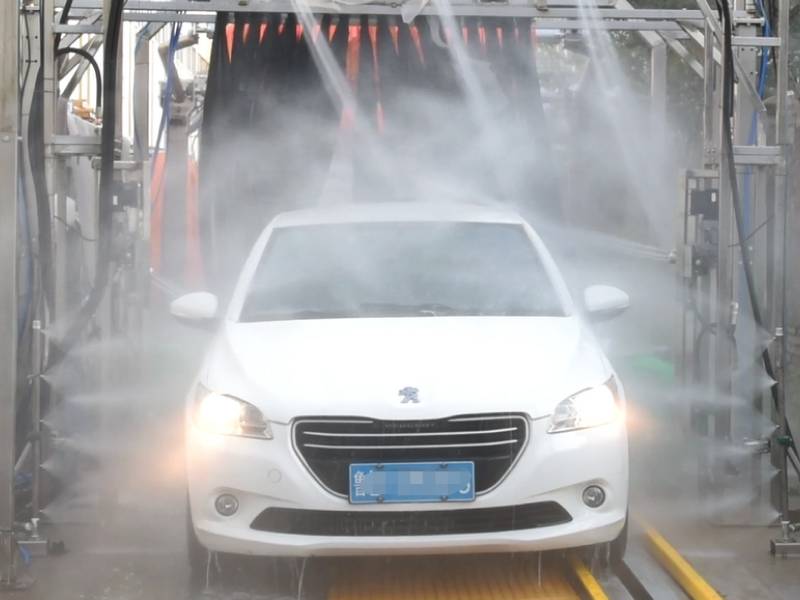

      Sideways spraying High-pressure water spraying nozzles can automatically turn sideways to cover hard-to-reach areas and rinse away stains and foam residue

    • Advantages

      Reverse osmosis (RO) system RO system separate water from other substances, creating highly-purified water for effectively rinsing off liquid left on the vehicle and making way for the drying process after.

    • Advantages

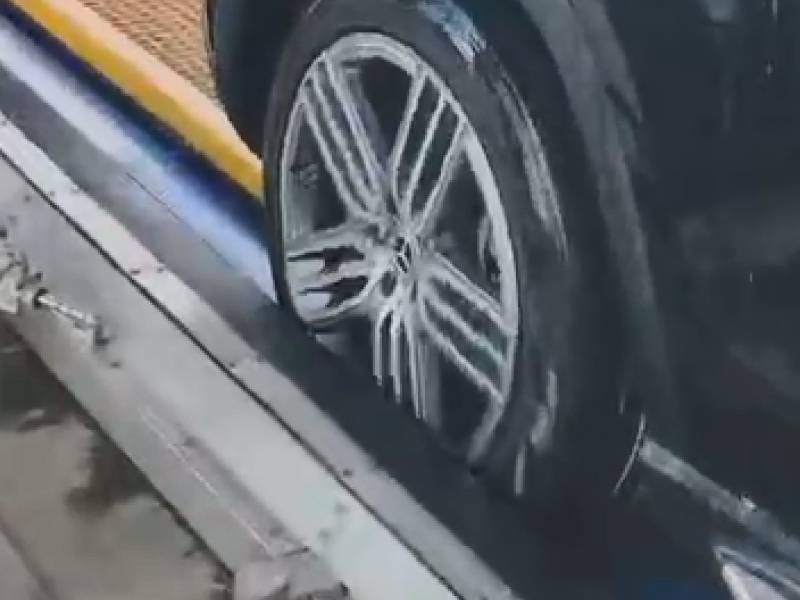

      Wheel polishing brushes The wheel polishing brushes apply tire shine on the tire, creating an attractive and shiny look.

    • Advantages

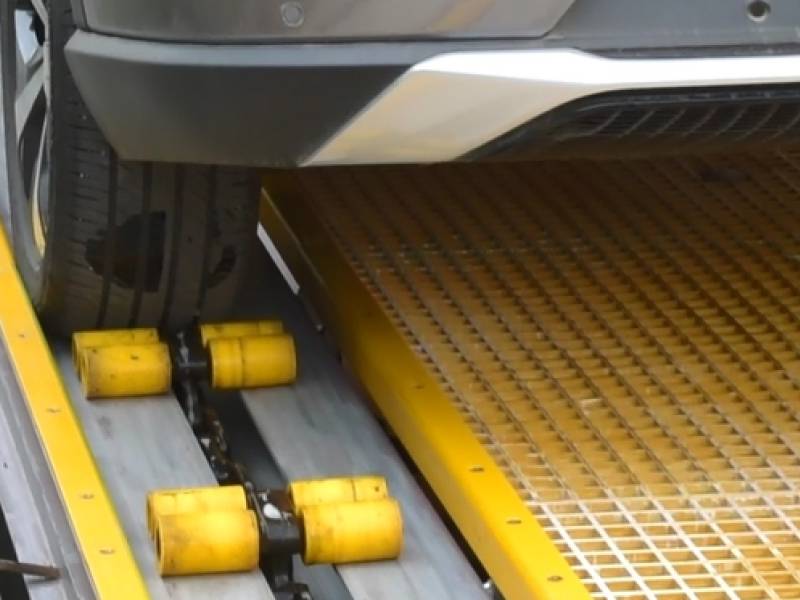

      Three-tier conveyor The three-tier conveyor system consists of heavy-duty steel conveying chains and one-side driving wheels and contributes to heavy loading capacity. When the operation is off, the yellow driving wheels runs under the conveyor; when the operation is on, the yellow driving wheels runs above the conveyor and propels the vehicle to move forward, while not being affected by the wheelbase, unlike conventional conveyors with fixed-spacing rollers that often result in more waiting time.

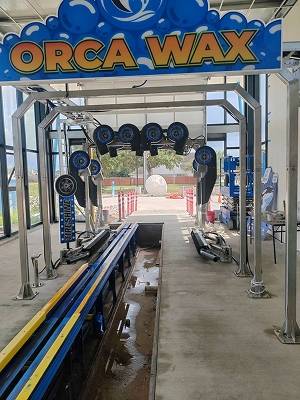

    Highlights
    • Highlights
    • Highlights
    • Highlights
    • Highlights
    • Highlights
