Heavy Duty Truck Washing Systems

Car wash industry demand analysis

We have a heavy duty wash solution for every mining application.

Risense offers a variety of mining vehicle wash equipment, all of which utilizes multi-direction high pressure water for a full tire and undercarriage cleaning performance on oversize trucks.

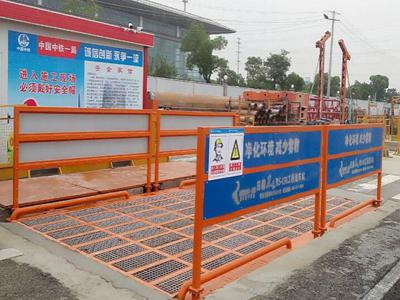

Heavy duty truck wash system for heavy trucks with a capacity under 150 T
Heavy duty truck washing system rolling washing and worksite heavy equipment wash system for heavy trucks with a capacity under 130 T
Gantry pre-washing system for all types of heavy-duty equipment.
    2. Heavy Duty Wheel Wash Systems (80 Tons)The heavy duty wheel wash system (80 tons) is designed for cleaning the tires and the chassis of various engineering vehicles whose weight is less than 80T. It uses high pressure water to clean the tires, fenders and chassis of the vehicle. Its washing efficiency is 60-80 cars/hour.

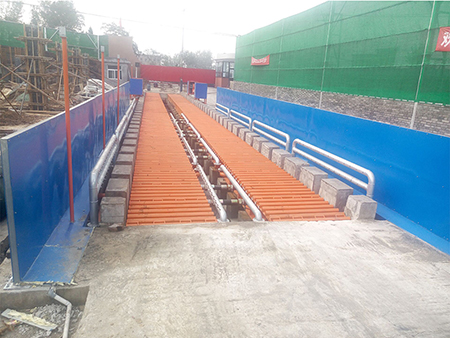

    2. Heavy Duty Wheel Wash Systems (150 Tons)The heavy duty wheel wash system (150 tons) is suitable for clean the tires and the chassis of engineering vehicles whose weight is less than 150T. The washing efficiency of this wash system is 60-80 cars/hour.

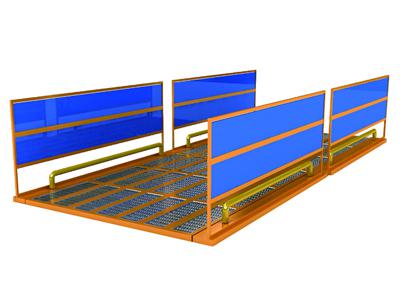

    2. Worksite Heavy Duty Wheel Wash Systems (80 Tons) (130 Tons)Worksite heavy duty truck wash system (130 tons) is designed for cleaning the engineering vehicles whose weight is less than 130T and suitable for users such as thermal power plant and coal mine. It has automatic mud discharge function and water recycle system which can save significant amounts of water. This wash system has the advantages of quick wash and easy installation. Its washing efficiency is 60-80 cars/hour.

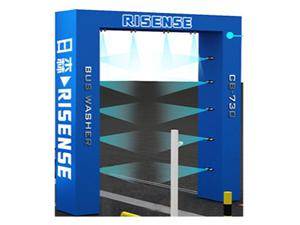

    2. Gantry Truck Wash SystemGantry truck wash system is a touchless engineering vehicle wash system designed for landfills, construction sites, concrete factories, mines, industrial manufacturing enterprises, etc. It is equipped with water recycle system which can save significant amounts of water. Its washing efficiency is 60-80 cars/hour.
Car wash flow

Before the truck enters the cleaning area, operators need to press the power button while the cleaning line remains in standby. The vehicle then passes through the washing system at a speed limit of 5km/h, thus ensuring the truck goes through the guide rails.

Parameters
Distribution system rated voltage AC 380V
Distribution system rated current ≥15A
Distribution system rated power 7.7-22 kW
Applicable vehicles Heavy-duty trucks capacity< 130T
Washing pressure >3 Kg/cm² (frequency adjustable)
Washing time 1~99s (adjustable)
Starting method Automatic/manual
Advantages
  • Full-automatic precise washing

    The fully automatic computer control system requires only one operator to significantly reduce manual washing costs. The mechanical switch system utilizes photoelectric sensors for an extremely high precision.

  • Long service life

    The gantry pre-washing system is made of high quality steel pipes and steel plates, featuring a large loading capacity.

    The steel body doesn’t come into direct contact with water or mud, thus preventing corrosion and extends the service life.

  • Full-directions washing

    The heavy duty truck washing system has 138 water nozzles for a full tire, undercarriage and other truck part cleaning. Copper direct injection nozzles are used, which feature a high spraying pressure and a low damage rate.

Heavy duty truck washing system recommendation

The heavy duty truck washing system is suitable for washing oversize vehicles, such as buses and trucks. Risense’s mining wash system with a high washing speed and simple assembly is ideal for use in refuse landfills, construction sites, concrete plants, mines, industrial locations, and other locations. This truck was system can wash anywhere between 60 to 80 trucks per hour, and the water recycling system saves water.

In addition to the heavy duty truck washing system, other wash systems are available.
