Tunnel Car Wash Systems

According to market trends, Risense has developed a car wash tunnel system that works for continuous car washing of up to 50 to 60 cars per hour. This car wash tunnel system is affordable, and suitable for washing sedans, SUVs and other vehicles.

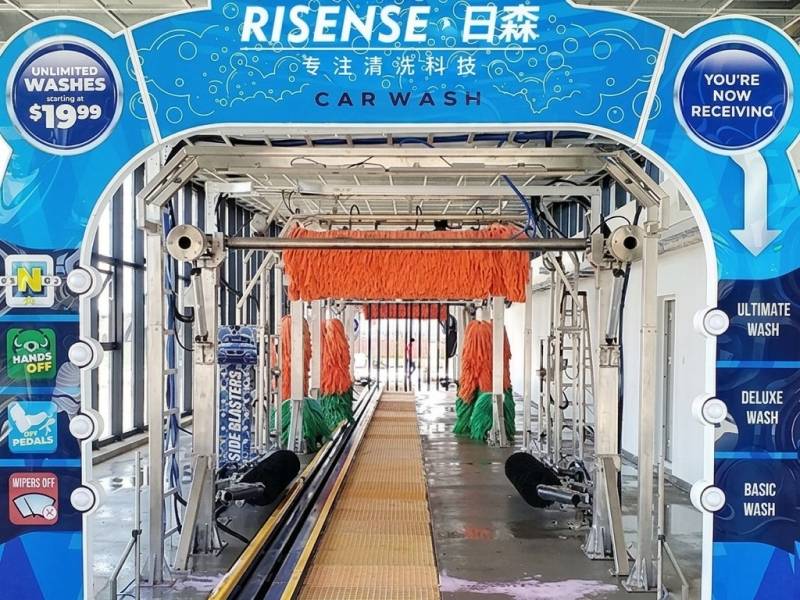

The tunnel car wash system has the same basic principle as the rollover car wash machine, in that it drags cars, facilitating movement along rails. The vehicles are sprayed with water, scrubbed, sprayed with a water wax, then dried- all inside the tunnel.

We offer the following 5 tunnel car wash systems:

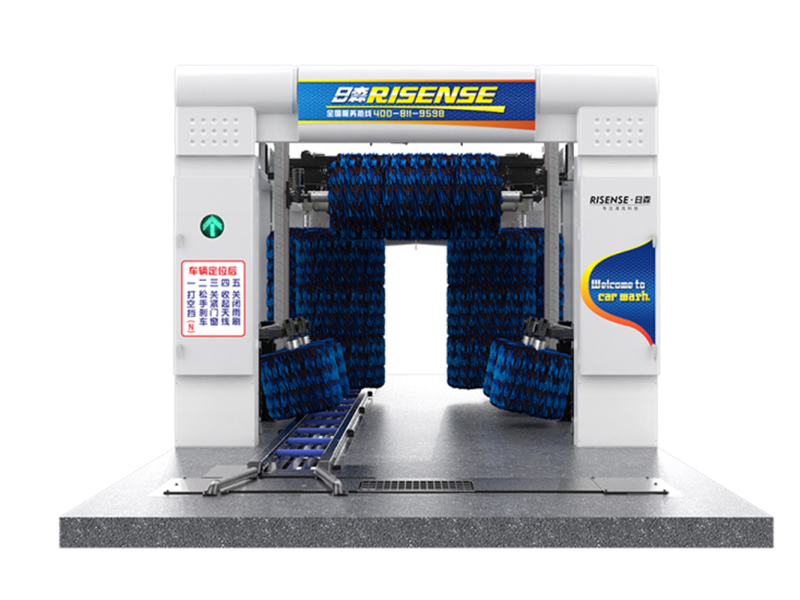

    1. Tunnel Car Wash Equipment CC-650 (5-Brush)CC-650 tunnel car wash equipment is an economical tunnel car wash system which is equipped with 5 car brushes and its washing efficiency is 45-55 cars/hour.

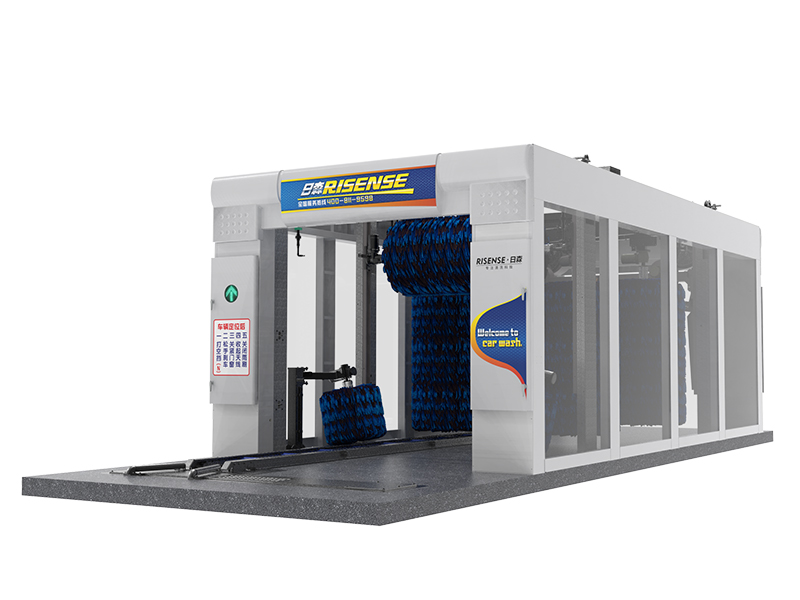

    1. Tunnel Car Wash Equipment CC-670 (7-Brush)CC-670 tunnel car wash equipment is an economical tunnel car wash system. It features 7 car brushes to realize the quickly and continuously car washing. Its washing efficiency is 45-55 cars/hour.
    1. Tunnel Car Wash Equipment CC-690 (9-Brush)CC-690 tunnel car wash equipment is a standard tunnel car wash system which is equipped with 9 car brushes and its washing efficiency is 50-60 cars/hour. This car wash equipment uses high quality parts that ensure it service life is more than 15 years.

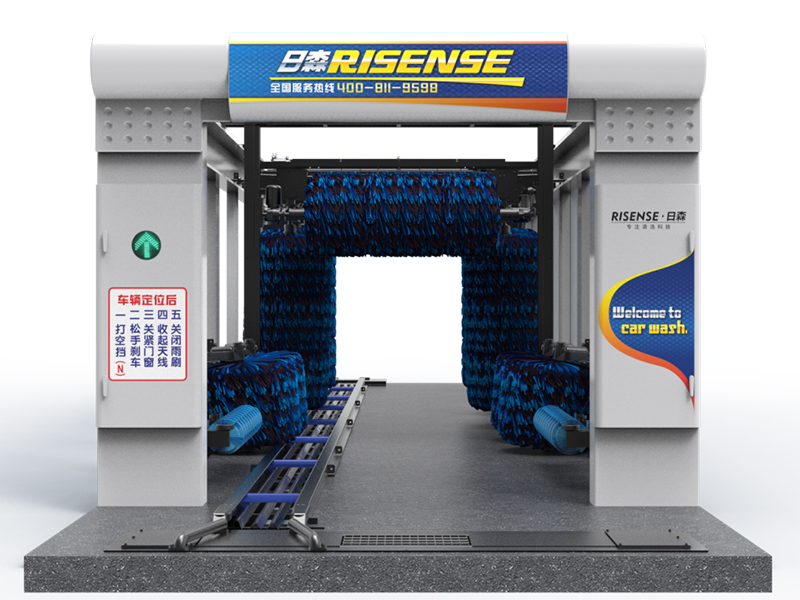

    1. Tunnel Car Wash Equipment CC-692 (11-Brush) CC-692 tunnel car wash equipment is the upgraded version of CC-690 tunnel car wash equipment. It adds 2 horizontal brushes on the base of CC-690. This tunnel car wash system has 11 car brushes which provide a better washing effect.

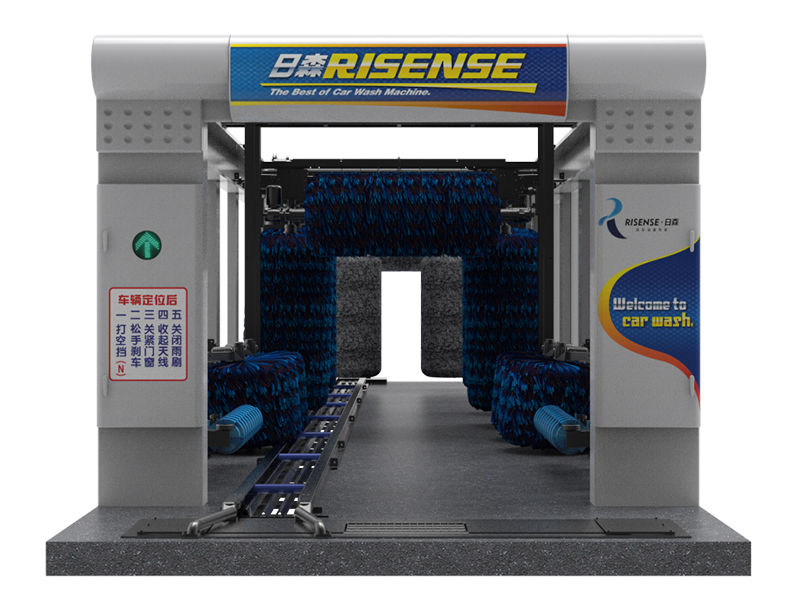

    1. Tunnel Car Wash Equipment CC-695 (14-Brush)CC-695 tunnel car wash equipment is a high-end tunnel car wash system which adds 2 horizontal brushes and 3 dry brushes on the base of CC-690 tunnel car wash equipment. It has 14 car brushes which not only provide a better washing effect, but also offer polishing function.
Parameters
consumption Small brush motor 0.37KW/set
Lateral brush motor Cloth brush: 0.37KW×1 foam brush: 0.75KW*1
Overhead brush motor Cloth brush: 0.37KW×1 foam brush: 0.75KW*1
Conveyor motor 1.5KW×1
Dryer motor 5.5KW×4
Water pump motor 1.5KW×1, 2.2KW ×1,4KW×1 (high pressure pump motor)
Car washing Washing method Foam washing, water wax washing
Water consumption 80-150L/car
Power consumption 0.6kwh/car
Shampoo consumption 7ml/car
Water wax consumption 12ml/car
Assembly Voltage AC380V50Hz (5 wire system)
Water supply DN25mm water flow rate≥200L/min
Air pressure 0.75~0.9Mpa(7.5~9.0kgf/cm2)air flow rate≥0.1m3/min
Ground flatness Deviation≤10mm
Material Frame Hot-dip galvanizing (Zinc thickness≥70um) Anti-corrosion, anti-rust
Brush Aluminum alloy tube, second-generation cloth brush
Advantages

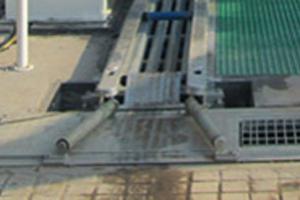

  • The automatic wheel guide system located at the car wash system entry ensures cars will enter the correct rails.

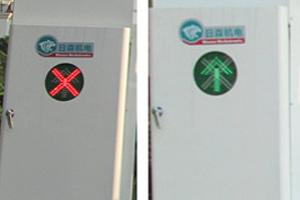

  • Entry warning light

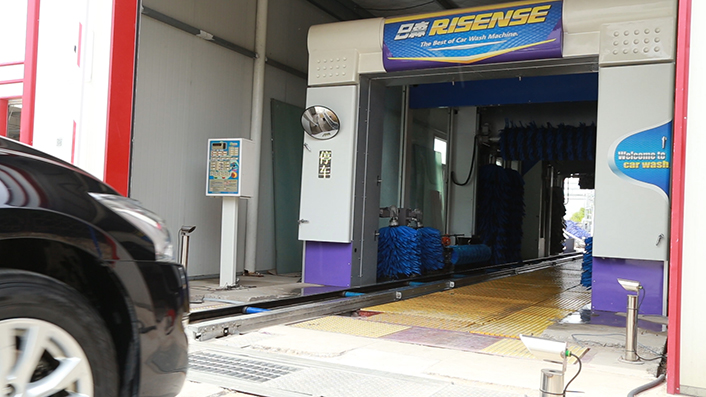

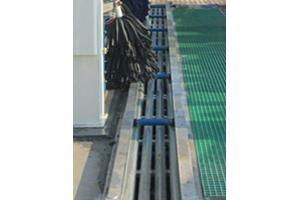

  • A widened automatic conveyor makes it easy for cars to enter the tunnel car wash.

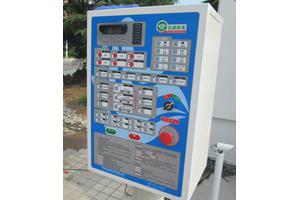

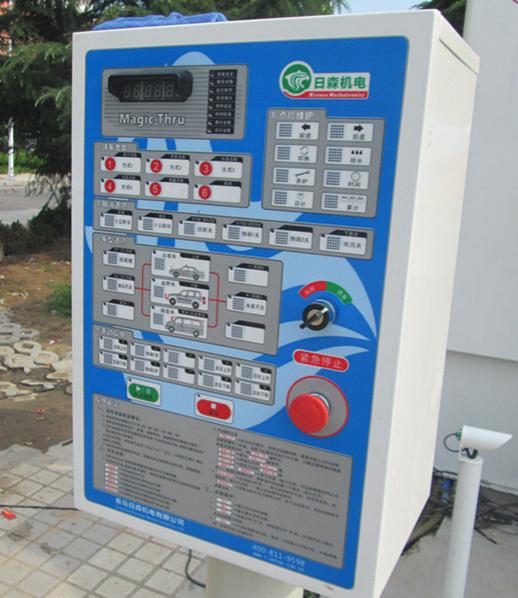

  • The console is high and fully enclosed, ensuring it is waterproof, and the circuit board inside is protected.

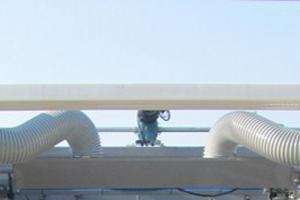

  • An overhead integrated dryer offers an excellent blowing performance and will regularly lift.

  • The auto-inducted roof flow line will follow vehicle contours for washing and drying.

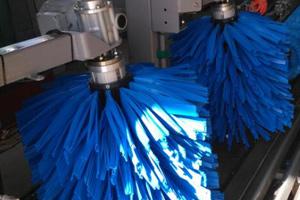

  • Small vertical brushes will auto-induct the car distance and tilt 15°inward, thus enclosing and cleaning two car sides and the tires.

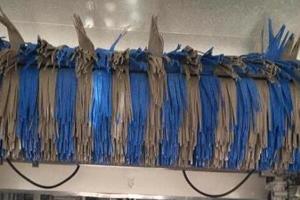

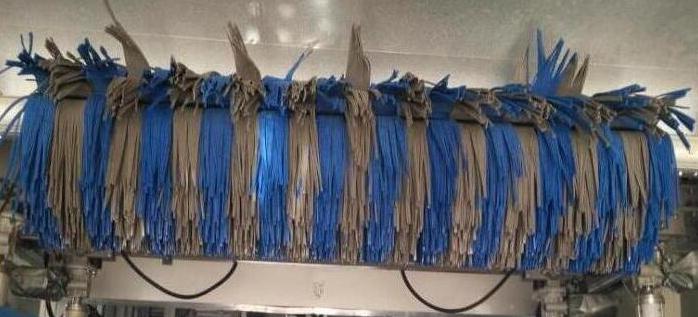

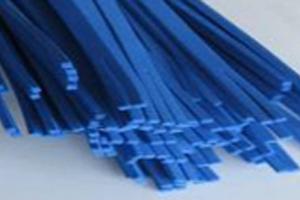

  • The foam brushes feature a strong water absorption performance in order to improve washing effects.

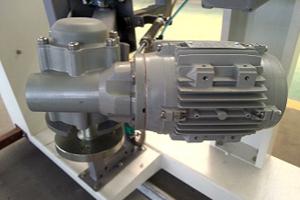

  • The overhead brush vertically lifts, and is run by a high quality brake motor supplied by the Italian company SITI. It also features an outstanding waterproof performance.

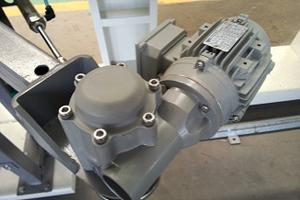

  • The rotating motor and switch motor on the mobile large vertical brushes are supplied by the Italian company SITI, and are extremely waterproof. The four guard rails ensure the back and forth movement of the large vertical brush is extremely stable.
