Tunnel Car Wash Equipment

CC-650

Tunnel Car Wash Equipment (5-Brush)

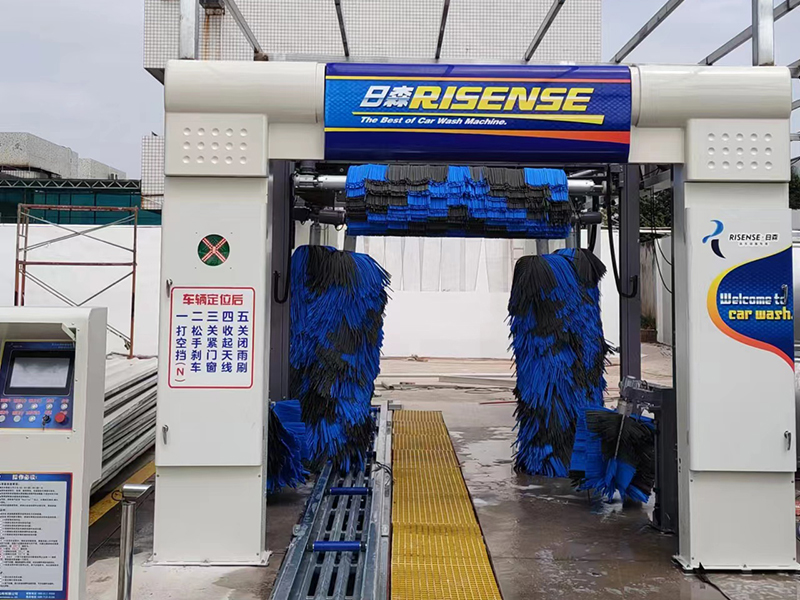

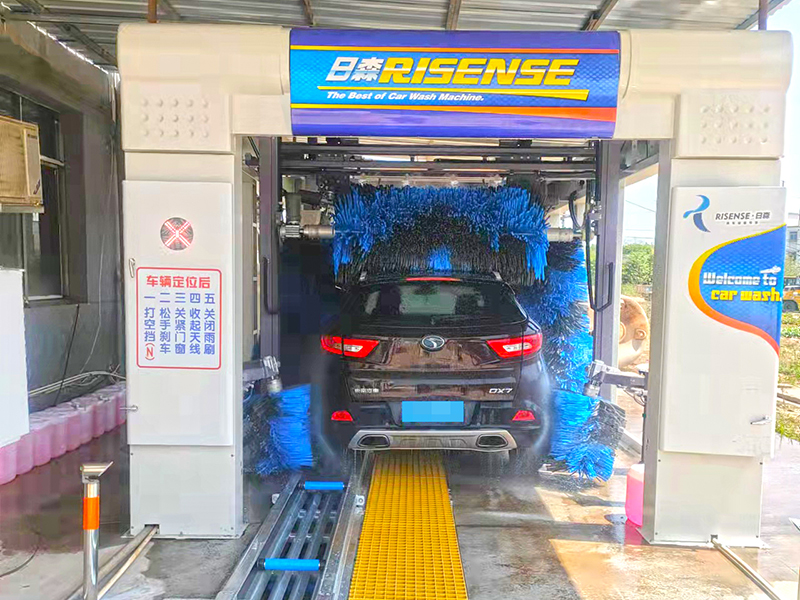

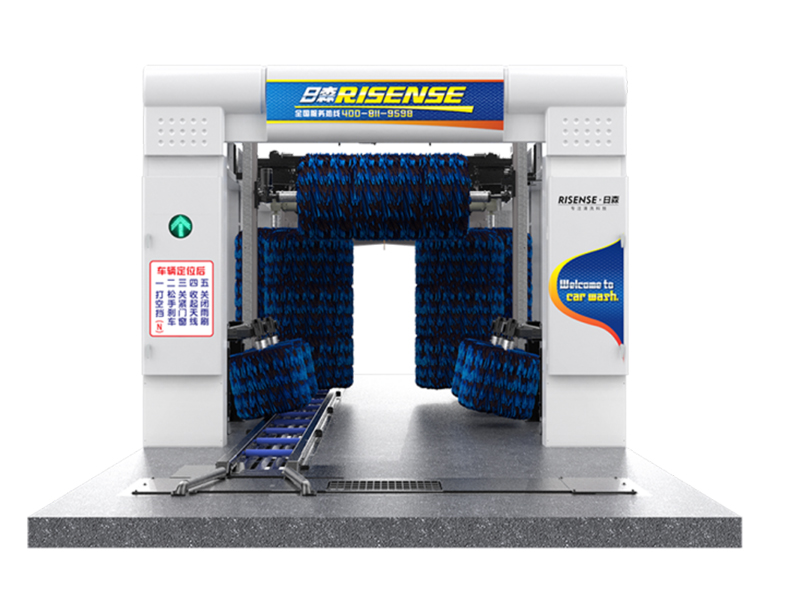

This tunnel car wash system features 5 car brushes: 1 vertical lift overhead brush, 2 small vertical brushes and 2 large vertical brushes. The galvanized frame of this car wash system is both solid and durable, and the control system is a fully automatic PLC computer control system, which improves security levels. For more details, please see the table below.

Request a Quote
  • Tunnel Car Wash Equipment
  • Tunnel Car Wash Equipment
Parameters
ModelCC-650
Overall dimension 7000*3800*3440mm
Length of conveyor: 9120mm (including wheel guide)
Installation size 9250*4000mm
Voltage AC 380V 50Hz (5-wire system)
Water supply Pipe diameter: DN25, water flow≥200L/min
Air supply Air pressure: 0.75-0.9MPa, air flow≥0.1m³/min
Ground flatness Deviation≤10mm
Available car to wash Car\jeep\coach within 10 seats
Moving range 5300*2100*2100mm(wheelbase≤3200mm)
Car wash capacity 45-55 sets/hour
Water consumption 130L/car
Power consumption 0.6kW/car
Shampoo consumption 20-40ml/car
Wax consumption 30ml/car
Key Parts
Hot-dipped galvanized frame 1 group
Shampoo spray system 1 group
Wax spray system 1 group
Contour-following drying system 1 group
Car entry guide rail apparatus 1 group
Chassis spraying system Can be added
High pressure water spraying device Can be added
Equipment data intellectualization Management, spot check, operation
Self-diagnose system Automatic fault display, self-checking
Short vertical brushes 2
Long vertical brushes 2
Top brush 1
Configuration
PLC Mitsubishi from Japan
Optoelectronic monitoring Banner from the USA
Brush rotating motor SITI
Contactor Schneider from France
Proximity Switch PEPPERL FUCHS from Germany
Small brush cylinder AirTAC
Wax suction pump Bello Zon from Germany
Advantages
  • The galvanized frame of this tunnel car wash system is both solid and durable.
  • The high pressure wash system improves the washing performance.
  • The foam and water wax proportioning system is easy to use.
  • One group of lift dryers.
  • The liquid automatic siphon is easy to operate.
  • Multiple cleaning and long term washing applications will fully rinse the car and ensure a full washing performance.
  • A PLC full-automatic computer control system ensures a higher security.
  • The one-click washing method is easy to operate.
  • The contour-following drying system ensures a better drying performance.
