CC-690 (9-Brush)

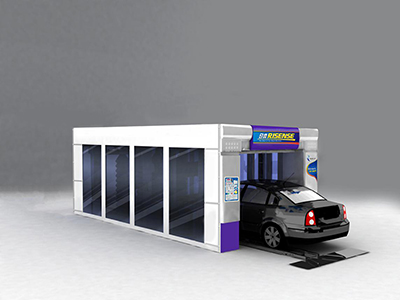

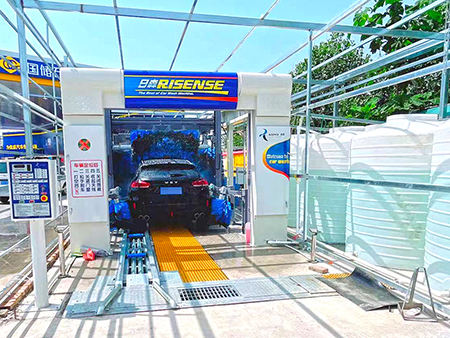

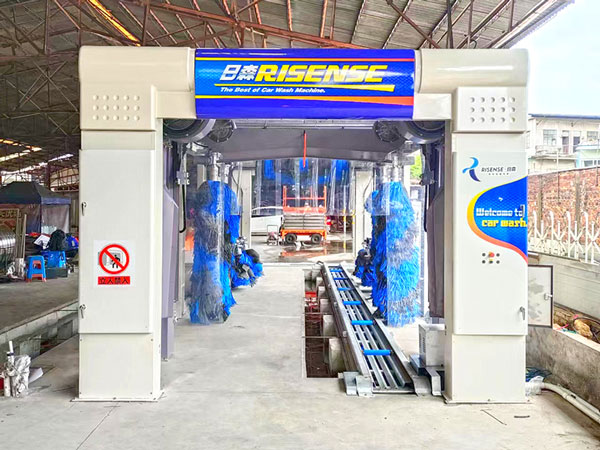

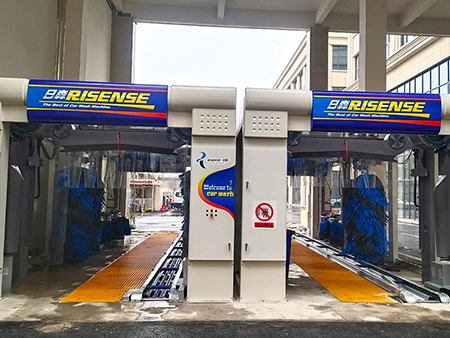

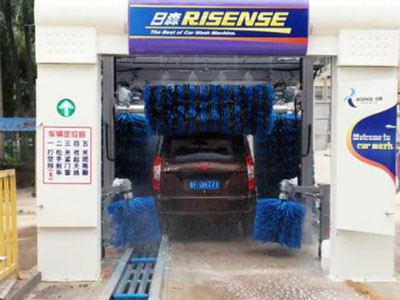

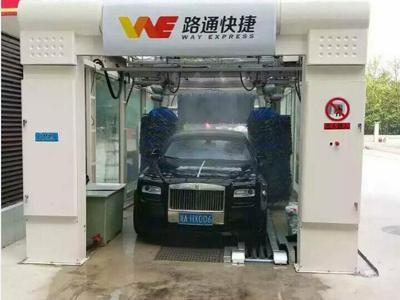

Tunnel Car Wash Equipment

This tunnel car wash system features 9 brushes, and will wash every aspect of a car, all while using less water and a lower power consumption. This car wash system improves washing efficiency, saves utilities, and increases customer profits, making this conveyor car wash a popular system among our customers.

Request a Quote
  • Tunnel Car Wash Equipment
  • Tunnel Car Wash Equipment
  • Tunnel Car Wash Equipment
  • Tunnel Car Wash Equipment
  • Tunnel Car Wash Equipment
  • Tunnel Car Wash Equipment
  • Parameters
  • Configuration
  • Advantages
  • Details
Parameters
Model CC-690
Overall dimension 9500*3800*3440mm
Length of conveyor:11.6m（Including wheel guide）
Installation size 11880*4000mm
Voltage AC 380V 50Hz (5-wire system)
Water supply Pipe diameter: DN25 Water flow≥200L/min
Air supply Air pressure: 0.75-0.9MPa, air flow≥0.1m³/min
Ground flatness Deviation≤10mm
Available car to wash Car\jeep\coach within 10 seats
Moving range 5300*2100*2100mm (wheelbase≤3200mm)
Car wash capacity 45-55 sets/hour
Water consumption 150L/car
Power consumption 0.6kW/car
Shampoo consumption 20-40ml/car
Wax consumption 30ml/car
Key parts
PLC Mitsubishi from Japan
Optoelectronic monitoring Banner from the USA
Brush rotating motor SITI
Contactor Schneider from France
Proximity Switch Pepperl + Fuchs from Germany
Small brush cylinder AirTAC
Wax suction pump Bello Zon from Germany
Configuration
Hot-dipped galvanized frame 1 group
Shampoo spray system 1 group
Wax spray system 1 group
Contour-following drying system 1 group
Car entry guide rail apparatus 1 group
Chassis spraying system Can be added
High pressure water spraying device Can be added
Equipment data intellectualization Management, spot check, operation
Self-diagnose system Automatic fault display, self-checking
Short vertical brushes 4
Long vertical brushes 4
Top brush 1
Advantages
  • The galvanized frame of the tunnel car wash system is both solid and durable.
  • The high pressure wash system improves the washing performance.
  • The foam and water wax proportioning system is easy to use.
  • Four groups of powerful dryers.
  • The liquid automatic siphon is simple to operate.
  • Multiple cleaning and long term washing completely washes the car, and ensures a superior washing performance.
  • The PLC fully-automatic computer control system ensures a higher security.
  • A one-click washing method is easy to operate.
  • The contour-following drying system creates a better drying performance.
  • The built-in self-diagnosing system will recognize and remove any mechanical obstacles during the washing process.
Details

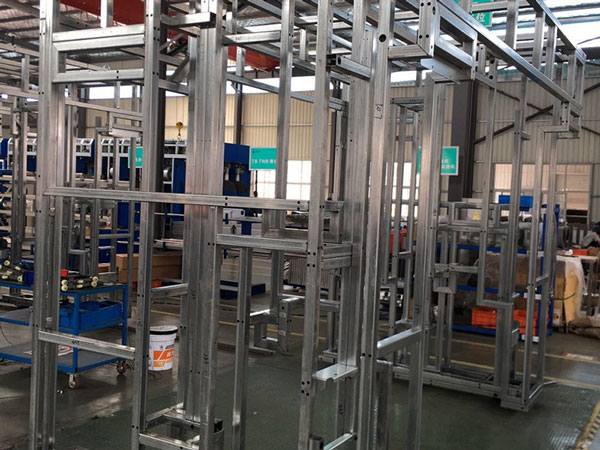

  • Non-welded hot-dipped galvanized steel frame

    Non-welded hot-dipped galvanized steel frame

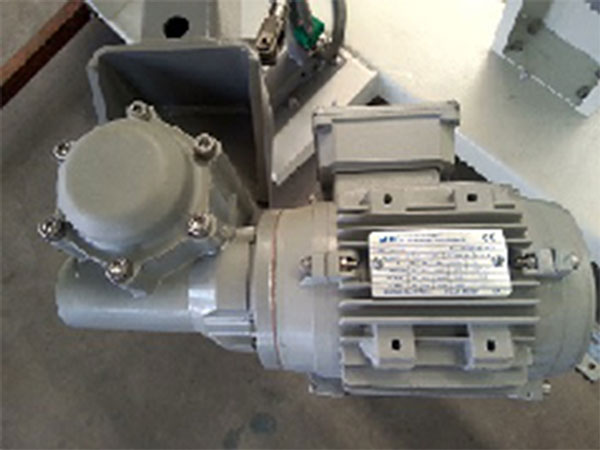

  • SITI Motor

    SITI Motor

  • Air dryer

    Air dryer

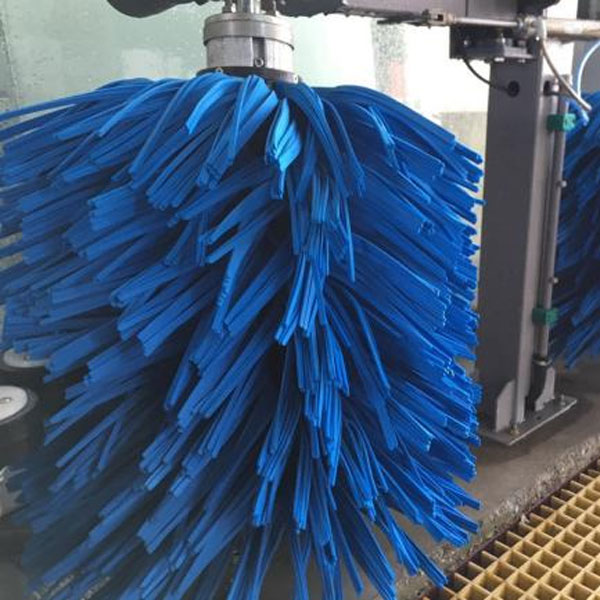

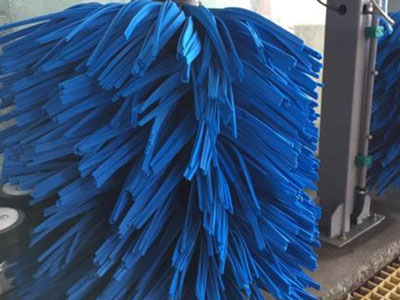

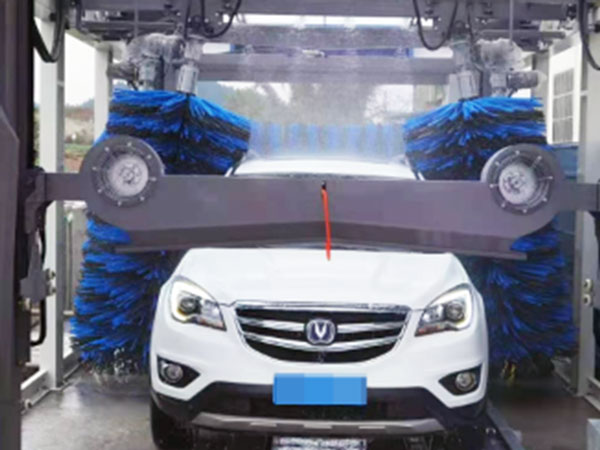

  • Foam brushes

    Foam brushes

    After years of research and development, 4th generation of swallow-tailed foam brushes contain an appropriate proportion of rubber and thus prevent potential risks.
    Foam brushes have great capacity to retain water, which incredibly improve the washing effect.
  • Details

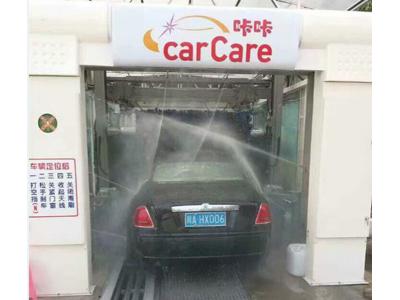

    The conveyors automatically move the car to complete the whole process from pre-soak rinse to air drying. Tunnel car wash equipment CC-690 (9-Brush) can clean cars continuously.

    Features
    Easy to manage;
    Various combinations of car wash methods;
    High efficiency: it can wash 45 to 55 cars per hour.
    Low energy consumption: on average, it consumes 150 L of water and 0.6 kWh of electricity per vehicle.

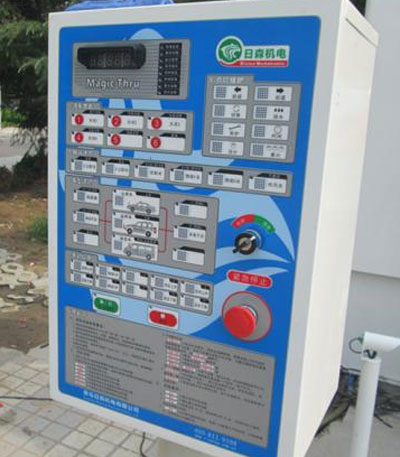

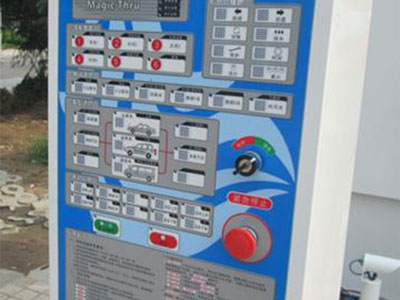

  • Control panel

    Control panel

    Being enclosed
    Water proofing
    Long life of the circuit board

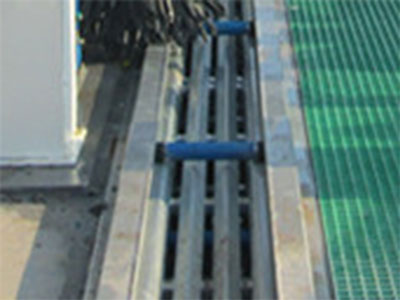

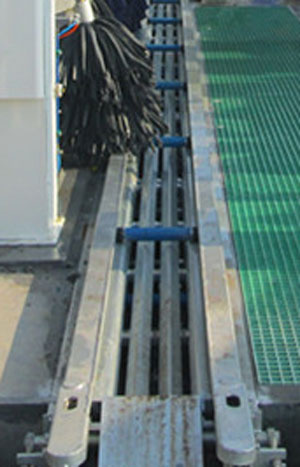

  • Conveyors

    Conveyors

    Suitable for various types of cars
    Equipped with P209 pillow block bearing
    Long service life
    Convenient to maintain

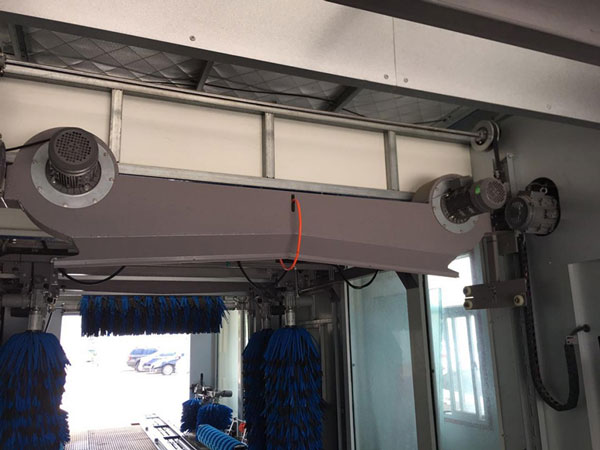

  • Dryers

    Dryers

    Integral top dryers on both sides
    High-pressure air drying effect
    Move vertically to adapt to various cars

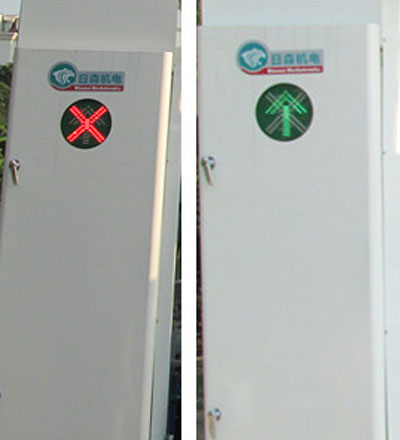

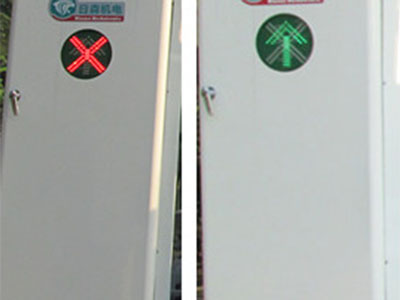

  • Signals at the entrance

    Signals at the entrance

    Red cross and green arrow signal light;
    Easy to notice
  • Width

    Width

    Tunnel car wash equipment CC-690 is 3.8 meters in width
    2.2 meters for car wash is much safer
