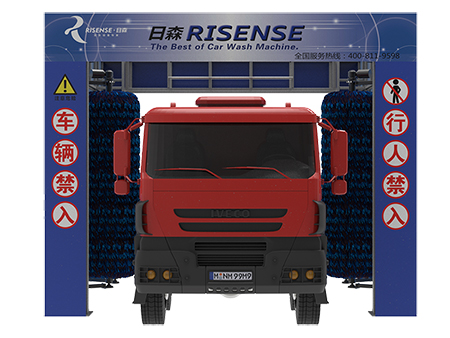

The drive through bus wash system with 4 brushes (CB-740) features a fast washing speed, which makes it suitable for car washing plants with a large amount of traffic. This wash system will wash the head, tail, and both sides of the vehicle, and is applicable for washing 20 to 40 cars per hour.
| Model | CB-740 |
| Overall dimension | 7880*5400*4400mm or 7880*5400*5500mm |
| Installation size | 8900*6000mm (L*W), leave some space on both sides for access |
| Moving area | (18-24)*6.8m |
| Air source | Air pressure:0.75-0.9MPa(7.5-9kg/cm2) |
| Voltage | 380V, 50Hz(5-wire system) |
| Water supply | Pipe diameter: DN25, water flow ≥120L/min |
| Ground flatness | Deviation≤10mm |
| Normal washing method | Drive through type |
| Available car to wash | Container, container truck, bus truck |
| Car washing dimension | ≤3000*≤2800*≤3500mm or ≤3000*≤3900≤4400mm |
| Bus washing capacity | 25-30 cars/hour |
| Water consumption | 180-240L/car |
| Power consumption | 0.13-0.25kW/car |
| Shampoo consumption | 16-23ml |
| Long vertical brushes | 4 or 2 |
| Short vertical brushes | 0 or 2 |
| Frame | Hot-dipped galvanized steel frame |
| Brush material | Alloy steel pipe, integral nylon brush/foam brush |
| Side brush motor | SITI from Italy |
| Driving motor | SITI from Italy |
| Water pump | Youli |
| Intelligent device data | Management, checking, operation |
| Self-diagnosis | Available |
