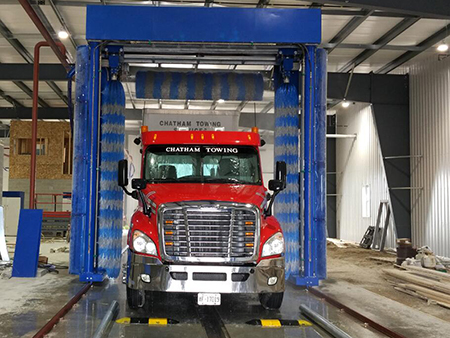

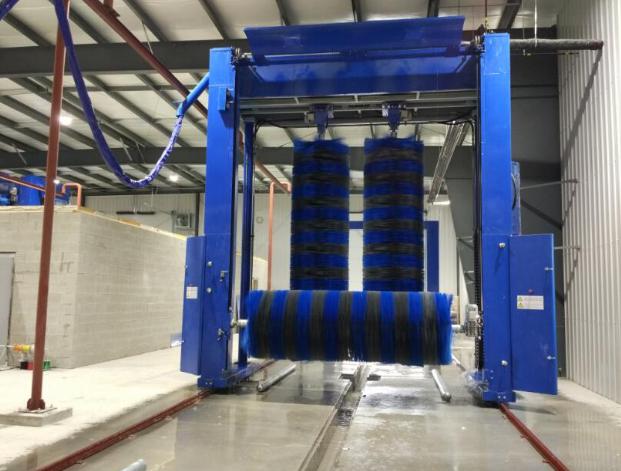

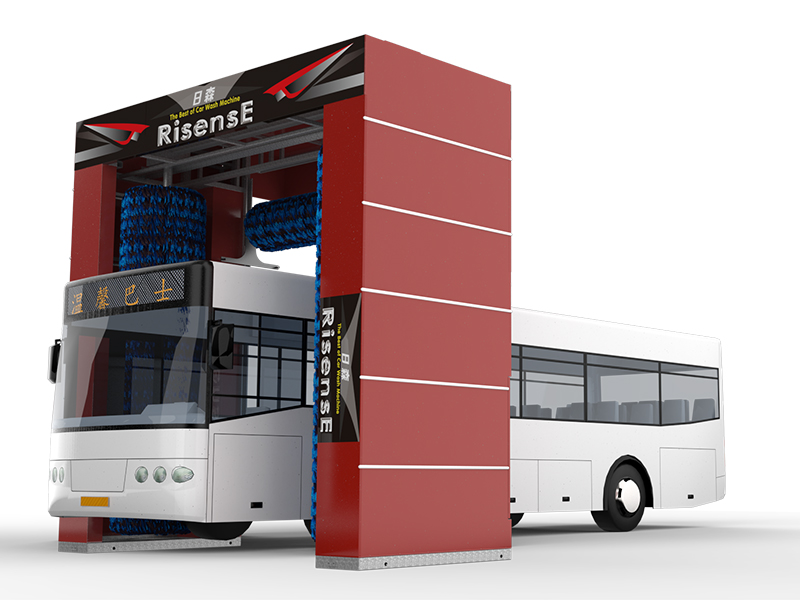

Bus/Truck Wash Equipment CB-730 (3-Brush)

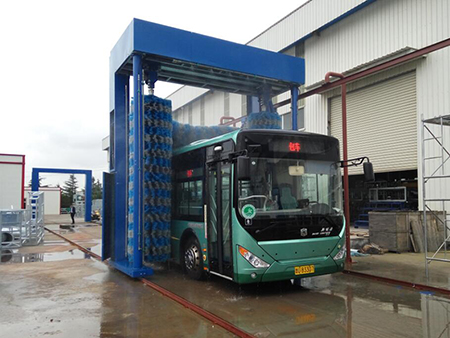

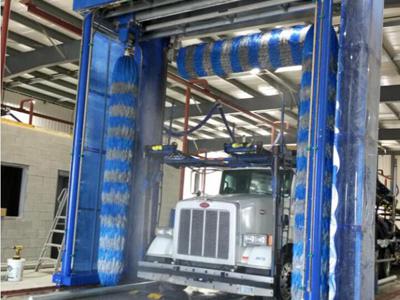

Bus wash equipment with 3 roll over brushes (CB-730) has two lateral brushes and one overhead brush. It is most often used for washing buses and trucks where the length does not exceed 18000mm, the height does not exceed 4200mm, and the width is 2700mm. During the washing process, the bus remains motionless, and the bus wash machine will move the brushes around the vehicle. Shown below is some basic information.

  • Parameters
  • Advantages
  • Details
  • Configurations
Parameters
Model CB-730
Dimension L*W*H: 2880mm×5120mm×5900mm
Assembling Range L≤24000mm×W 6800mm (necessary inspection channels are designed on two sides)
Moving Range L 1800-2400mm × W 6800mm
Voltage AC three-phase four-wire system voltage AC380V50Hz
Water Supply DN25mm water flow rate≥120L/min
Ground Flatness Deviation≤10mm
Washing method 1 rollover
Applicable Vehicles Container truck, box truck, bus
Applicable Car Dimension L≤18000mm×W 2700mm×H≤4200mm
Washing Time 12-15 cars/h
Advantages
  • Rollover washing ensures a better cleaning performance.
  • A fully automatic PLC electronic control system improves the security.
  • The high-pressure water spray system increases the washing speed.
  • The galvanized frame is extremely corrosion resistant.
Details

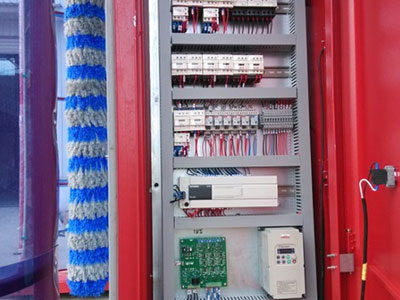

  • PLC system

    PLC system

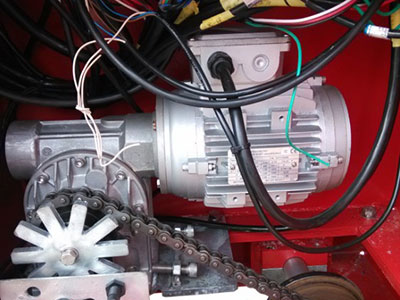

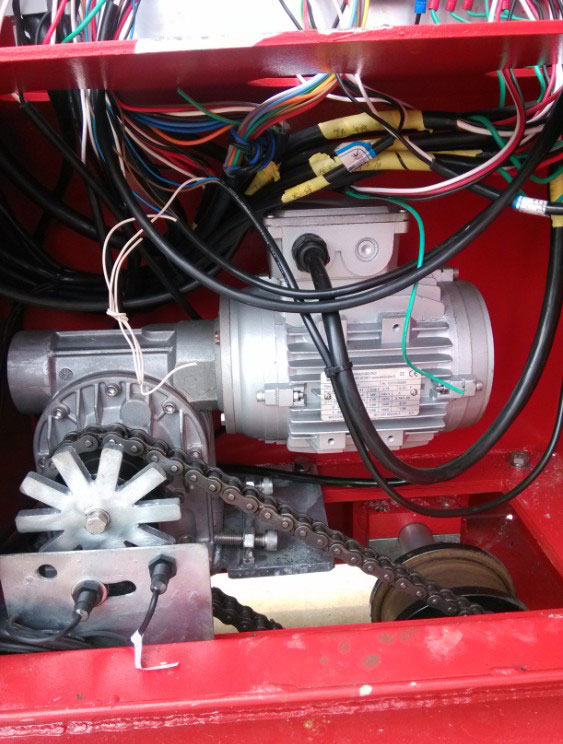

  • Drive motor

    Drive motor

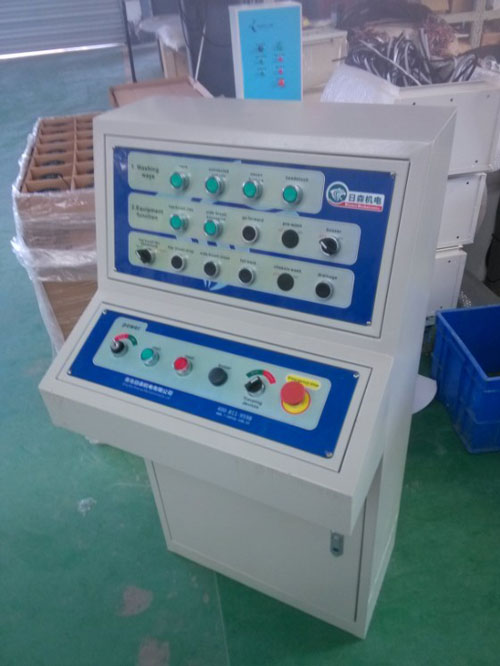

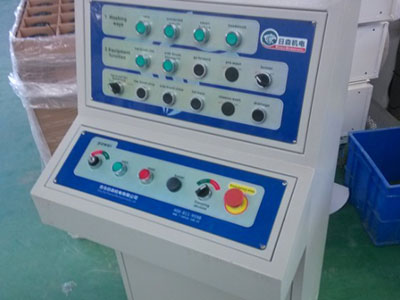

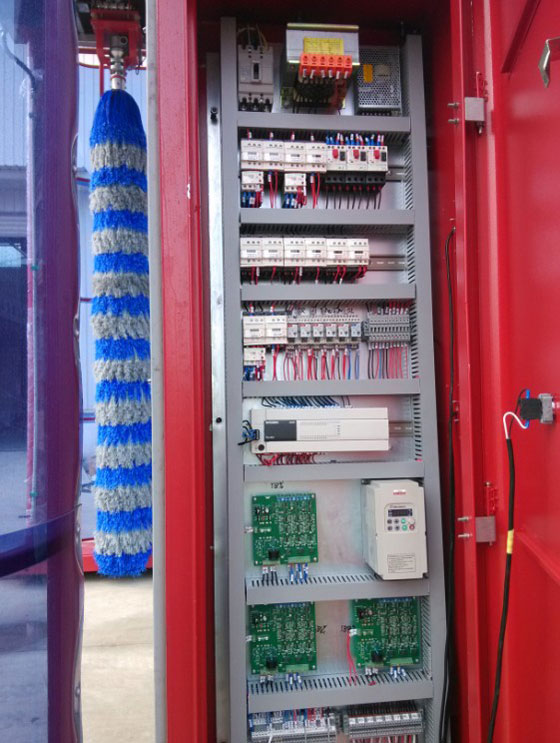

  • Control cabinet

    Control cabinet

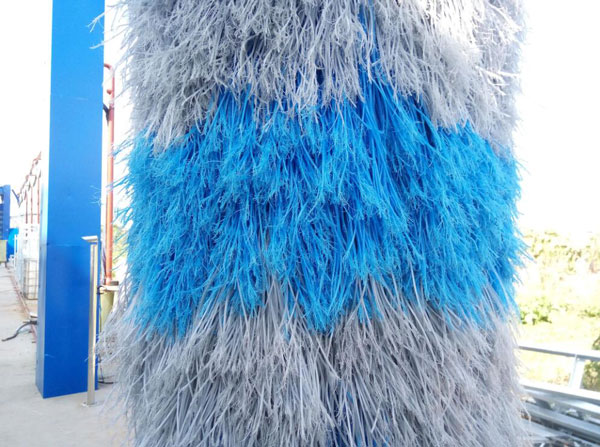

  • Nylon brush

    Nylon brush

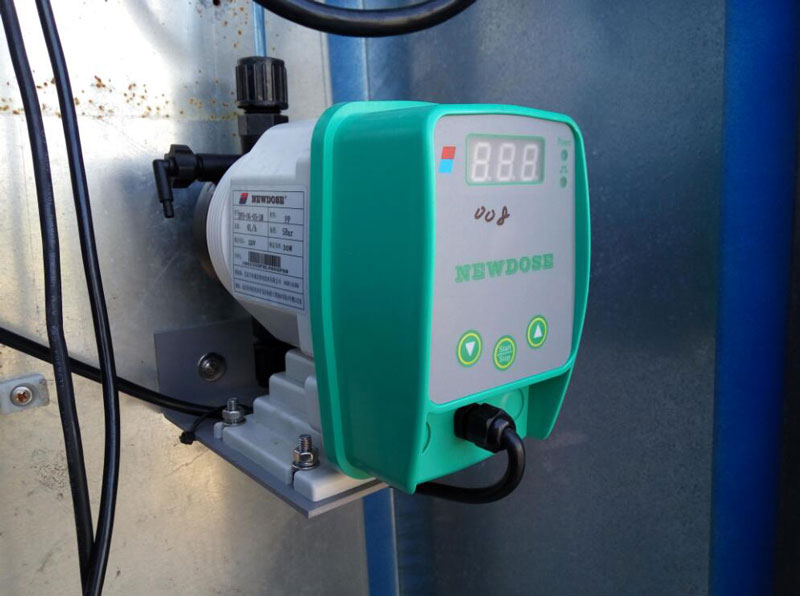

  • Metering Ppump

    Metering Ppump

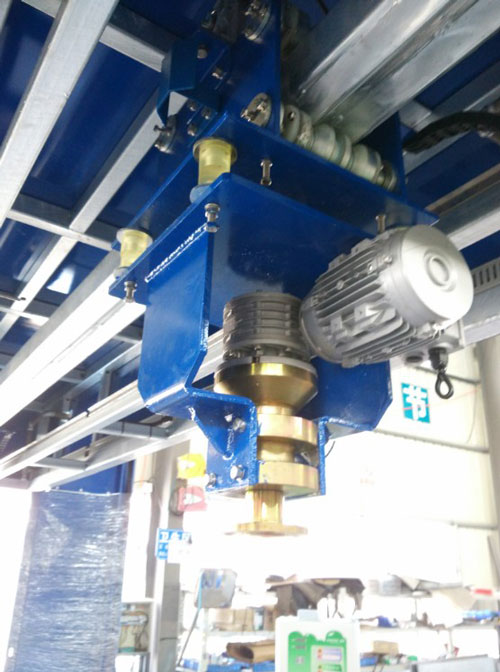

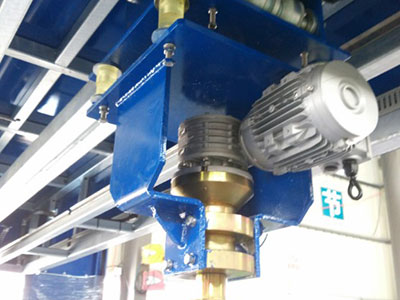

  • Motors for brushes

    Motors for brushes

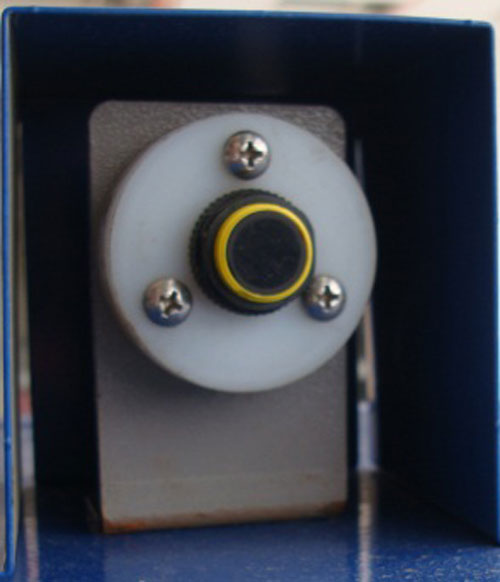

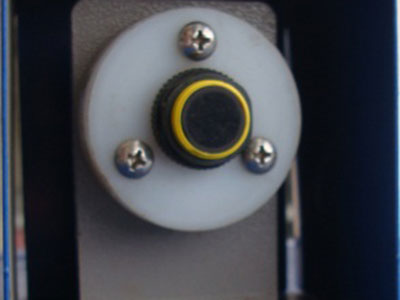

  • Photoelectric Sensor Photoelectric Sensor

    Photoelectric Sensor

    Risense’s bus wash equipment is equipped with photoelectric sensors on both sides of the entry arch and the pre-wash gantry, which enables positioning and monitoring the bus or the truck.

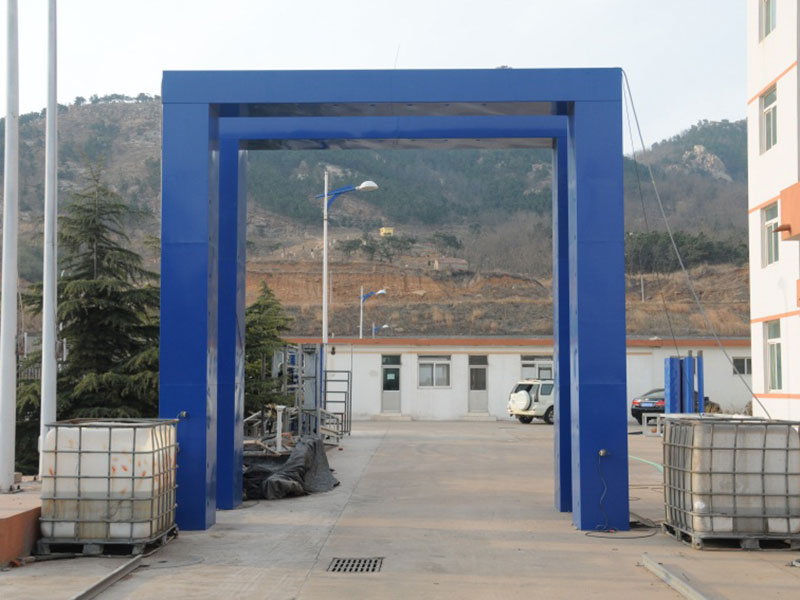

  • Pre-wash gantry

    Pre-wash gantry

    Before brush washing, the bus or the truck takes the high-pressure rinse at the pre-wash gantry. The pre-wash system consists of 24 high-pressure fan nozzles to clean the vehicle.

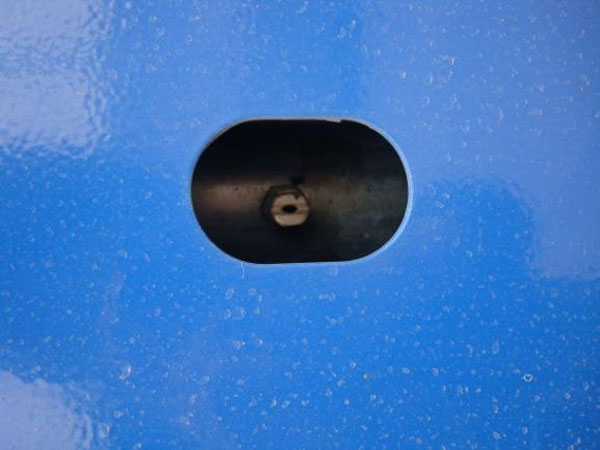

  • High-pressure nozzle

    High-pressure nozzle

    High-pressure nozzles made of special materials can produce the fan spray pattern. The combination made of 24 high-pressure fan nozzles can clean the whole vehicle body.

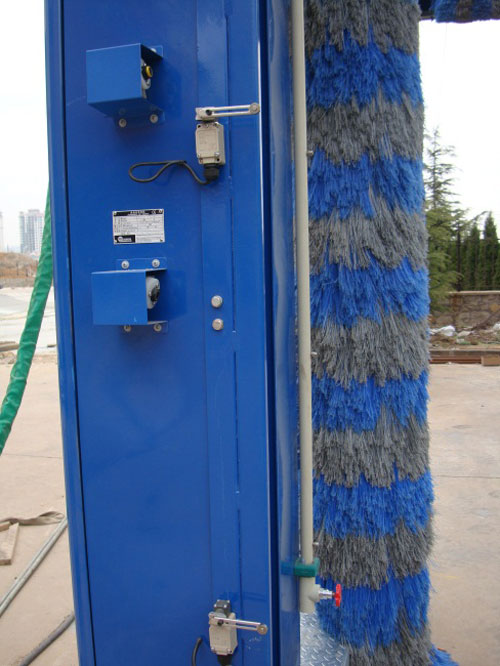

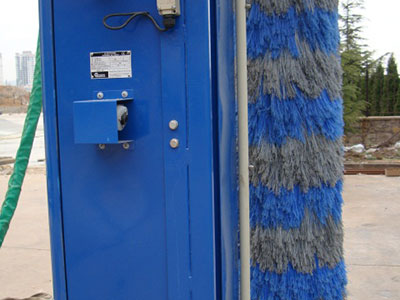

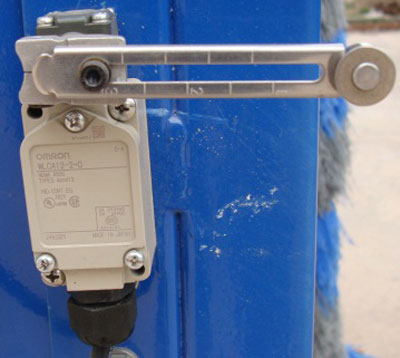

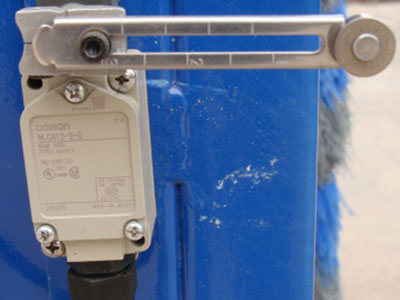

  • Limit switch Limit switch

    Limit switch

    Two sets of limit switches on the pre-wash gantry can detect and position the vehicle.

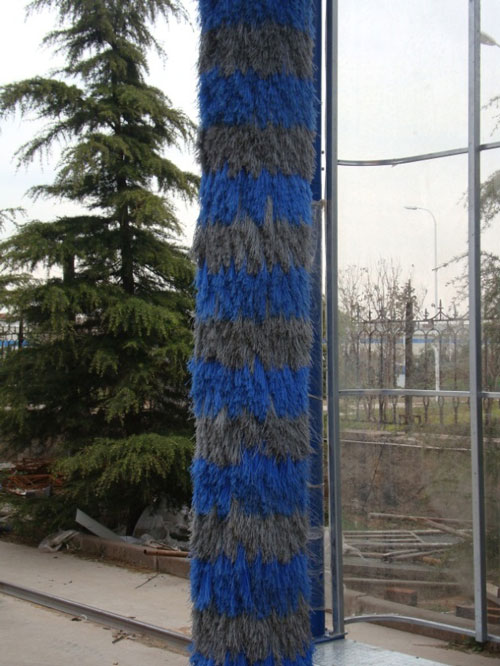

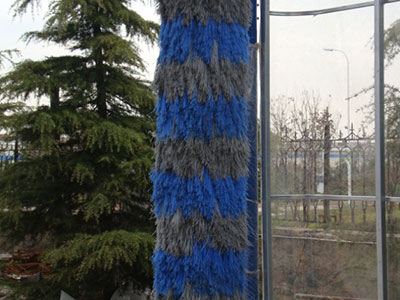

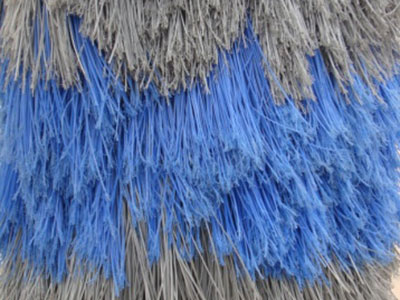

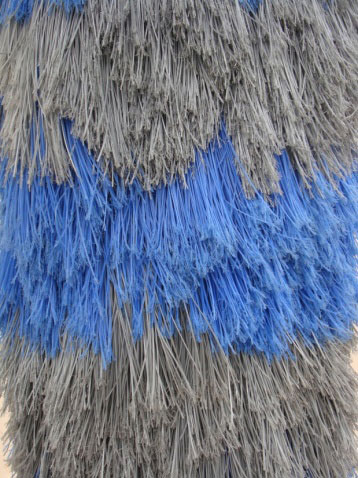

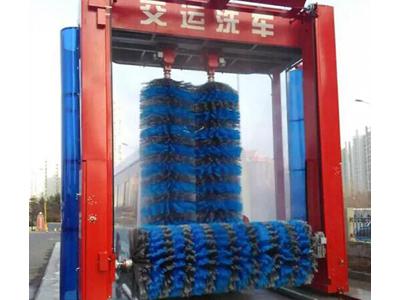

  • Brushes Brushes

    Brushes

    Brushes of the bus wash equipment made of imported upgraded nylons are soft and gentle on paintworks while having great cleaning power. They also have good capacity to wash recesses of vehicle exteriors and retain water that maximizes the cleaning effect.

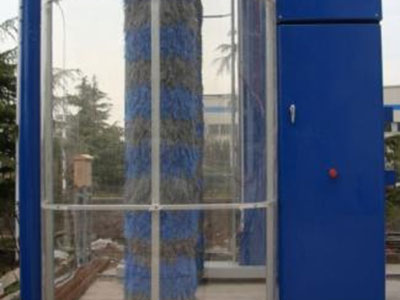

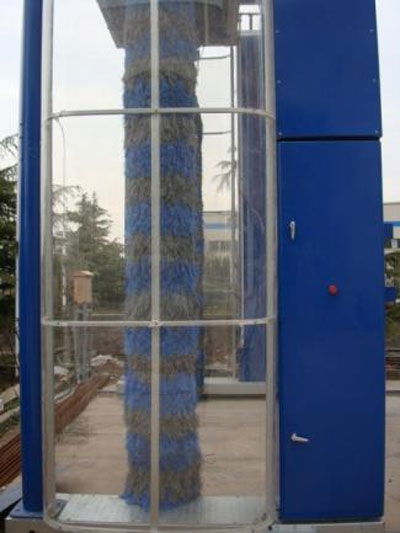

  • Splash guard

    Splash guard

    PC hollow sheet-made splash guard on both sides of the machine is a considerate design to prevent water splash. It is lightweight, strong and durable.

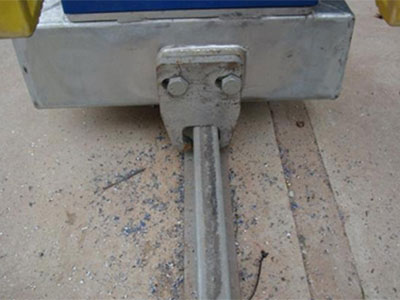

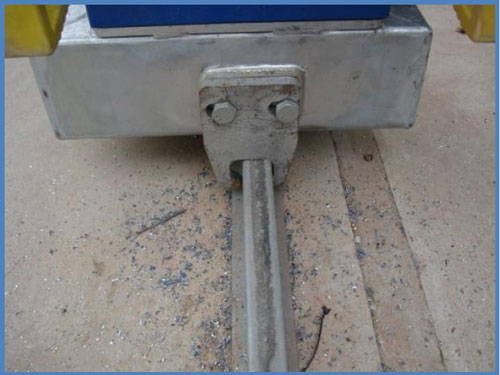

  • Anti-overturn device

    Anti-overturn device

    The anti-overturn device is particularly designed for the bus/truck wash equipment. It adopts the state-of-the-art technology to ensure the stability and safety of the equipment.

Configurations
Standard Devices
Lateral brush motor
Overhead brush motor
Water pump
Drive motor
Equipment data intellectualization
Self-diagnose system
