Truck & Bus Washing Systems

Car wash industry demand analysis

To satisfy the quick washing requirements for urban public transportation vehicles, we developed the rollover bus wash system and drive through bus wash system. The rollover bus wash equipment features 2 roller brushes or 3 brushes for customers to choose from. The drive through bus washing system features 4 or 5 brushes for customers to choose from.

Due to the large size and its basic vertical body planes, bus washing systems primarily utilize vertical or tilting rotating brushes. Through the use of high speed rotation, these brushes will fully clean the bus body, including the windows. Our bus wash system works quickly, and can be installed in bus parking lots, repair plants, charging stations and more.
    2. Bus/Truck Wash Equipment CB-720 (2-Brush)CB-720 bus/truck wash equipment is a rollover bus wash system with 2 brushes. This wash equipment is designed for washing the public vehicles and trams which have obstacles on the top. Its washing efficiency is 15 cars/hour.
    2. Bus/Truck Wash Equipment CB-730 (3-Brush)CB-730 bus/truck wash equipment is a rollover bus wash system with 2 large vertical brushes and 1 overhead brush. This wash equipment can clean the two sides, the head, the back side, and the top of busses. Its washing efficiency is 12-15 cars/hour.
    2. Drive-Through Bus Wash System CB-740 (4-Brush)CB-740 drive-through bus wash system is a rollover bus wash system with 4 brushes. It features fast cleaning so it is suitable for the users who has a large amount of bus to clean. This bus wash system can clean the two sides, the head, the back side, and the top of busses. It is ideal for the buses which have obstacles on the top. The washing efficiency of this wash system is 20-40 cars/hour.
    2. Drive Through Bus Wash System CB-750 (5-Brush)CB-750 drive through bus wash system is a rollover bus wash system with 5 brushes which provides fast cleaning and good cleaning effect. It is designed for the users who need a large amount of cleaning or have plenty of dirty buses to clean. This bus wash system provides the most comprehensive cleaning effect that it can clean the two sides, the head, the back side, and the top of busses.
Car wash flow

High pressure water prewashing-foam washing-low pressure water washing.

Parameters
Power consumption Vertical brush switch motor 0.37kw×2
Vertical brush motor 0.75kw×2
Overhead brush motor 0.75kw
Overhead brush lift motor 0.55kw
Machine drive motor 0.55kw×2
Water pump motor 4.0kw
Car Washing Applicable vehicles Bus, double-decker bus
Applicable Car Dimension L≤18000mm *W2700mm *H≤4200mm
Washing method Rollover
Time 12-15 cars/h
Cost Based on the regional water and electricity prices
Assembly Assembling Range L 21000mm× W 6580mm
Moving Range L 21000mm× W 5114mm
Voltage AC three-phase four-wire system
Water supply DN25mm water flow rate≥120L/min
Advantages

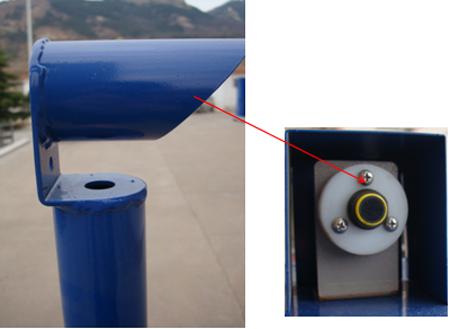

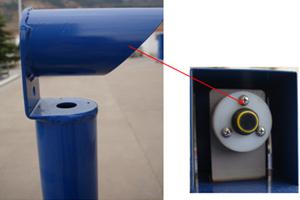

  • Photoelectric sensor
    Three pairs of photoelectric sensors are mounted on both sides of the entry and pre-washing gantry in order to accurately sense the vehicle movement position.

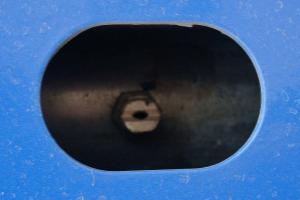

  • Special material of high pressure wash system
    The gantry pre-washing system is made from a special material that forms a fan nozzle. 24 high pressure spray nozzles surround the body for a complete wash performance.

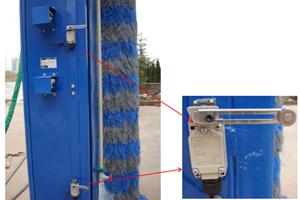

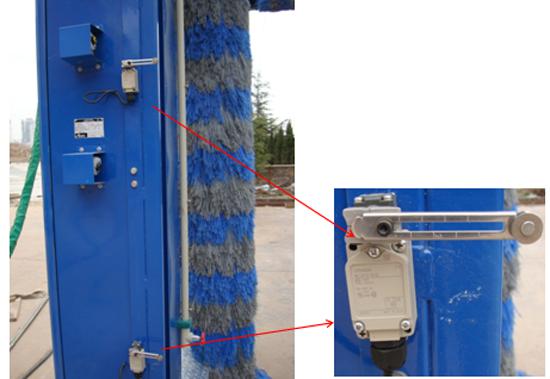

  • Limit switch
    The gantry pre-washing device is equipped with two pairs of limit switches to accurately sense the car movement positions.

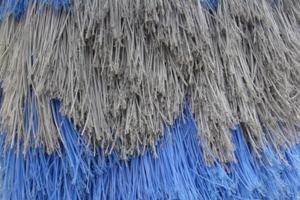

  • Brushes
    Brushes on our bus washing equipment are made of high quality nylon. These brushes are soft and harmless to car paint, without sacrificing the cleaning performance or water absorption performance.

Bus wash machine recommendation

This series of bus washing equipment is suitable for the cleaning of trucks, buses and other oversized vehicles. In addition to these systems, other car wash systems are available.
