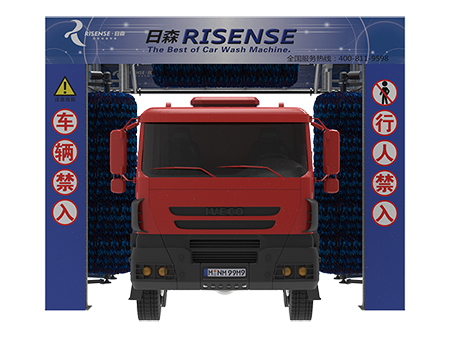

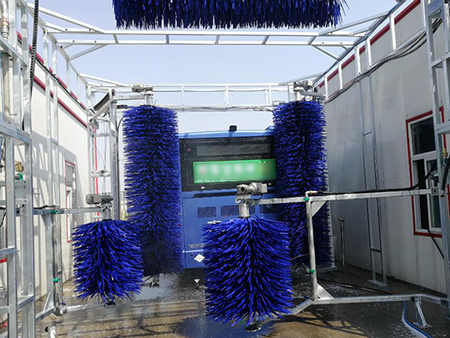

Drive Through Bus Wash System (5-Brush)

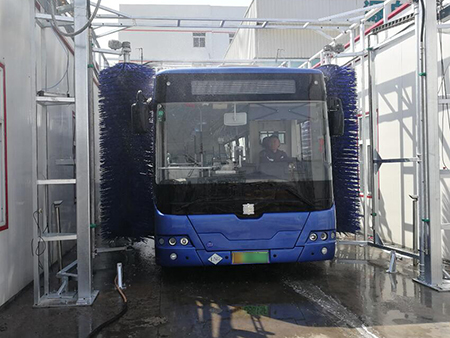

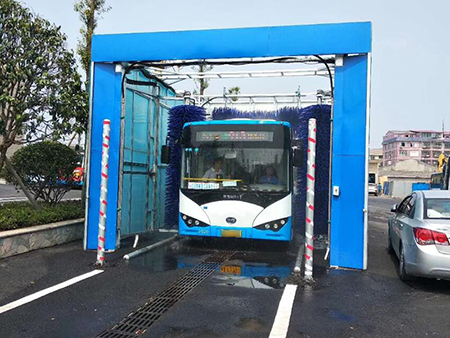

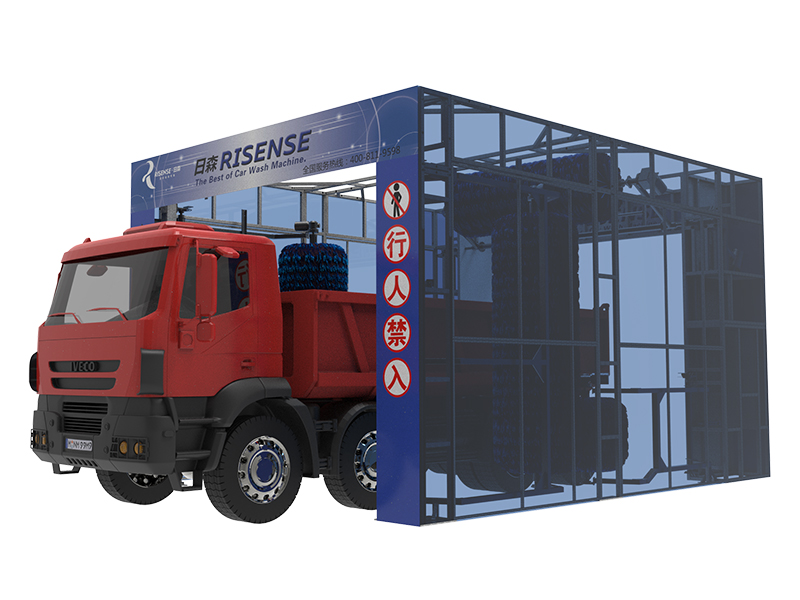

The drive through bus wash system with 5 brushes (CB-750) features a PLC fully-automatic computer system to improve the security and high pressure water system, which increases the washing speed. The bus system washes both buses and trucks using 4 lateral brushes and 1 overhead brush. Further details are shown in the table below.

  • Parameters
  • Advantages
  • Details
  • Configurations
Parameters
Model CB-750
Dimension L*W*H: 7210mm×5400mm×5500mm
Assembling Range L*W: 8000×6000mm
Air pressure 0.75~0.9MPa（7.5~9kg/cm²）
Voltage AC three-phase four-wire system
Voltage AC380V50Hz
Water supply DN25mm water flow rate≥120L/min
Ground flatness Deviation≤10mm
Washing method Drive through
Applicable Vehicles Container truck, box truck, bus
Applicable Car Dimension L (no limit) W≤3000mm H=3250mm
L (no limit) W≤3000mm H=4400mm
Washing Time 15-30 cars/h
Water consumption 180-240L/car
Advantages
  • The fully automatic PLC electronic control system improves the security.
  • A high pressure water system increases the washing speed.
  • The galvanized frame is extremely corrosion resistant.
  • A built in self-diagnosing system automatically detects and removes mechanical obstacles during the washing process.
Details

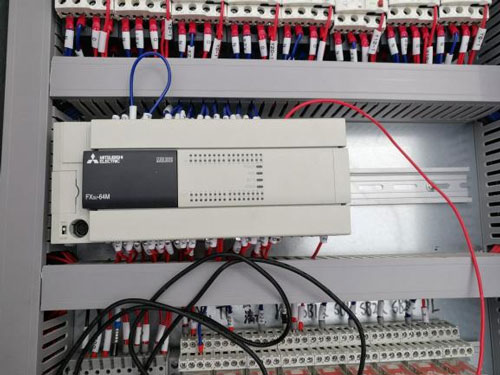

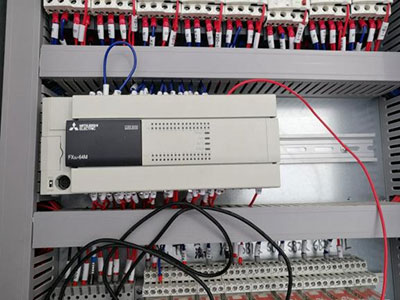

  • PLC system

    PLC system

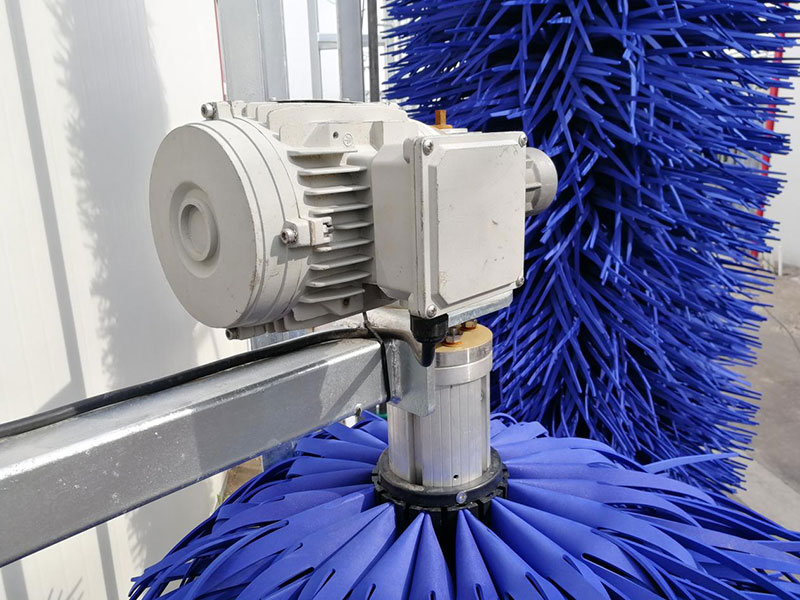

  • SITI motor for brushes

    SITI motor for brushes

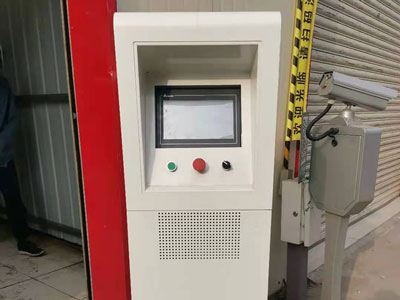

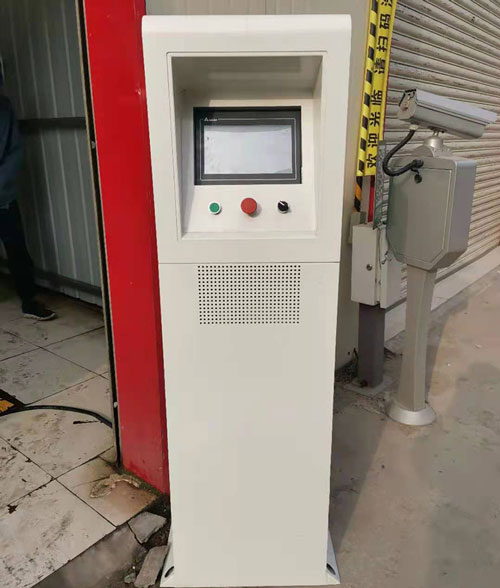

  • Touch screen

    Touch screen

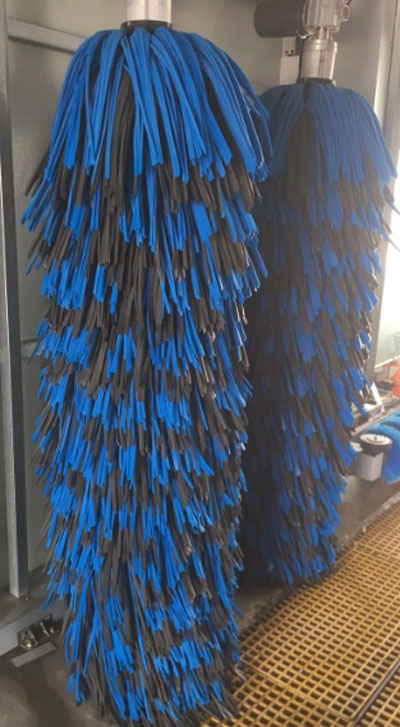

  • Foam brushes

    Foam brushes

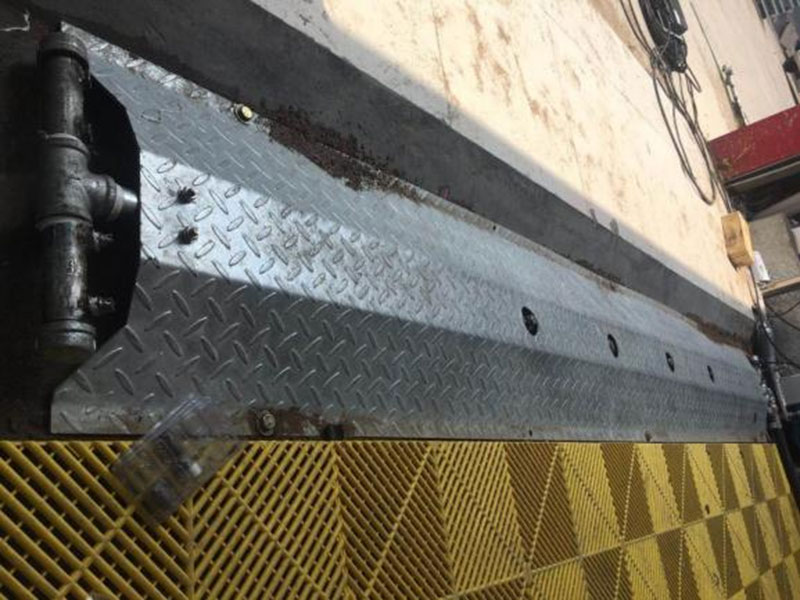

  • Undercarriage wash system

    Undercarriage wash system

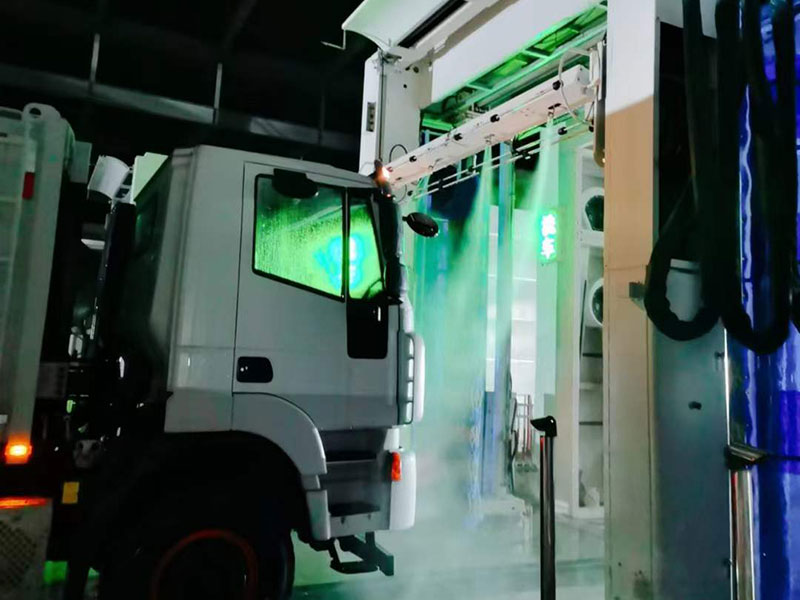

  • Pre-wash gantry

    Pre-wash gantry

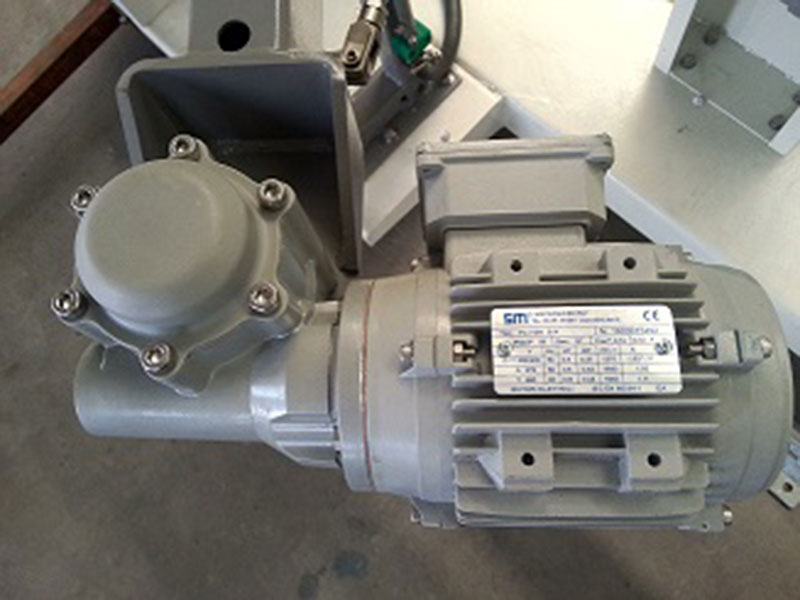

  • Motor for brushes

    Motor for brushes

    SITI motor performs well in terms of water-proofing and service life.

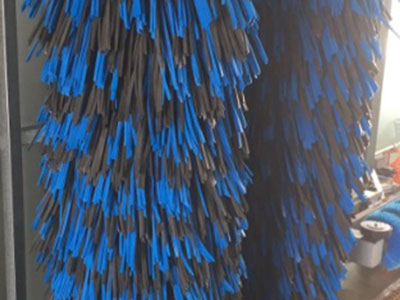

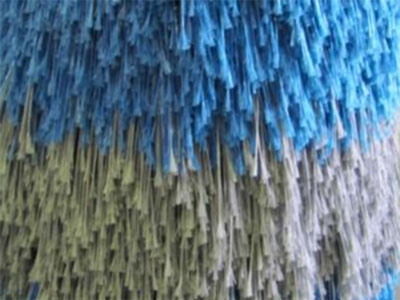

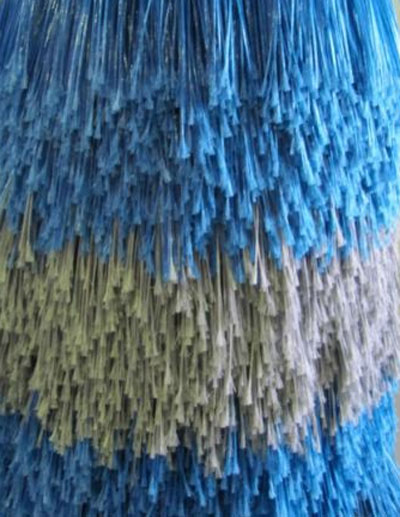

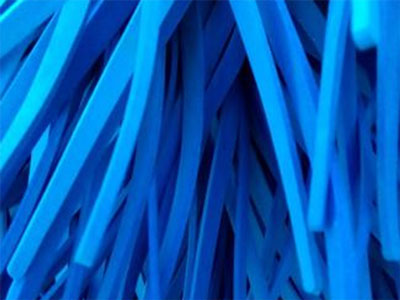

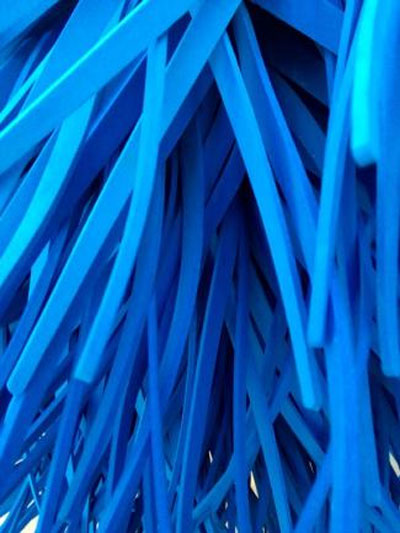

  • Foam/nylon brushes Foam/nylon brushes

    Foam/nylon brushes

    5 brushes of Risense’s bus wash system are made of imported 4th generation of foam or nylons. They thus have the advantage of softness, gentleness and cleanness. Its capacity to retain water optimizes the washing performance.

Configurations
Standard Devices
Lateral brush motor
Overhead brush motor
Water pump
Drive motor
Equipment data intellectualization
Self-diagnose system
