    Rollover Car Wash Machine
    Vehicle Washing Machine Manufacturer
    • Home
    • Vehicle Washing Machine
    • Automatic Car Wash System
    • Rollover Car Wash Systems
    • Rollover Car Wash Machine CF-340

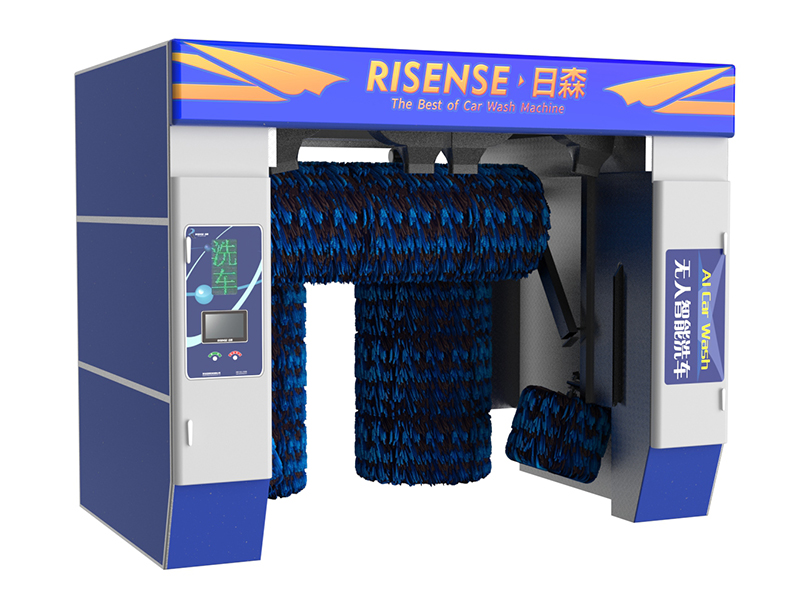

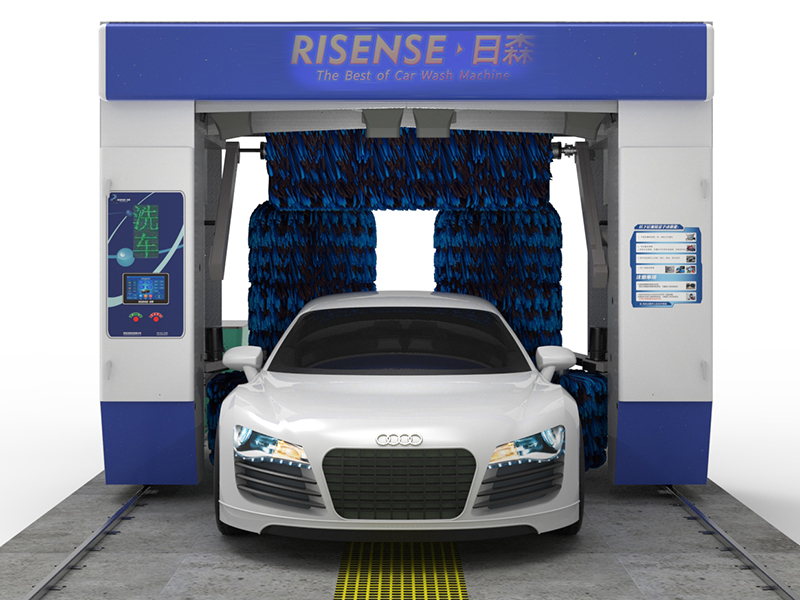

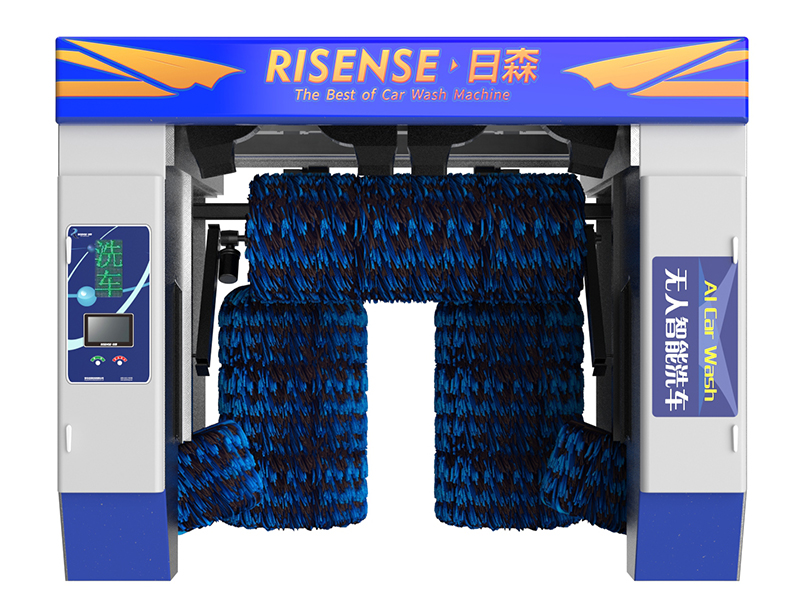

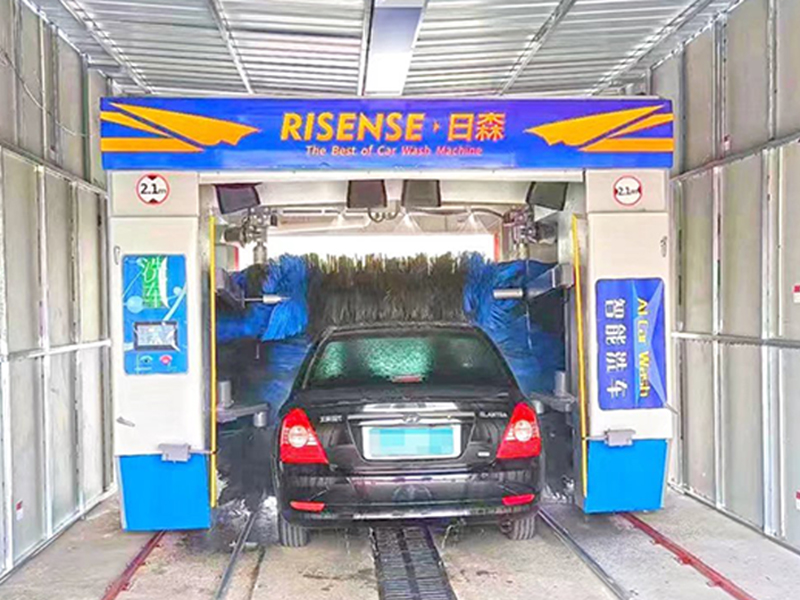

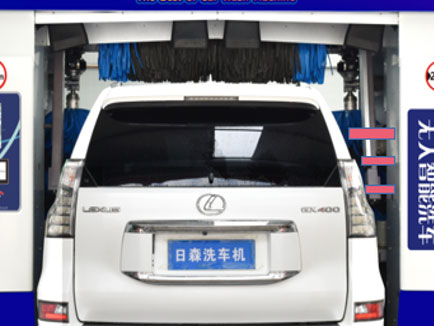

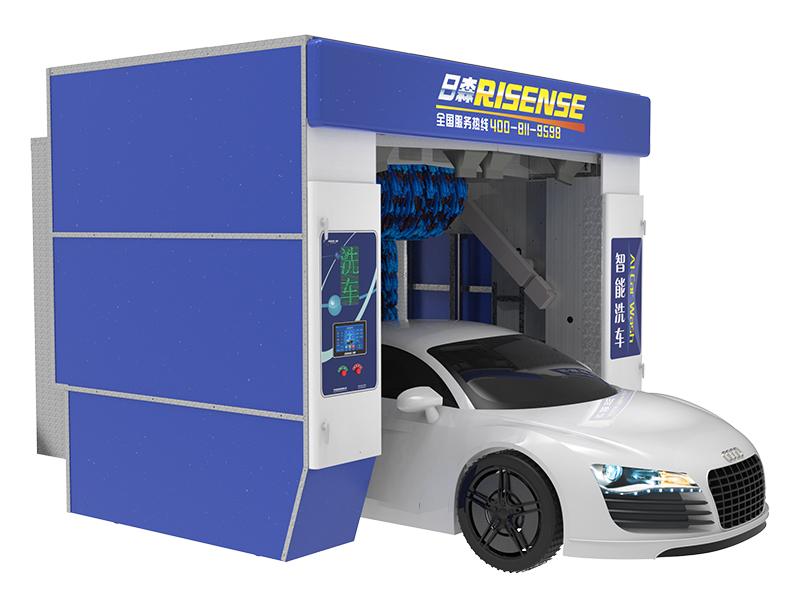

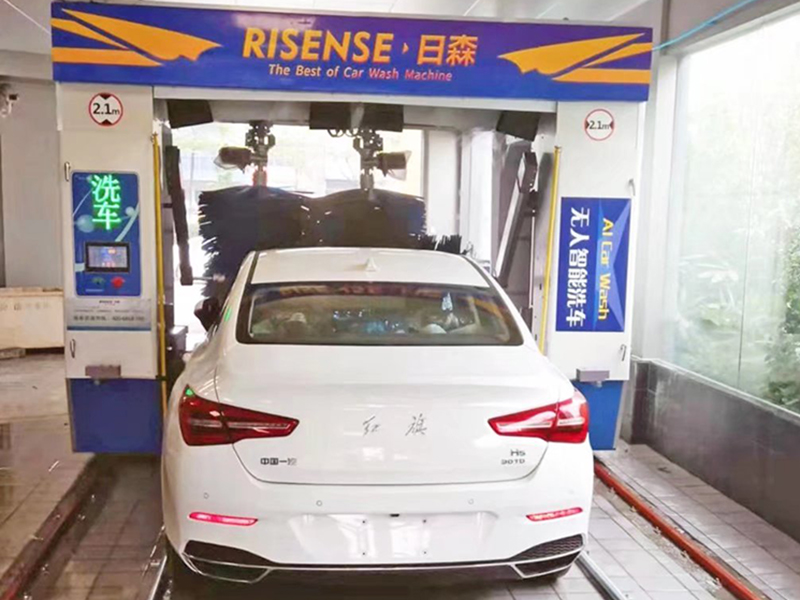

    Rollover Car Wash Machine

    CF-340

    Rollover Car Wash Machine

    CF-340 Rollover car wash machine is a highly cost-effective choice for rollover car washing. This car wash system is equipped with corrosion-resistant ZCF alloy bending frame; 4 sets of powerful and silent fixed blower dryer, with large blowing rate, high drying performance, low noise and eco-friendliness; low error rate, error code and cause display, convenient for troubleshooting.

    Request a Quote
    • Rollover Car Wash Machine
    • Rollover Car Wash Machine
    • Rollover Car Wash Machine
    • Rollover Car Wash Machine
    • Rollover Car Wash Machine
    • Parameters
    • Features
    • Advantages
    • Details
    • Car washing process
    Technical Parameter
    Model CF-340
    Overall dimension 2610*3600m*2815mm
    Rail: 9000*3200mm
    Installation size 10870*4300*3200mm
    Voltage AC 380V 50Hz (total power: 21.53kW)
    Water supply Pipe diameter: DN25, water flow≥80L/min
    Air-source pressure 0.75-0.8Mpa
    Ground flatness Deviation≤10mm
    Available car to wash Light 4-wheeled vehicle, medium-sized car, coach within 7 seats
    Moving range 5200*2100(mirror folding)*2100mm
    Car wash capacity One rollover: 2'58'', two rollovers: 4'48''
    Water consumption 75-115L/car
    Power consumption 0.3-0.5kWh/car
    Shampoo consumption 10ml/set
    Wax consumption 15ml/set
    Short vertical brushes 2
    Long vertical brushes 2
    Top brush 1
    Configuration
    Frame ZFC alloy steel hot-dipped galvanized steel frame
    Control system MCU (Risense)
    Optoelectronic monitoring Banner from the USA
    Proximity Switch PEPPERL FUCHS from Germany
    Contactor Schneider from France
    Solenoid valve Pinguan
    Thermal relay Schneider from France
    MCCB Schneider from France
    Motor protector Schneider from France
    Intermediate relay Honeywell from the USA
    Elevating motor with brake SITI
    Brush rotating motor SITI
    Features
    • Fully automatic PLC control system
    • Leaned vertical brushes to fit and cover the car.
    • Automatic foam and water wax mixing system.
    • Touch-screen control, user-friendly UI, convenient for car washing, system maintaining and data viewing.
    Advantages
    • Rollover Car Wash Machine CF-340

      Scan QR code to start washing, unattended operation
      Scan QR code to select suitable washing mode, follow the instruction to get prepared, then start car-washing, very convenient operation.

    • Rollover Car Wash Machine CF-340

      4-th gen opto-electronic sensor technology
      The car is scanned by the opto-electronic sensor with high precision before entering the washing system, gets its shape measured for PLC to manipulate the top brush.

    • Rollover Car Wash Machine CF-340

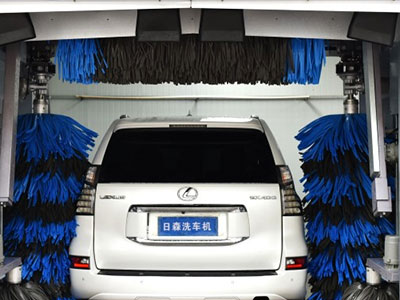

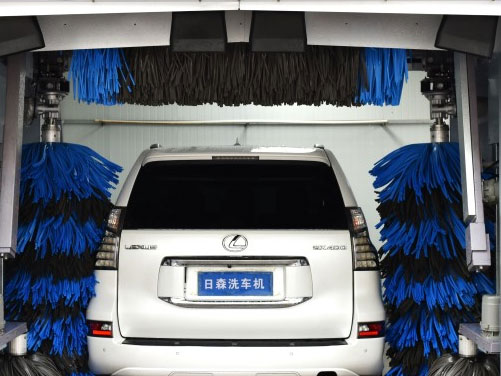

      Top brush fixed on double arm
      Top brush is moved with double arm. The brush gets lifted by air cylinder, moves down by free falling via adjusting counterweight. By contact and interact between rotating top brush and the car, the top brush keeps fitting the shape of the car roof and washing efficiently.

    Details

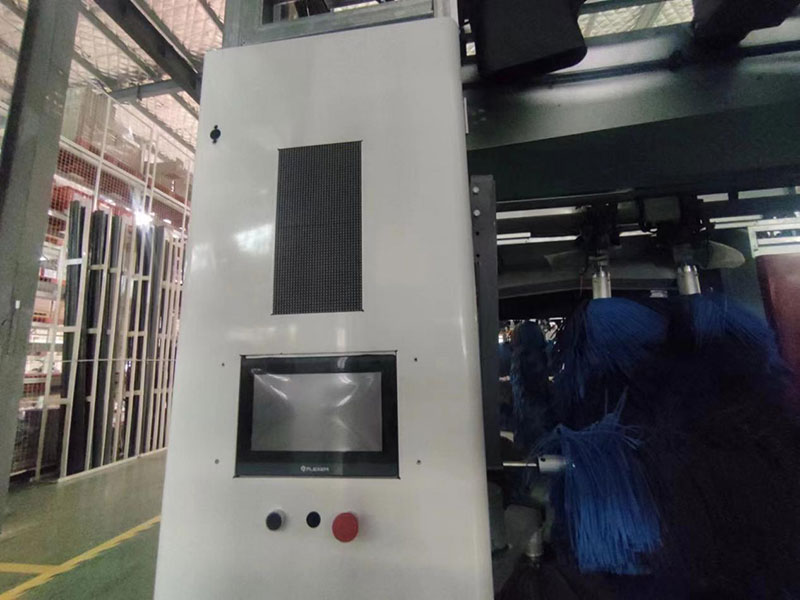

    • Control panel

      Control panel

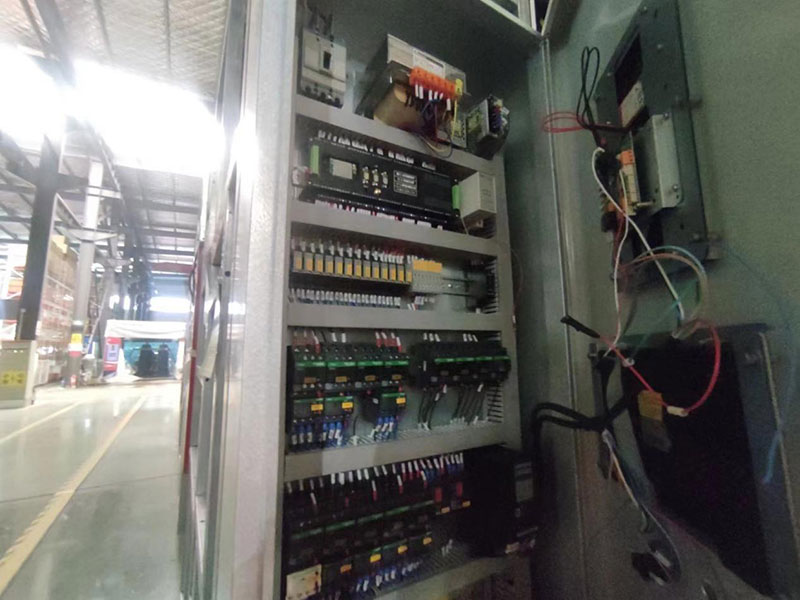

    • MCU control system

      MCU control system

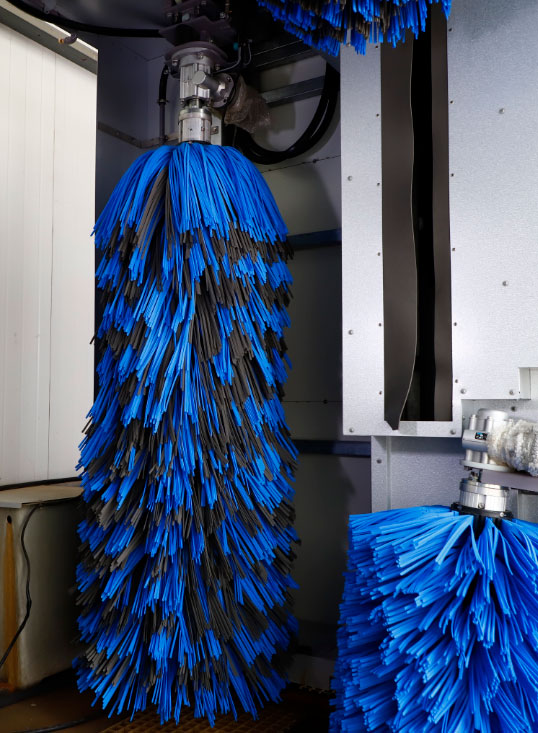

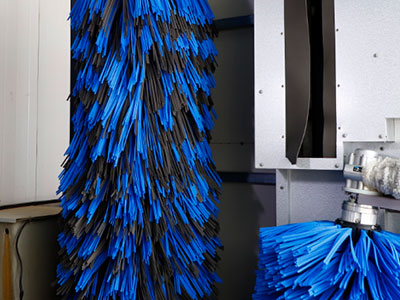

    • Foam brushes

      Foam brushes

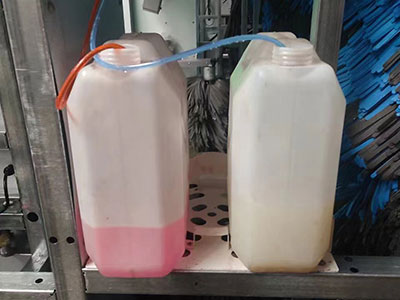

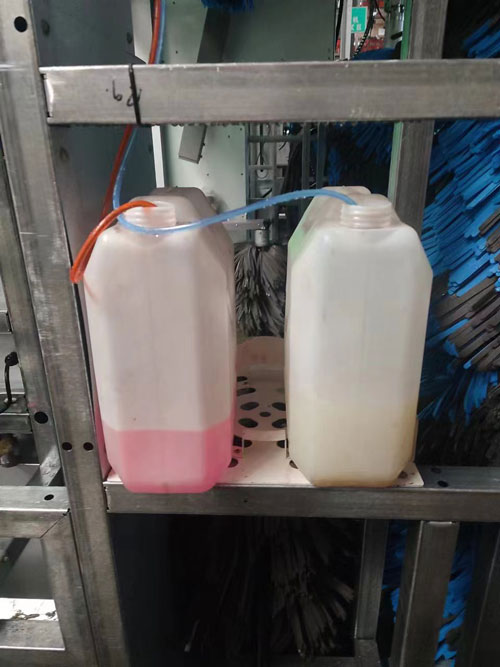

    • Shampoo and wax sprinkling

      Shampoo and wax sprinkling

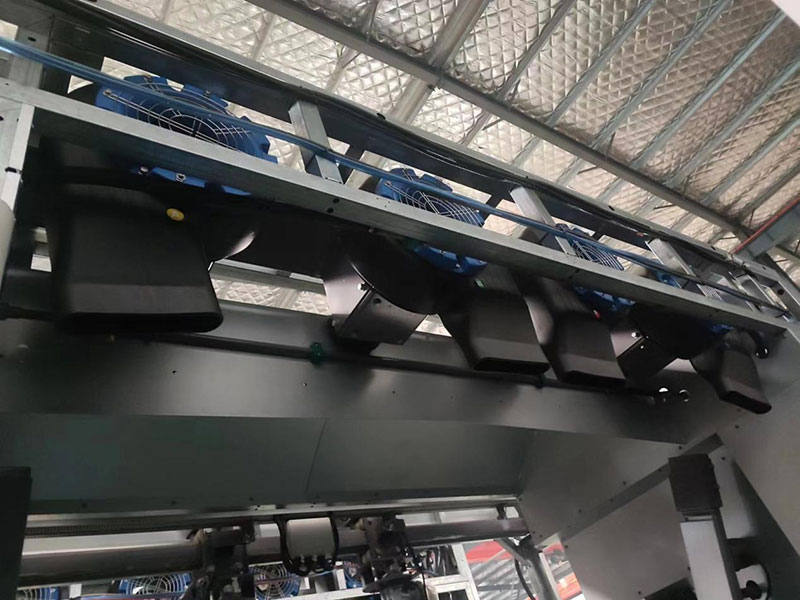

    • 4 powerful air dryer

      4 powerful air dryer

    Car washing process

    Pre-wash --- foaming --- brushing --- water spraying --- water wax spraying --- drying
