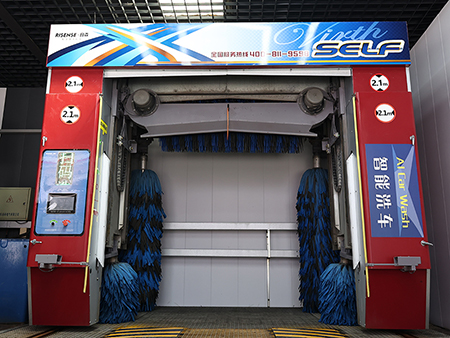

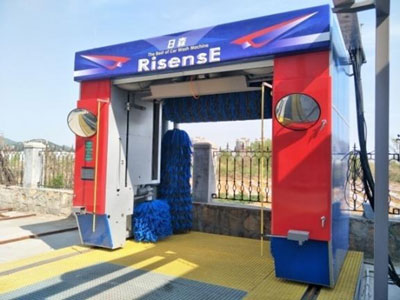

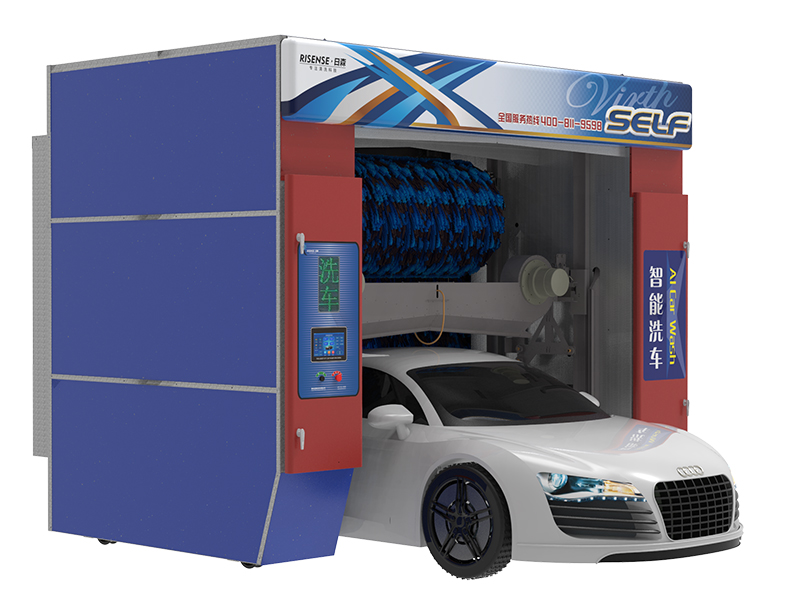

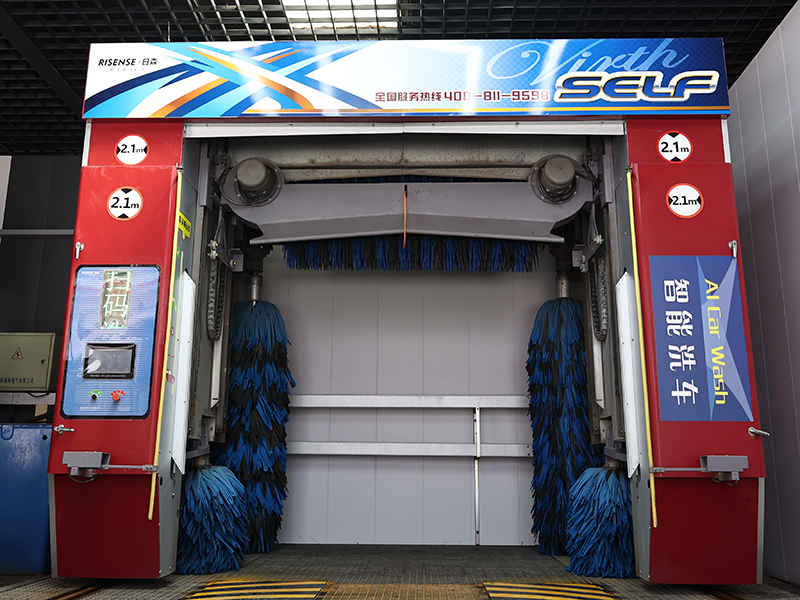

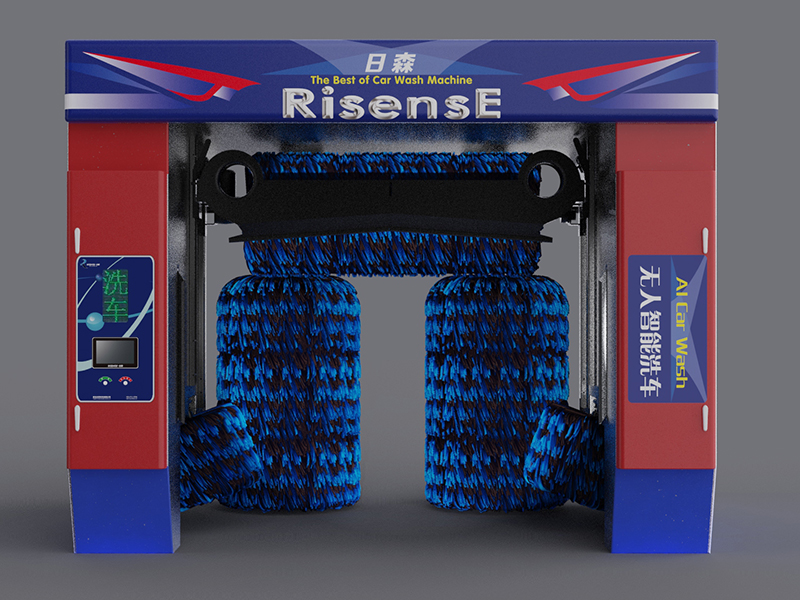

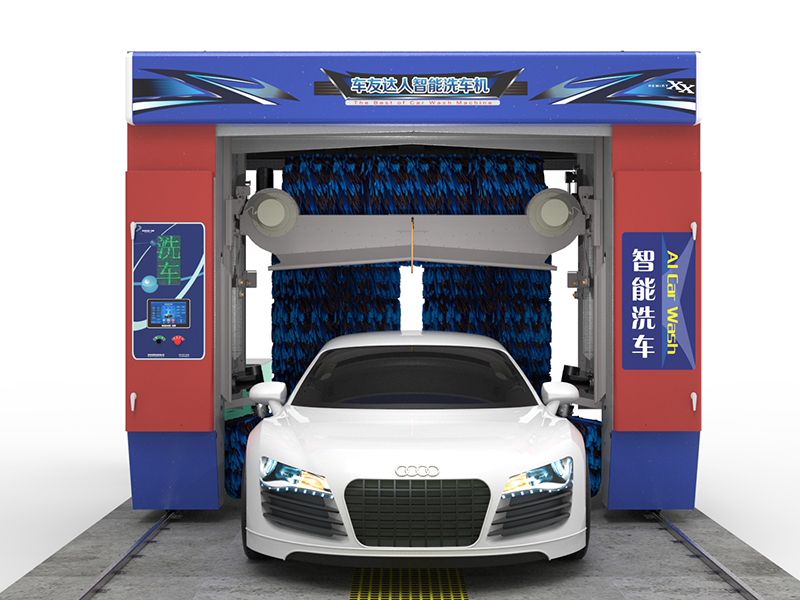

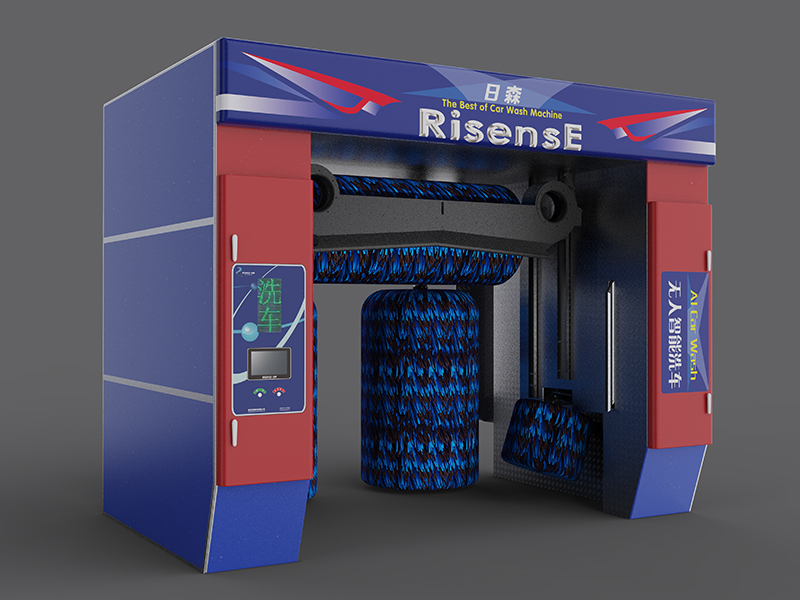

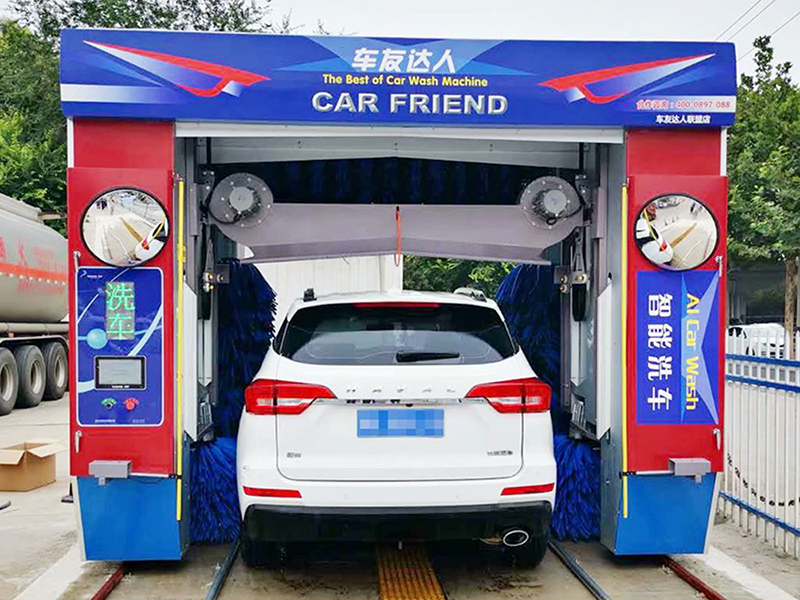

    Rollover Car Wash Machine

    CF-360 (EU Type)

    Rollover Car Wash Machine

    The car wash system EU type (CF-360) is a car wash machine with tire brushes, which clean the tires during the washing process, improving the car washing completeness. The double powerful mute dryers are used to increase the drying performance. The table below shows the basic information about the car wash system EU type.

    Request a Quote
    • Rollover Car Wash Machine
    • Rollover Car Wash Machine
    • Rollover Car Wash Machine
    • Rollover Car Wash Machine
    • Rollover Car Wash Machine
    • Parameters
    • Advantages
    • Details
    • Configurations
    Technical Parameter
    Model CF-360
    Overall dimension 2400*3600*2900mm
    Rail: 9000*3200mm
    Installation size 10000*4300*3200mm
    Voltage AC 380V 50Hz (total power: 17.96KW)
    Water supply Pipe diameter: DN25, water flow≥80L/min
    Air-source pressure 0.75-0.9Mpa
    Ground flatness Deviation≤10mm
    Available car to wash Car/jeep/coach within 10 seats
    Moving range 5400*2100 (mirror folding)*2100m
    Car wash capacity One rollover: 3'20'', two rollover : 7'10''
    Water consumption 72-95L/car
    Power consumption 0.46-0.70kWh/car
    Shampoo consumption 10ml/set
    Wax consumption 15ml/set
    Short vertical brushes 2
    Long vertical brushes 2
    Top brush 1
    Configuration
    Frame ZFC alloy steel hot-dipped galvanized steel frame
    Brush material The 4th-generation foam brush
    Control system MCU (Risense)
    Optoelectronic monitoring Banner from the USA
    Proximity switch Pepperl +Fuchs from Germany
    Contactor Siemens from Germany
    Solenoid valve Pinguan
    Thermal relay Schneider from France
    MCCB Schneider from France
    Motor protector Schneider from France
    Intermediate relay Honeywell from the USA
    Elevating motor with brake SITI
    Brush rotating motor SITI
    Advantages
    • Fully automatic: microcontroller unit (MCU) ensures high efficiency and low failure rate, and allows for remote upgrading.
    • The corrosion resistance of the galvanized door-shaped frame of the vehicle washing equipment is the 10-20 times that of hot galvanized plate, increasing the service life.
    • Two powerful air mute dryers can follow contours of vehicles to improve the drying effect.
    • Foam and water wax proportioning system is easy to operate.
    • Two-Click washing method simplifies operation.
    • Built-in self-diagnose system can recognize and remove obstacles during car washing.
    Details

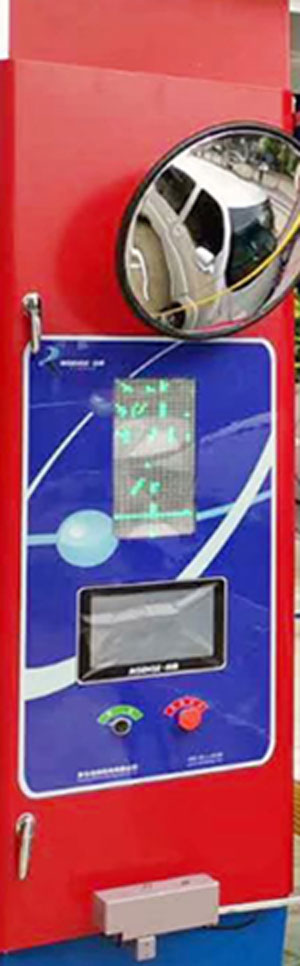

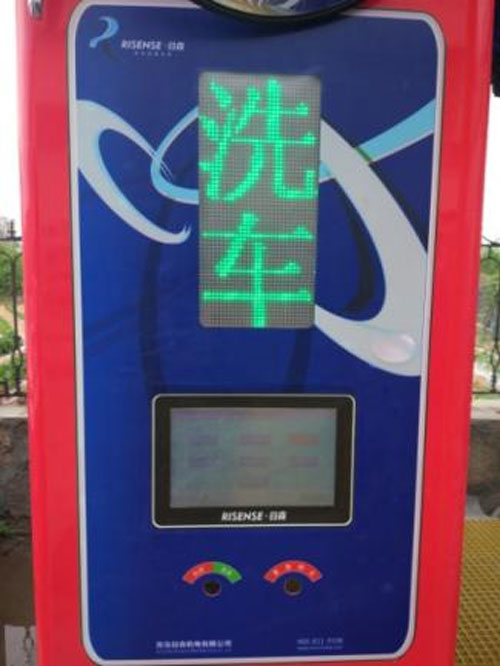

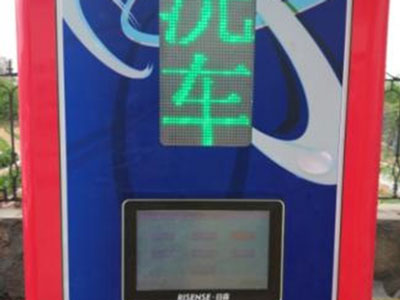

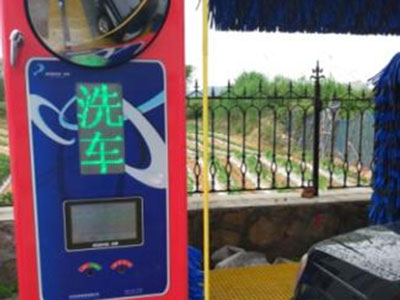

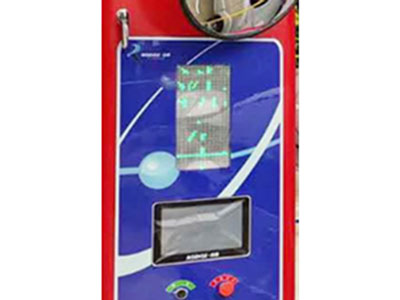

    • Control panel

      Control panel

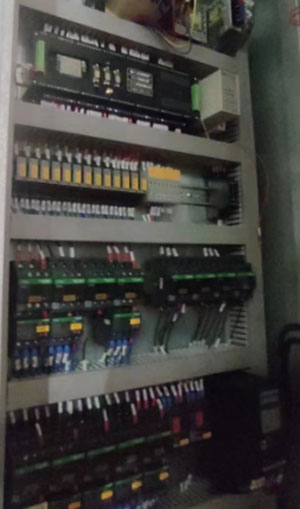

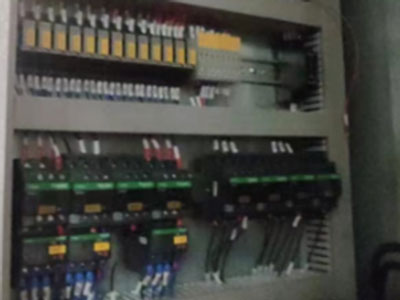

    • MCU control system

      MCU control system

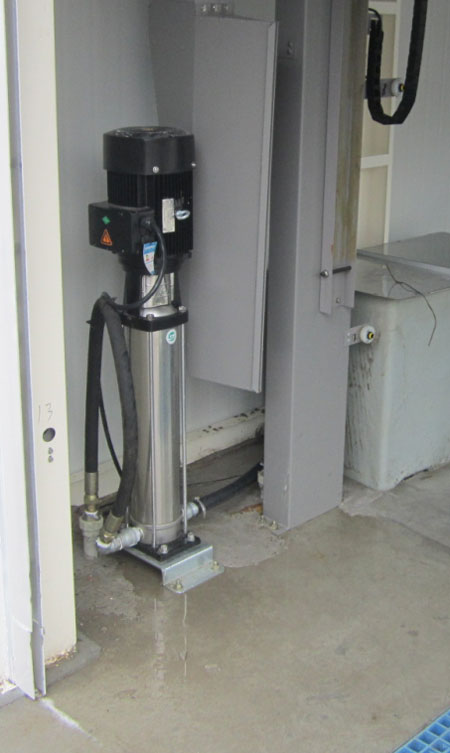

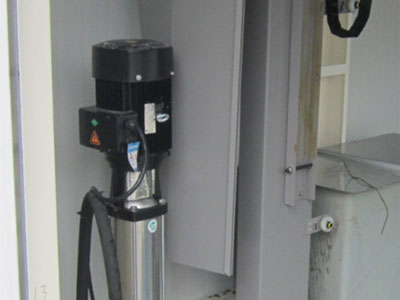

    • High pressure pump

      High pressure pump

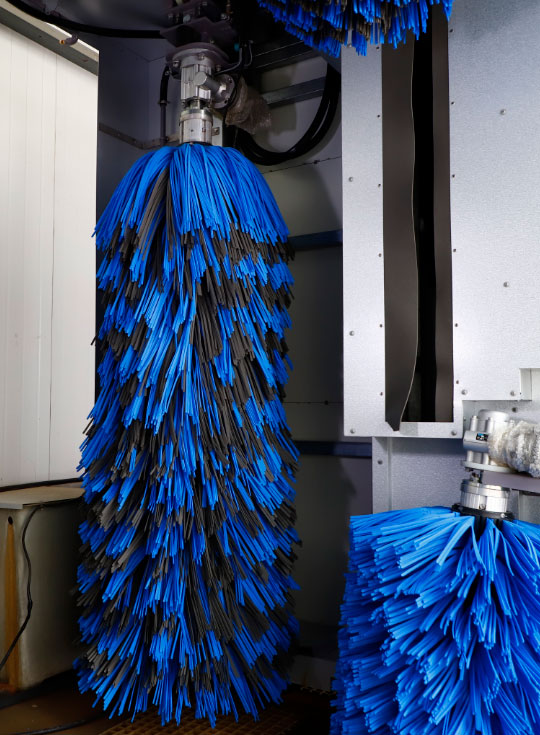

    • Foam material brush

      Foam material brush

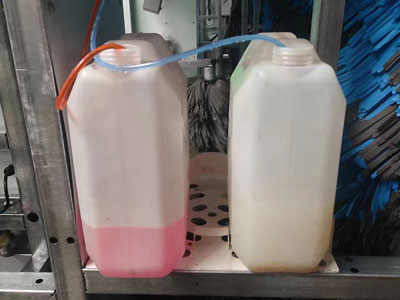

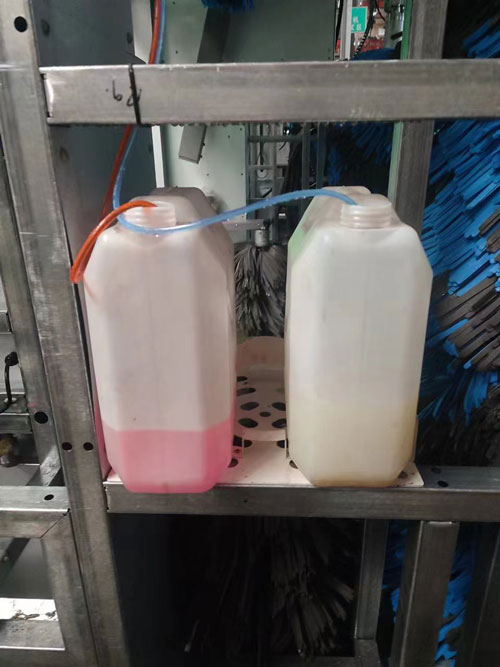

    • Car shampoo and wax sprinkling

      Car shampoo and wax sprinkling

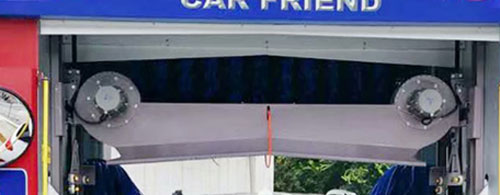

    • Air dryer – the contour-following drying system dries cars of any shapes

      Air dryer – the contour-following drying system dries cars of any shapes

    • Device equipped to get car exterior information

      Device equipped to get car exterior information

    • LED screen

      LED screen

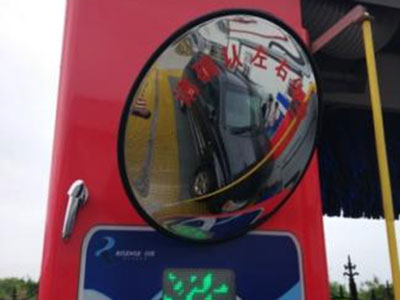

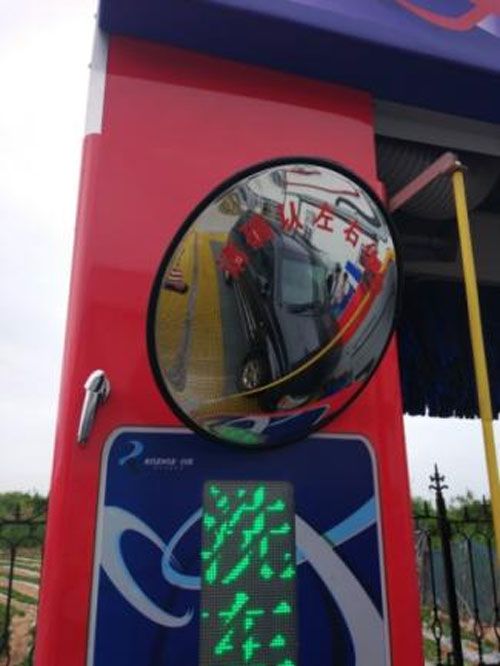

    • Convex mirror

      Convex mirror

    • Anti-collision poles

      Anti-collision poles

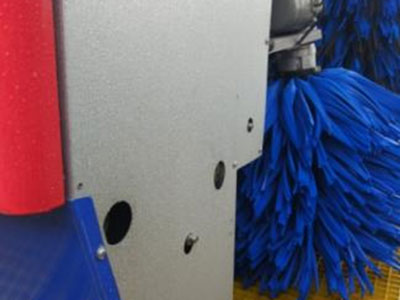

    • Photoelectric sensor

      Photoelectric sensor

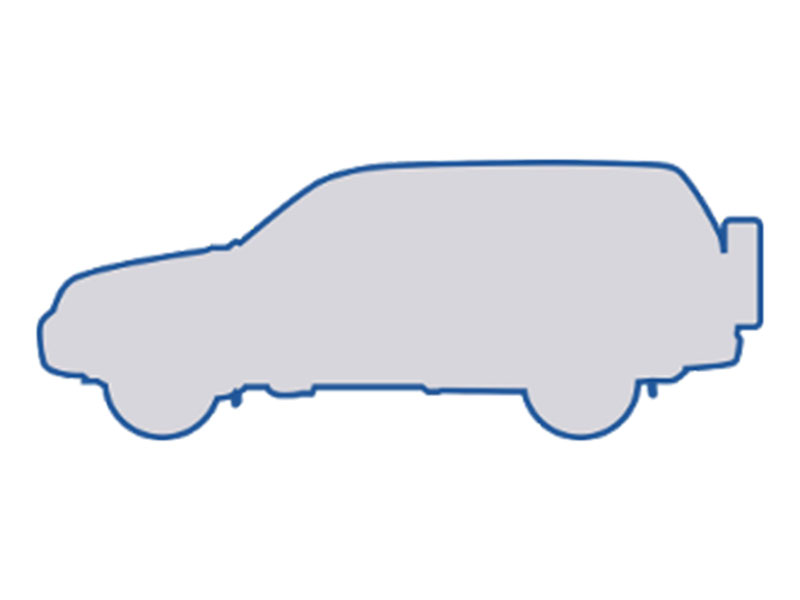

    • 4th generation of photoelectric technology

      4th generation of photoelectric technology

      The 4th generation of photoelectric technology helps scan the car and collect the information of car bodies before cars get in the car wash machine. The motion of top brushes is calculated by the PLC system and is thus smooth, steady and free from external interference.

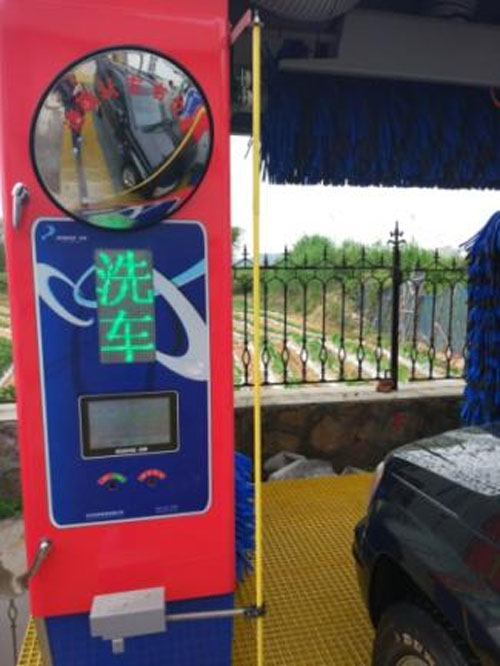

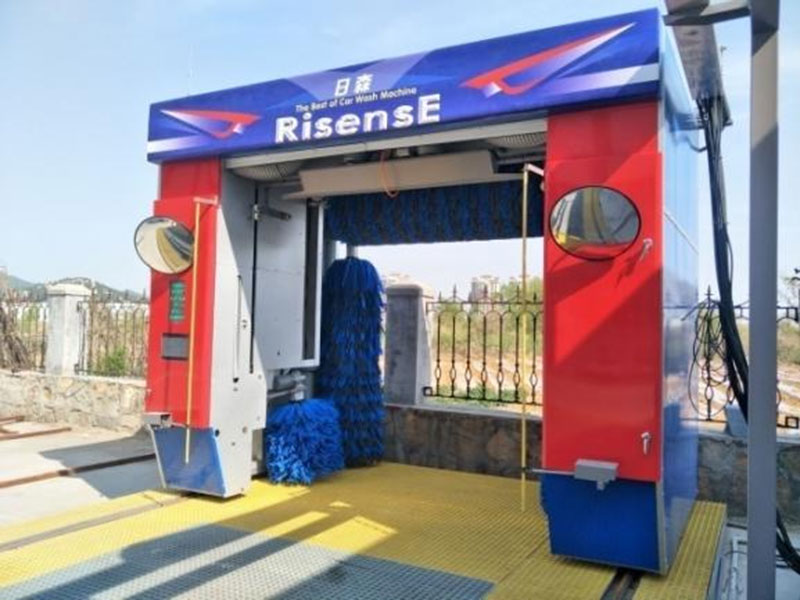

      Fully automatic car washing entails safety as a top priority. To guarantee safety, Risense rollover car wash machine CF-360 is equipped with LED screen, convex mirrors, anti-collision poles on both sides and other accessories.

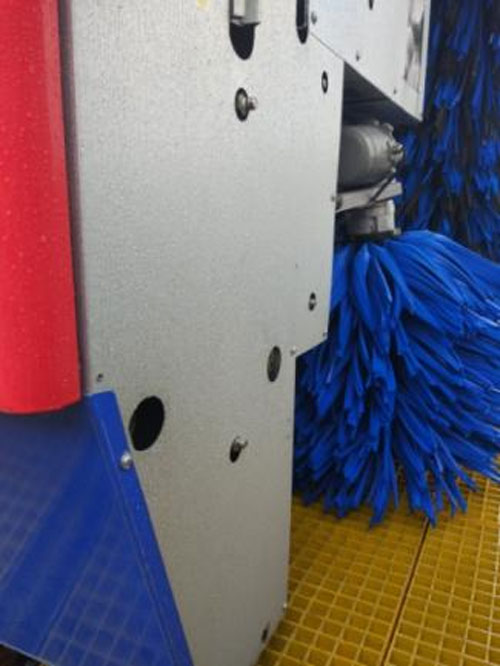

    • Car washing nozzles for wheels

      Car washing nozzles for wheels

      Car washing nozzles are particularly added in the rollover car wash machine to better clean the wheel hubs.

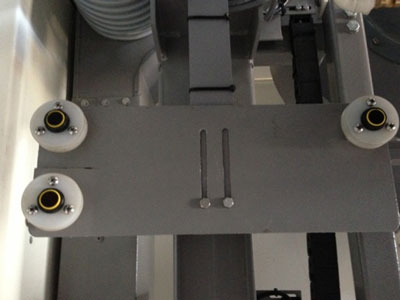

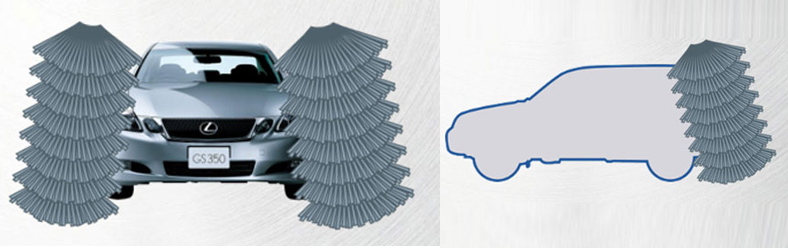

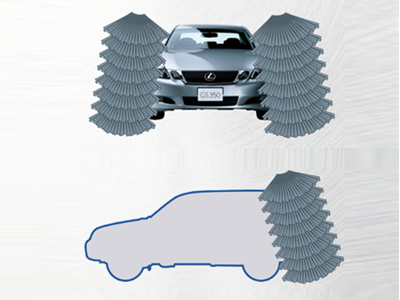

    • Brushes tilting technology

      Brushes tilting technology

      Using the tilting technology, multi-dimensional side brushes will smartly adapt to the car exteriors in the tilted position, which greatly improves the cleaning effect.

      When cleaning the rear of SUVs and estate cars, brushes are pivoted forward and backward to match the sloping hatchback, which enables the brushes to clean the recesses.

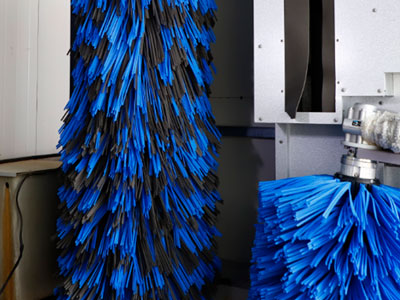

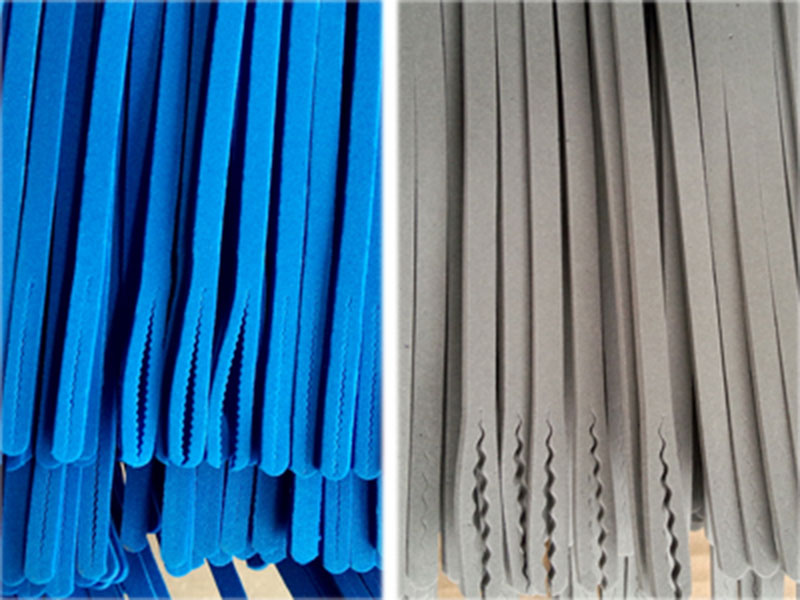

    • Swallow-tailed sawtooth foam brushes

      Swallow-tailed sawtooth foam brushes

      Side brushes and wheel brushes of Risense’s rollover car wash machine CF-360 are made of 4th generation of swallow-tailed sawtooth foam brushes that feature great capacity to retain water and reduce noise. It is quiet and effective to wash cars, which helps you attract more customers.

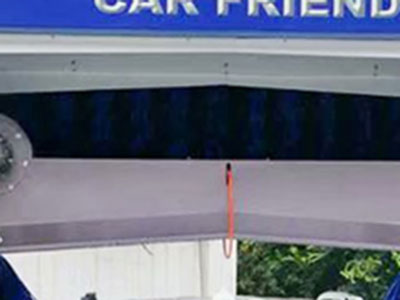

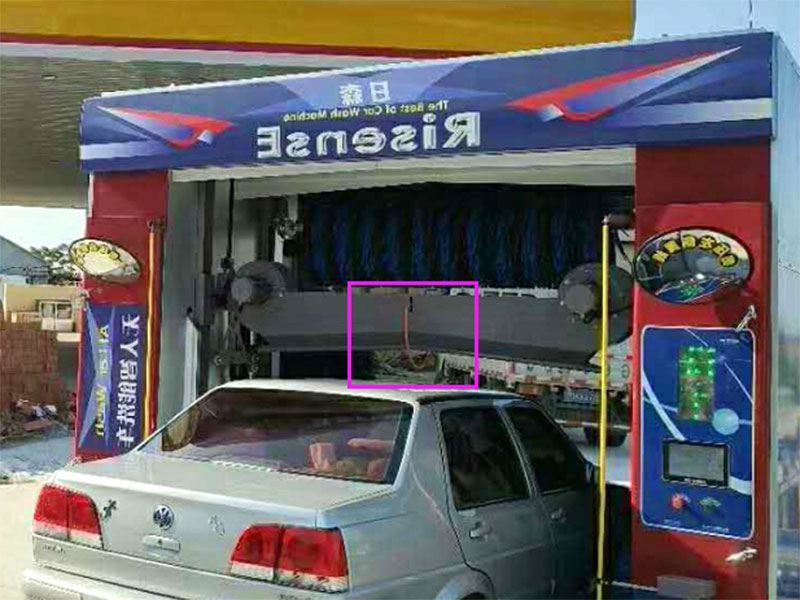

    • Smart safety system

      Smart safety system

      The smart safety system of Risense’s rollover car wash machine CF-360 consists of 6 photoelectric censors on the side air outlets and the height limit device on the top air outlets. 3 pairs of photoelectric censors are responsible for collecting cat exterior information while the height limit device responsible for lifting the top air outlets when touching cars. The combination of photoelectric sensors and the height limit device makes car washing much safer.

    Configurations
    Standard Devices Optional Devices
    Shampoo spray system Undercarriage wash system
    Water wax spray system Automatic washing mode
    Side and overhead contour-following drying system
    Equipment data intellectualization
    Self-diagnose system

    Have Questions About Our Products? We're Here to Help

    Get in touch to learn more about our advanced car wash systems, designed to deliver efficient, reliable, and customized cleaning solutions for vehicles of all types.

    sale@risense-carwash.com
    +86-17867102089
    +86-17867102089
    Get in Touch
    • Related Products
    • Other Products
    Related Vehicle Washing Equipment
      1. Rollover Car Wash Machine CF-340
      1. Rollover Car Wash Machine CF-360 (EU Type)
      1. Rollover Car Wash Machine CF-370 (EU type)
    Other Products

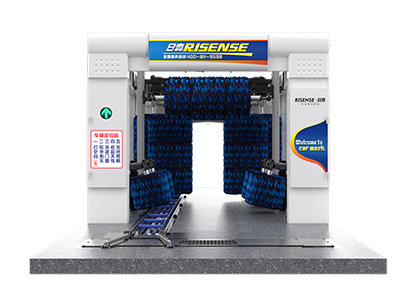

      1. Tunnel Car Wash Equipment CC-650 (5-Brush)
      1. Single Arm Touchless Car Wash Machine HP-212

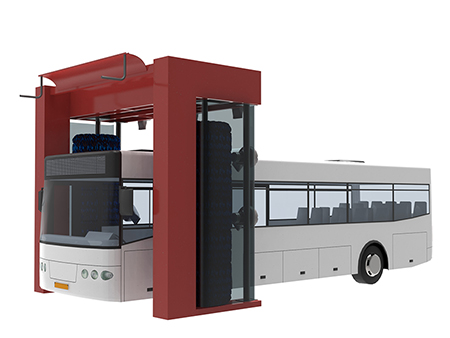

      1. Bus/Truck Wash Equipment CB-720 (2-Brush)
