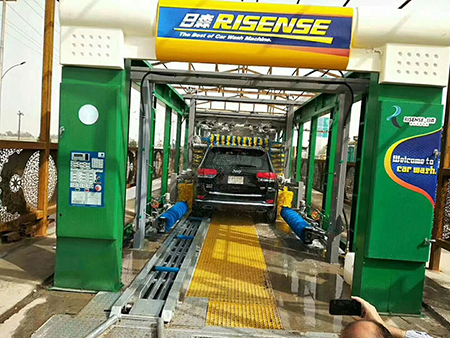

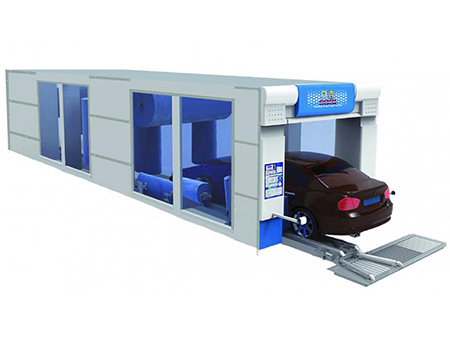

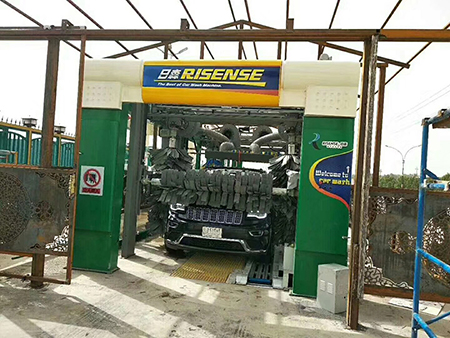

Risense’s car wash tunnel system with 14 car brushes is suitable for washing sedans, jeeps, minibuses with up to 10 seats, and other vehicles. The conveyor tunnel car system features a PLC fully-automatic computer control system to improve the security. 4 powerful dryers are equipped to quickly dry the washed and wet vehicles. For more information, please consult the table below.
| Model | CC-695 |
| Overall dimension | 16380*3800*3440mm |
| Length of conveyor:17280mm (including wheel guide) | |
| Installation size | 17580*4000mm |
| Voltage | AC 380V 50Hz (5-wire system) |
| Water-source requirement | Pipe diameter: DN25, water flow≥200L/min |
| Air supply | Air pressure: 0.75-0.9MPa, air flow≥0.1m³/min |
| Ground flatness | Deviation≤10mm |
| Available car to wash | Car\jeep\coach within 10 seats |
| Moving range | 5300*2100*2100mm (wheelbase≤3.2m) |
| Car wash capacity | 45-55 sets/hour |
| Water consumption | 155L/car |
| Power consumption | 0.8kW/car |
| Shampoo consumption | 20-40ml/car |
| Wax consumption | 30ml/car |
| PLC | Mitsubishi from Japan |
| Optoelectronic monitoring | Banner from the USA |
| Brush rotating motor | SITI |
| Contactor | Schneider from France |
| Proximity Switch | Pepperl + Fuchs from Germany |
| Small brush cylinder | AirTAC |
| Wax suction pump | Bello Zon from Germany |
| Hot-dipped galvanized frame | 1 group |
| Shampoo spray system | 1 group |
| Wax spray system | 1 group |
| Contour-following drying system | 1 group |
| Car entry guide rail apparatus | 1 group |
| Chassis spraying system | Can be added |
| High pressure water spraying device | Can be added |
| Equipment data intellectualization | Management, spot check, operation |
| Self-diagnose system | Automatic fault display, self-checking |
| Short vertical brushes | 4 |
| Lifting top brush | 1 |
| Fixed long vertical brushes | 2 |
| Moving long vertical brushes | 2 |
| Horizontal tire brushing system | 2 |
| Side drying brushes | 2 |
| Top drying brush | 1 |
| Standard Devices | Optional Devices |
| Hot dip galvanized frame | Undercarriage wash system |
| Shampoo spray system | High-pressure water devices |
| Water wax spray system | Swing blow drying system |
| Contour-following drying system | |
| Car entry guide rail apparatus | |
| Equipment data intellectualization | |
| Self-diagnose system |
