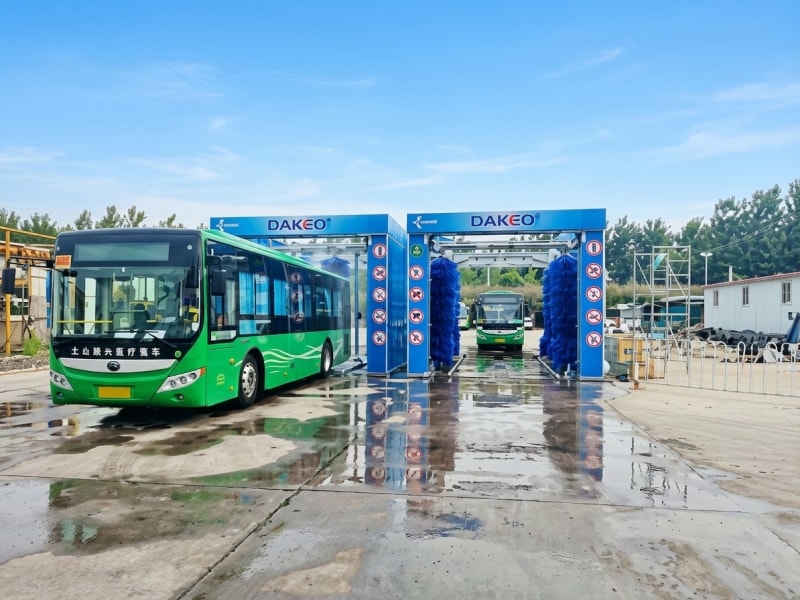

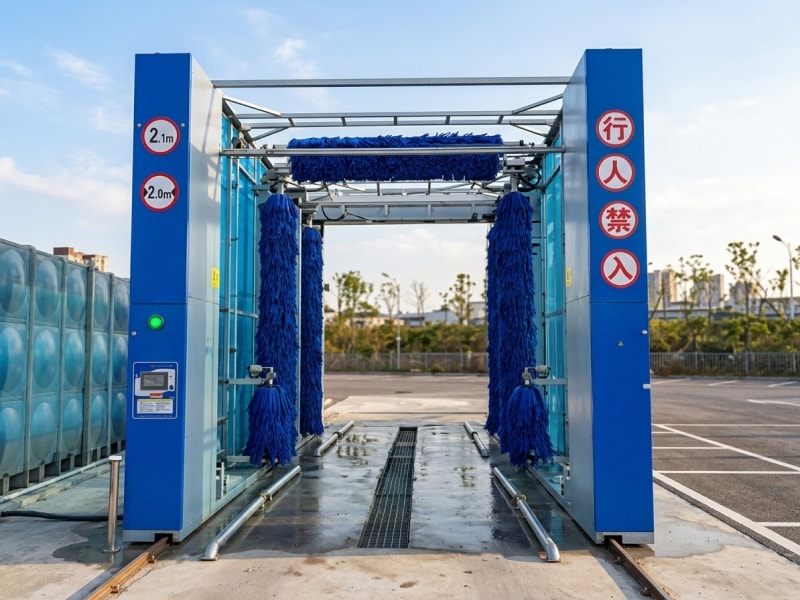

Drive Through Bus Wash System

The 6-brush drive through bus wash system can wash 20-25 buses per hour, and is suitable for heavy-traffic situations. The bus wash system can wash a vehicle’s front, back and both sides and is especially suitable for public transport vehicles with top-mounted equipment such as trams.

Features

Japanese-made automatic PLC control system and HD sensors

No manual wiping is required

Automatic chemical dosing and mixing system

Error codes for easy troubleshooting

Request a Quote

Specifications
Advantages

Technical Specifications

Dimensions (L×W×H)	10.525m×5.4m×4.4m (A model) 10.525m×5.4m×5.5m (B model)
Installed area	12m (L)×6.4m (W),passage areas reserved on both sides for inspection purposes
Power requirements	AC380V50Hz
Water requirements	Pipe diameter: DN25; flow rate≥120L/min
Air requirements	Pressure: 0.75~0.9MPa(7.5~9kg/cm²)
Applicable vehicles	Container trucks, box trucks, buses, etc.
Vehicle size range	L(not limited), W≤3m , 2.8m≤H≤3.5m(A model) L(not limited), W≤3m , 3.9m≤H≤4.6m(B model) side mirror height ≥ 1.6m(A/B models)
Washing speed	20-25 vehicles/h
Power usage	0.3-0.5kWh/vehicle
Total Installed Power	8.2kW
Max. Operating Power	8.2kW

Configurations

Frame	Hot-dip galvanized
Brushes	2 small vertical brushes+4 large vertical brushes
Brush material	Aluminum alloy brush tubes, EVA foam brushes
Water pump	Submersible pump
Top/side brush motors	SITI S.p.A.
Small-brush cylinder	AirTAC International Group
Self-diagnosis	Yes
Smart data integration	Monitoring, inspecting, operation
LED light box	Optional

Advantages

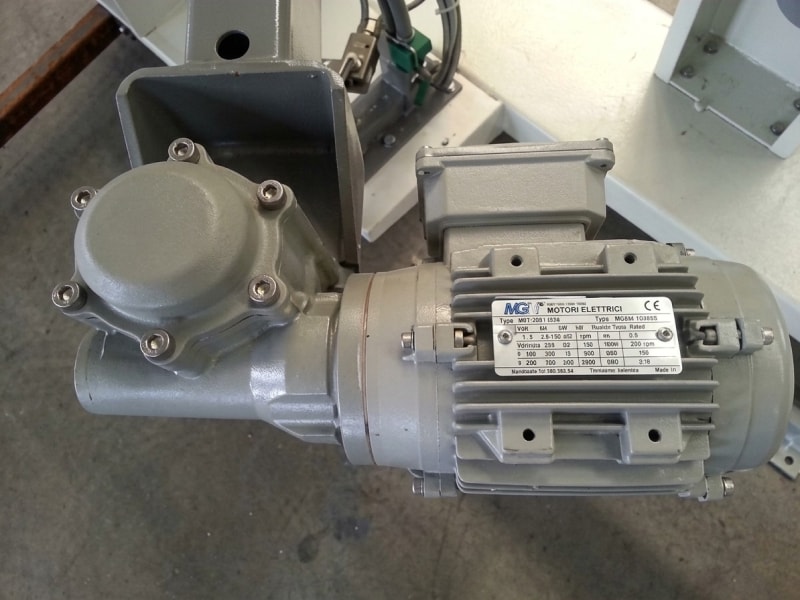

SITI motor The drive through bus wash system is equipped with Italian-made, water-resistant and durable motor from SITI.

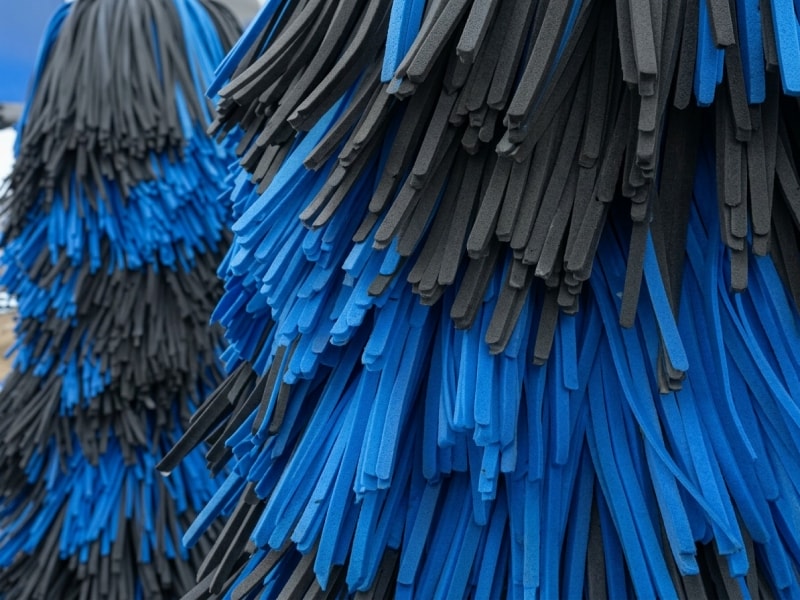

EVA foam brushes The bus wash system employs EVA foam brushes，which have gentle and soft brush hair that prevent damage to car paint. The foam brushes also clean with high efficiency and reduces noise by isolating sound caused by friction between brush hair and car paint.

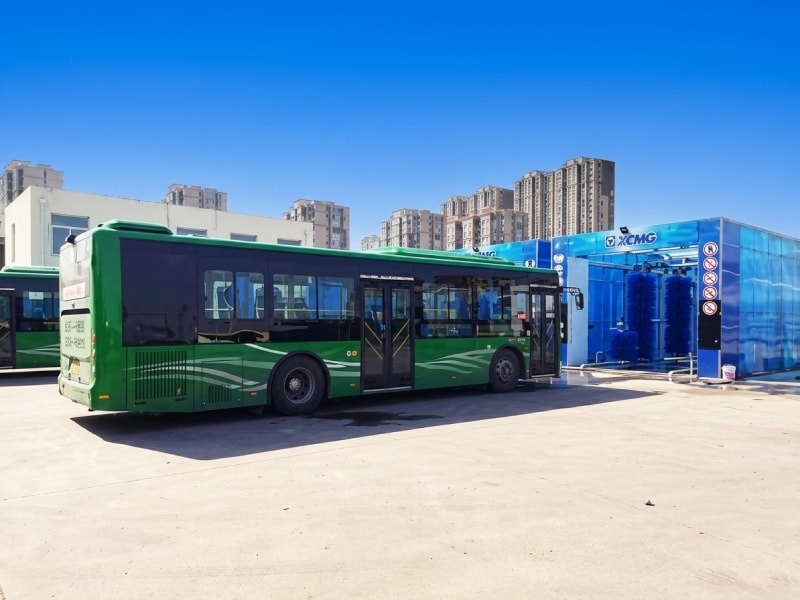

High-speed service The bus wash system can serve 20-25 buses per hour, with entering speed of 2 km/h.
Highly-sensitive photoelectric sensors Three pairs of photoelectric sensors are installed on both sides of the entrance to detect the moving vehicles.

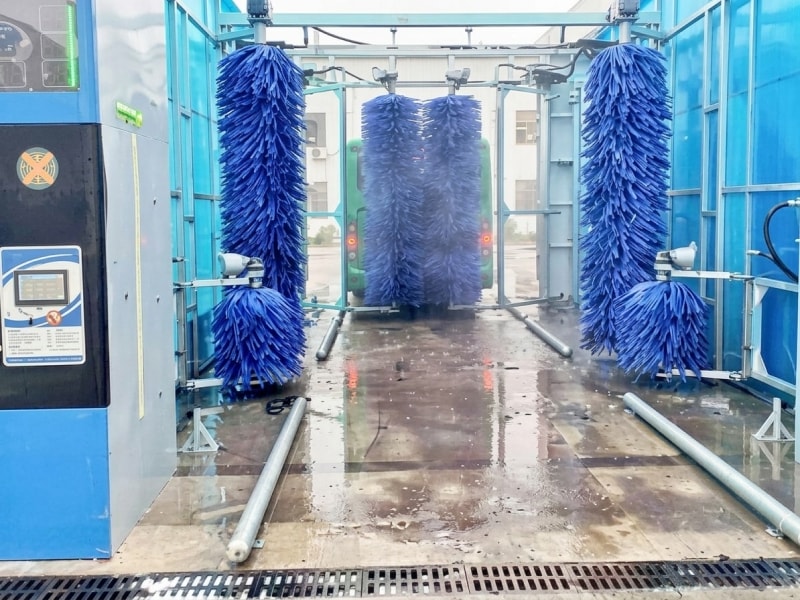

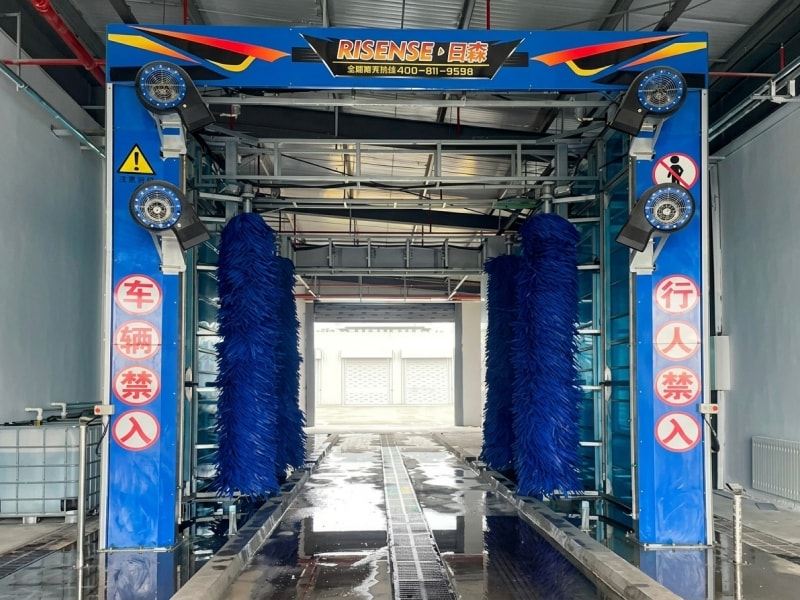

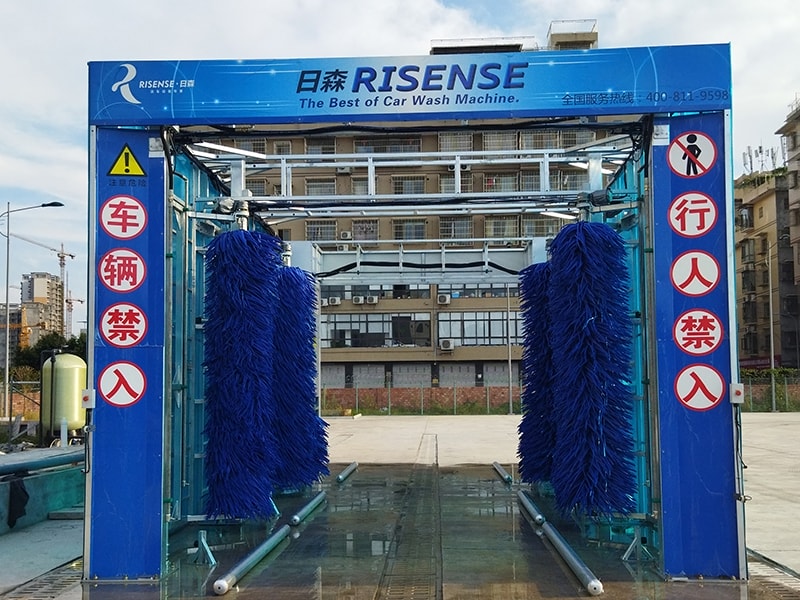

Large vertical brushes Four wrap-around large vertical brushes are safely installed to clean the sides and rear end of the vehicle. The vehicle’s rear end can travel past the centerline for thorough cleaning.

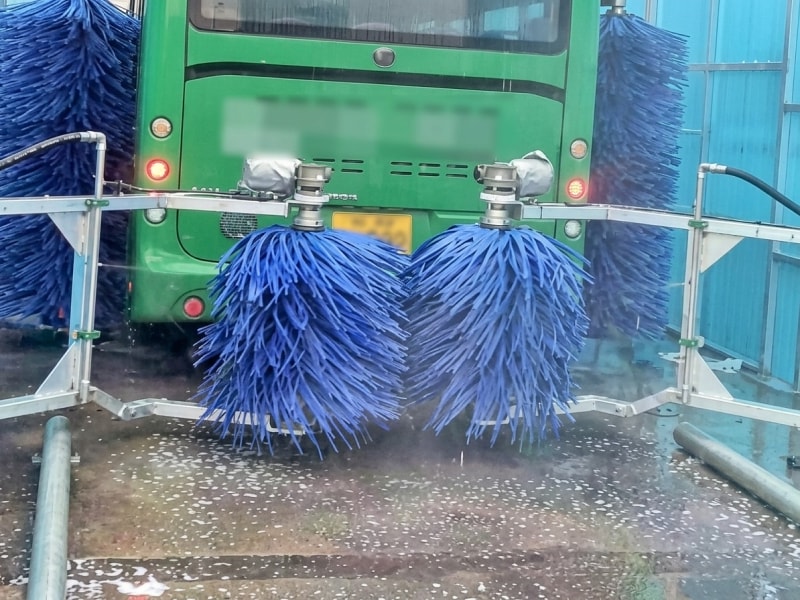

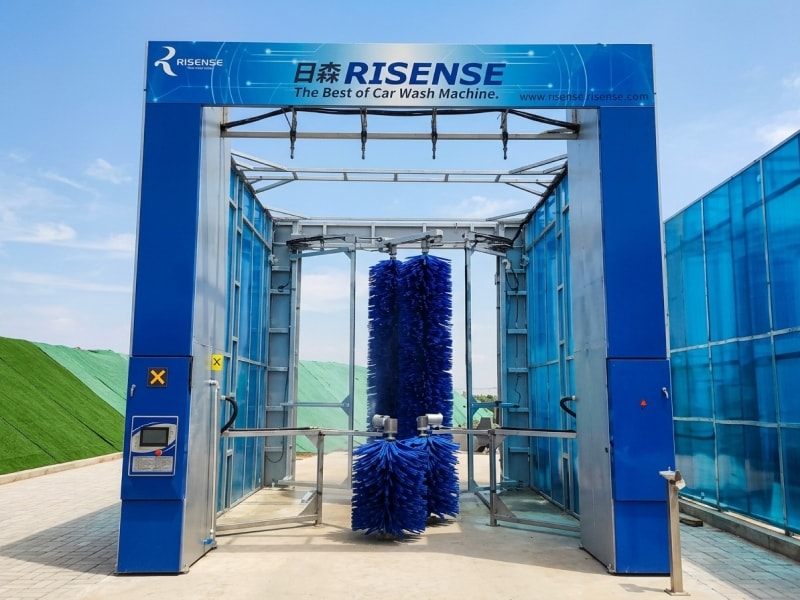

Small vertical brushes Two small vertical brushes are installed to wash the front and the bottom of the vehicle. The vehicle’s front end can travel past the centerline for thorough cleaning.
Limit switch Limit switches are installed to ensure vehicle’s safe advancing in the cleaning area.

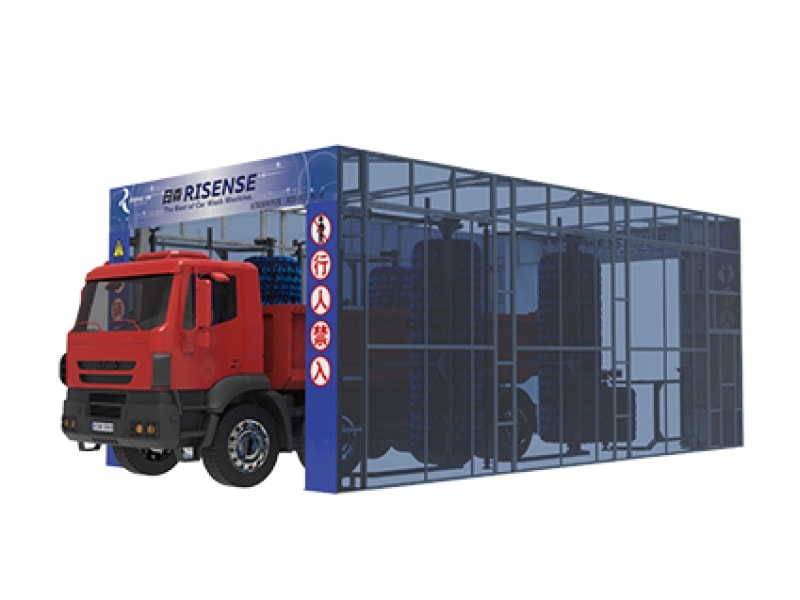

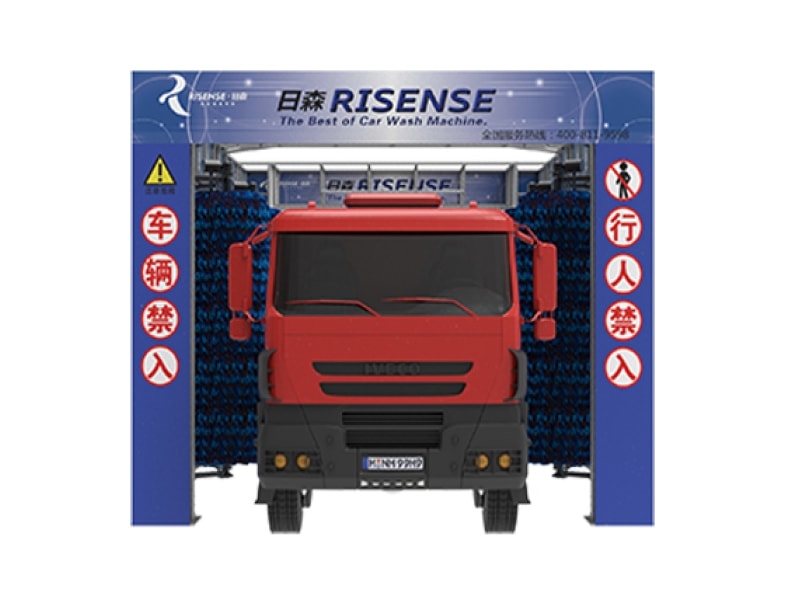

CB-760 (6-Brush)

Drive Through Bus Wash System
