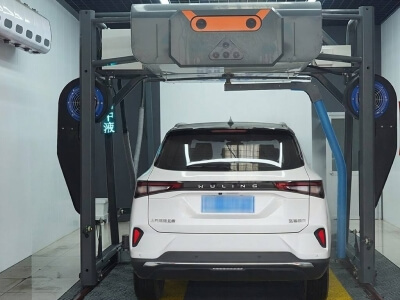

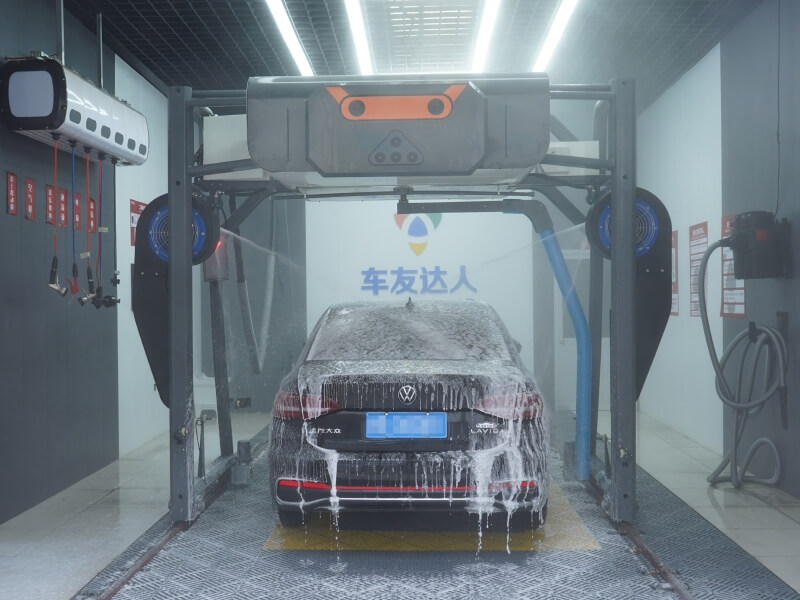

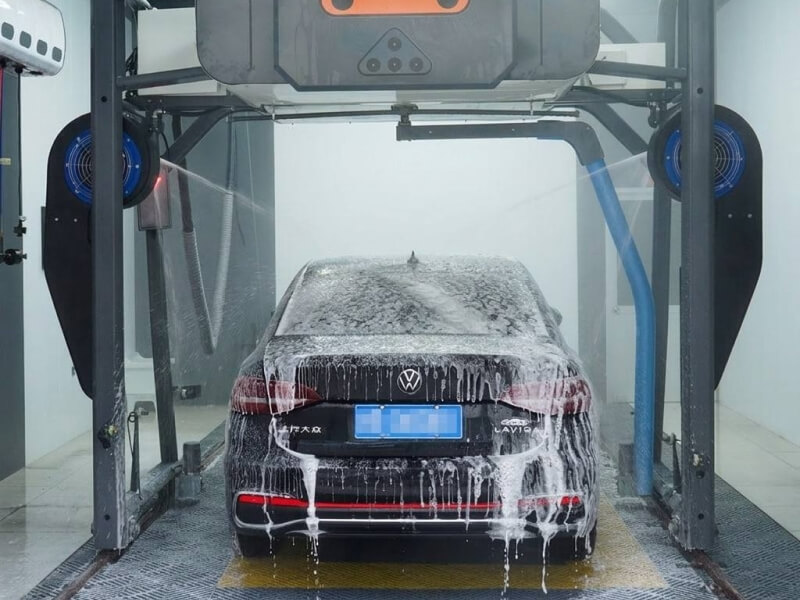

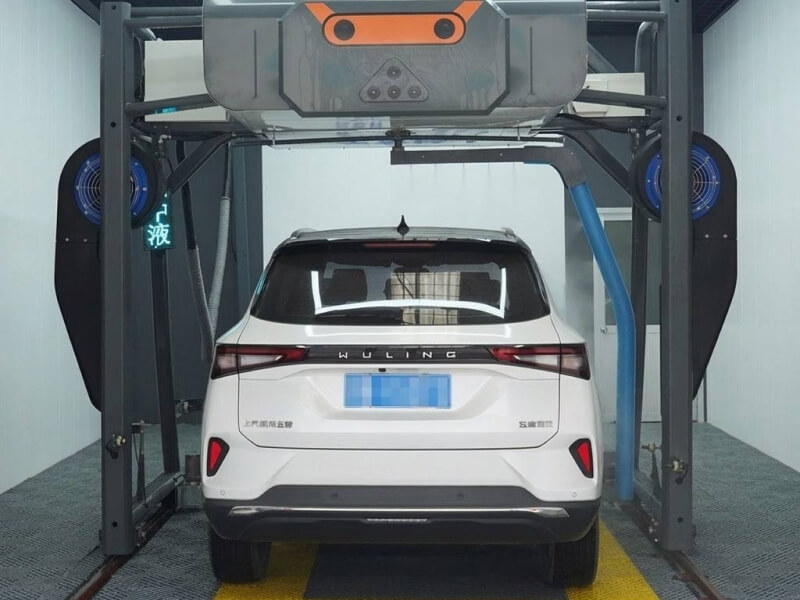

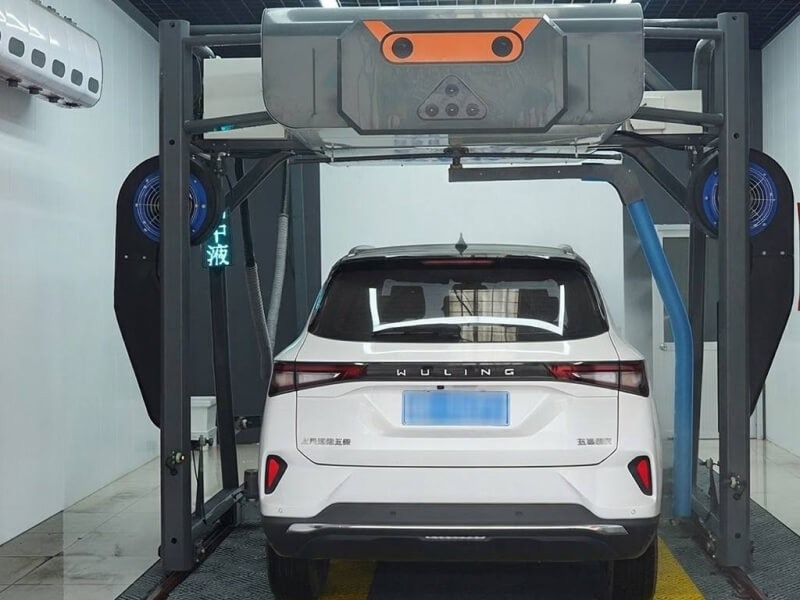

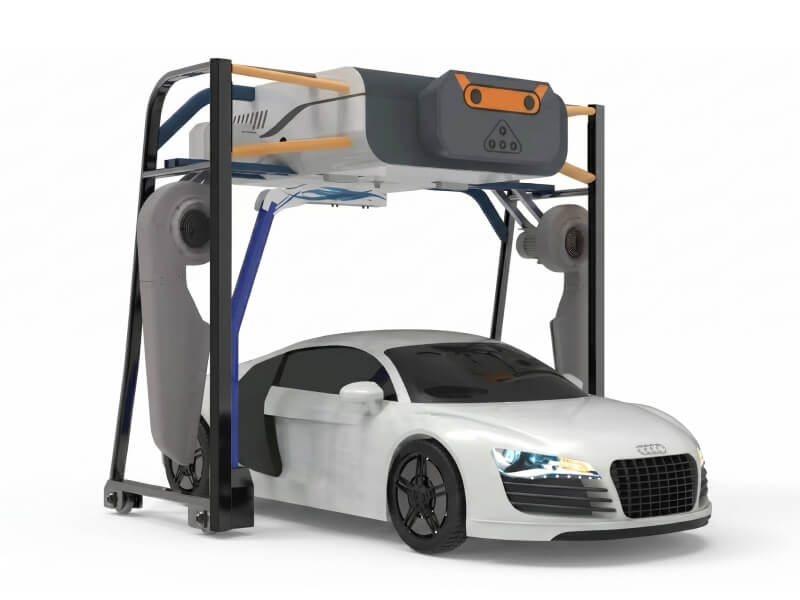

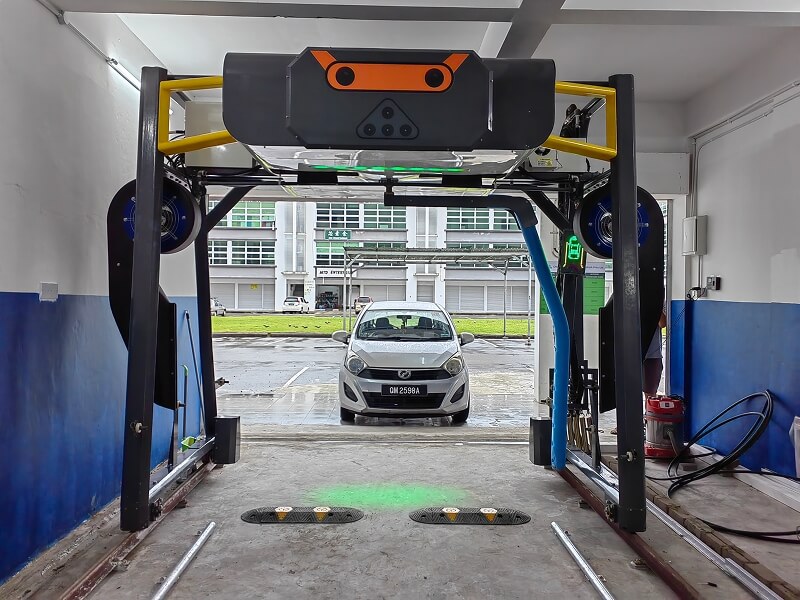

The single arm touchless car wash machine utilizes back-and-forth spraying and high-pressure water spraying, foam spraying and wax spraying. Optional features include sideways drying and over-the-top side drying. The single arm touchless car wash machine is an easy-to-move option for startups and car wash chains.
| Name | Single arm touchless car wash machine, HP-212 Plus |
| Dimensions (mm) | 2400×3600x2850(L×W×H) Track: L=7500,W=2850 |
| Installed area (mm) | 8000×3700×2900 (L×W×H), not including equipment room and entrance photoelectric sensor |
| Equipment room 2500×1600×2000 | |
| Power requirements | 380V 50Hz, three-phase system |
| Power | Total:44kW Max. operating power:23kW |
| Spraying water pressure | 7-8MPA |
| Air requirement | 0.6-0.7MPa |
| Applicable vehicles | Sedans, vans, MPVs, etc. (up to seven seats) |
| Washing range (mm) | 5300×2100×2050 (L×W×H) |
| Washing time | Regular mode: 3min/vehicle; upgraded mode: 9min/vehicle |
| Water usage | Approx. 208L/vehicle |
| Power usage | Approx. 0.98-1.08kWh/vehicle |
| Shampoo usage | Approx. 25-60mL/vehicle |
| Touchless cleaning agent usage | Approx. 20-50mL/vehicle |
| Wax usage | Approx. 20-40mL/vehicle |
| Smart data integration | Monitoring, inspecting, operation |
| Self-diagnosis | Yes |
| Photoelectric sensor | Pepperl+Fuchs / Risen |
| Relay | Honeywell International Inc. |
| Variable-frequency drive | Delta Electronics, Inc. |
| Waterproof motor | Trunde |
| Contactor | Schneider Electric SE |
| MCGS screen | Kunlun Tongtai |
| Metering pump | NEWDOSE |

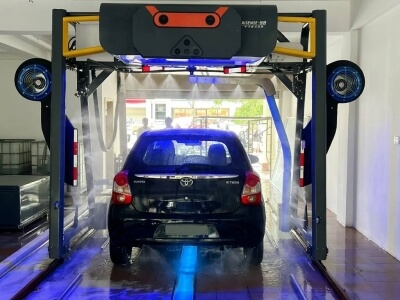

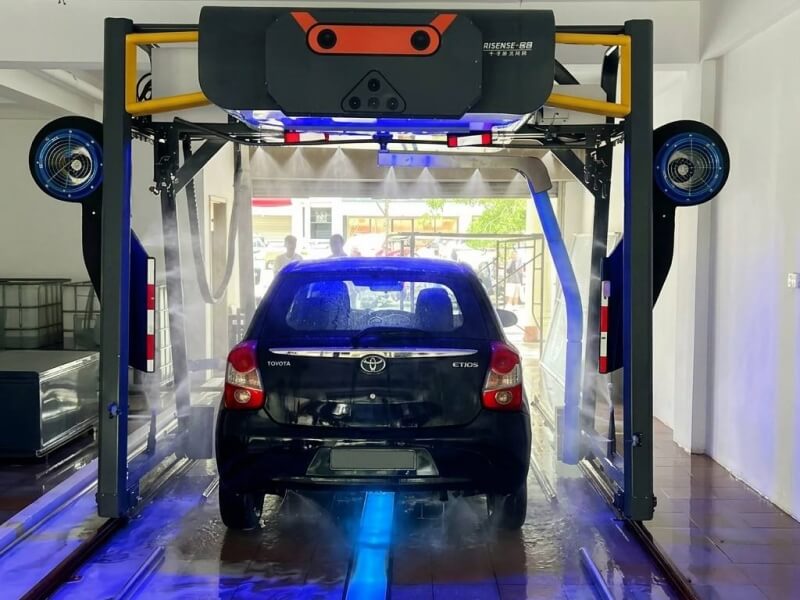

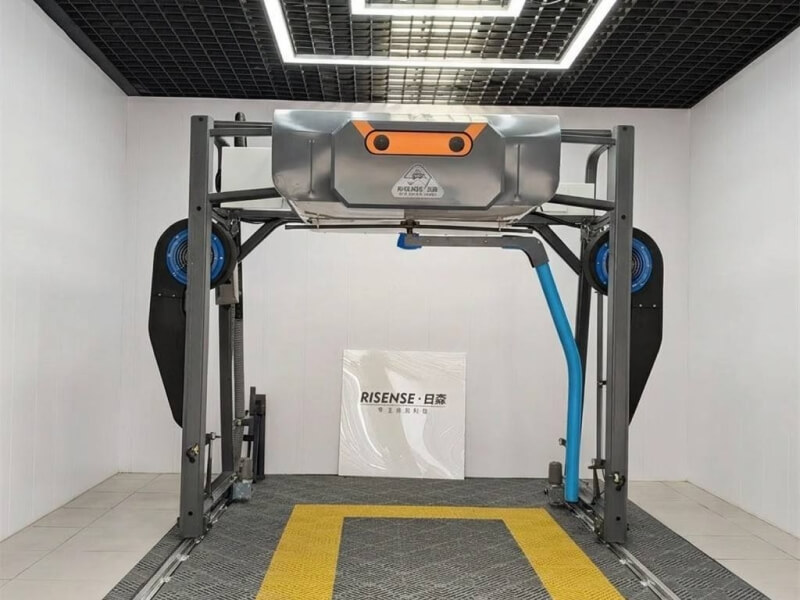

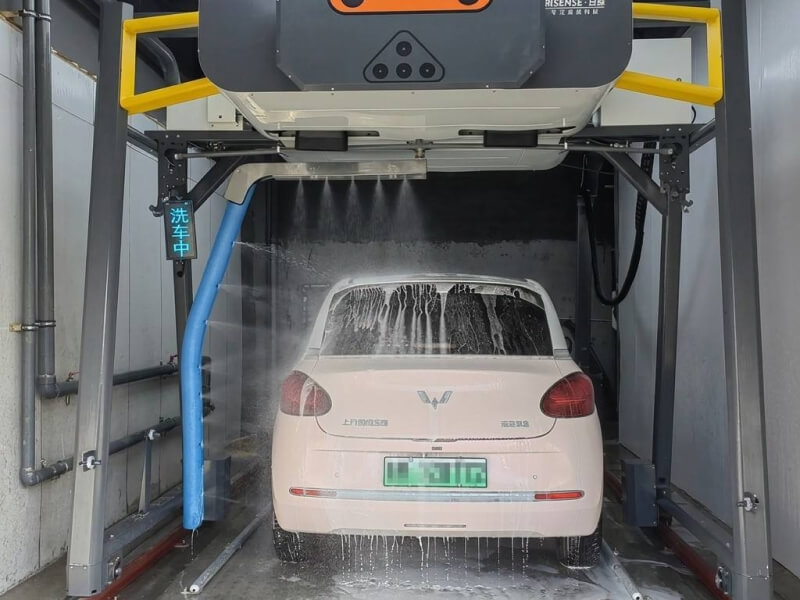

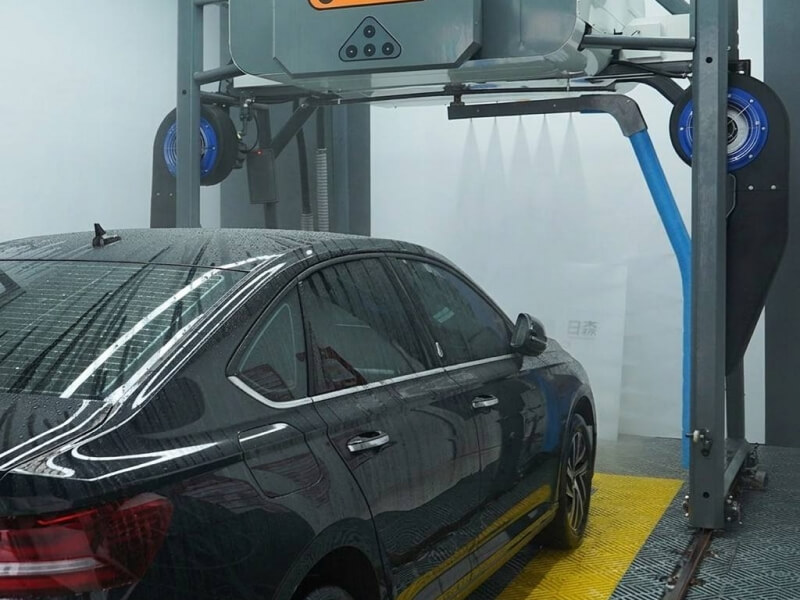

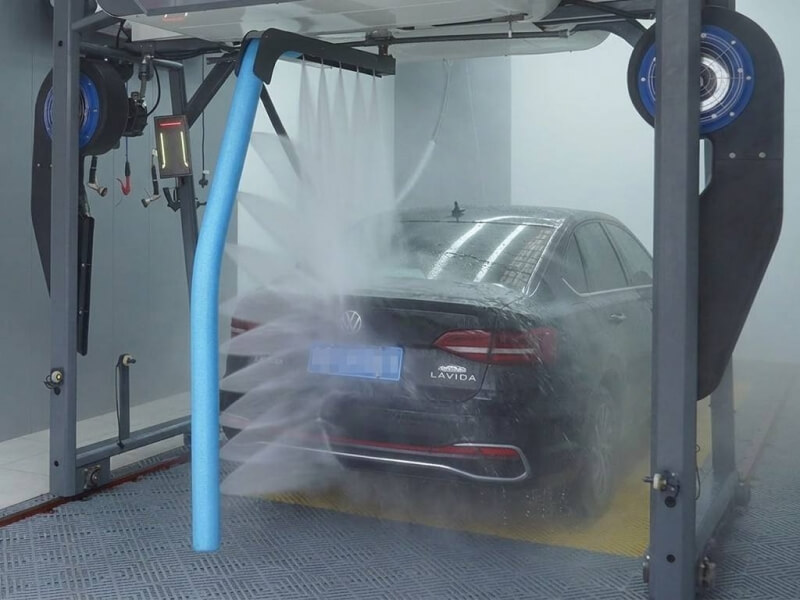

Corrosion-resistant welded steel frame with hot-dip galvanizing The frame is built with 3mm Q235 steel and went through hot-dip galvanization. The corrosion resistance is graded ten according to SGS salt spraying test results. Single-arm, back-and-forth spraying The single arm touchless car wash machine ensures stability and flexibility with single-arm, back-and-forth spraying system.

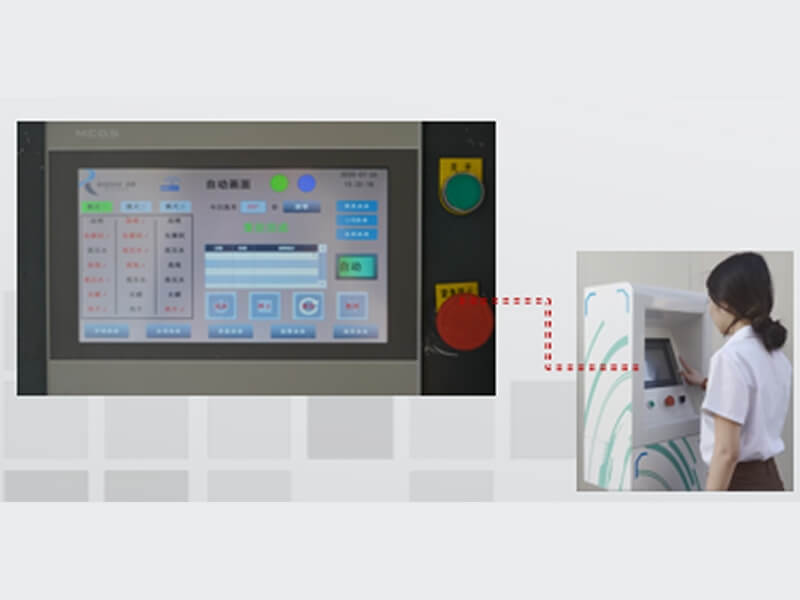

HD touchscreenThe HD touch screen simultaneously displays car wash modes and washing steps, with various options and intuitive user interface. Self-serve operation The single arm touchless car wash machine features QR code scan-to-start operation during which human intervention is not needed, and is suitable for 24-hour service.
