- Automatic Car Wash Equipment Type HP-261

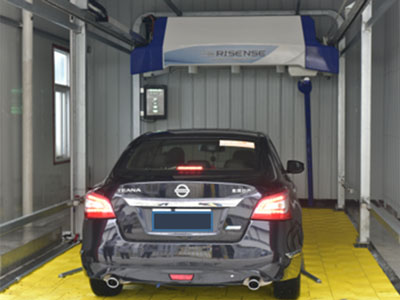

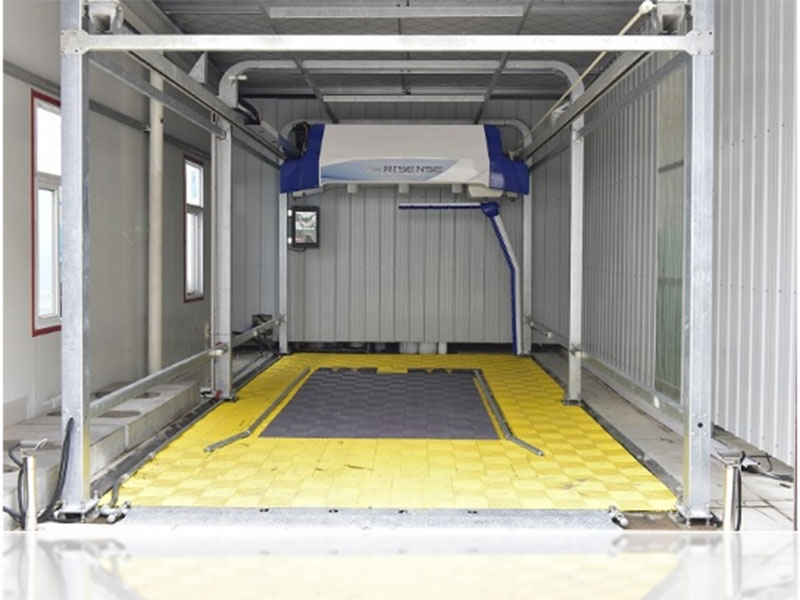

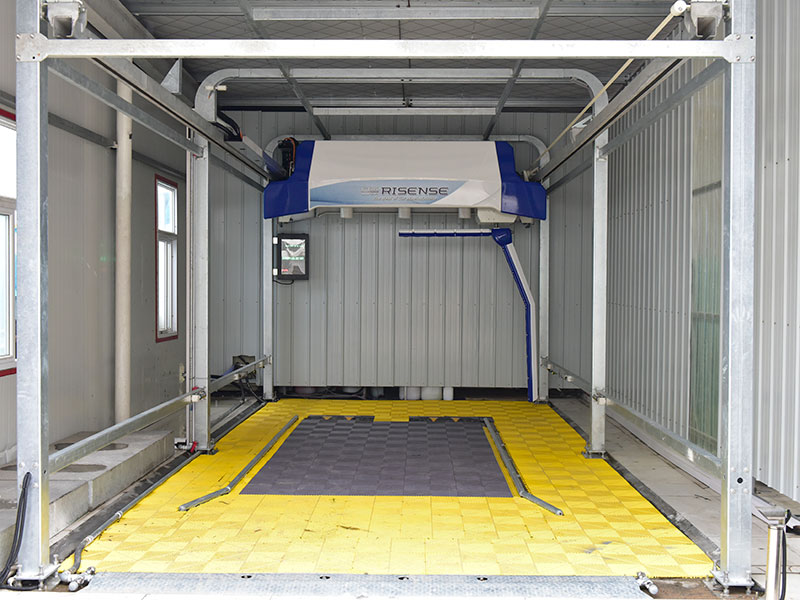

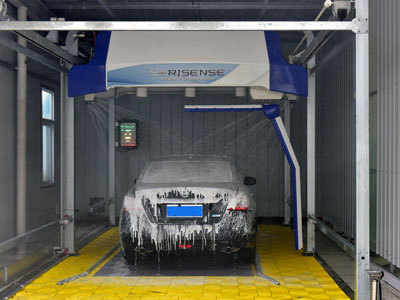

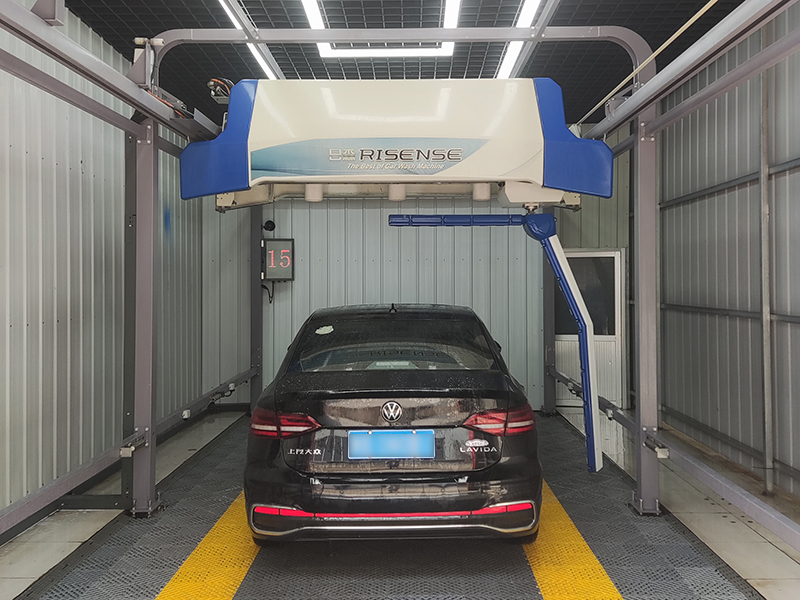

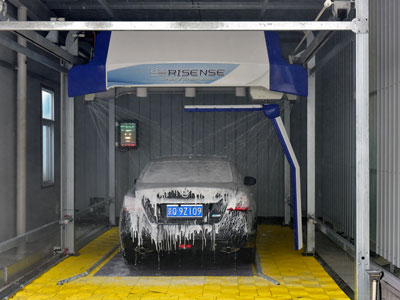

The type HP-261 high pressure water washing with dryer is a kind of single armed car wash equipment. It is a fully automatic, intelligent and contactless car wash equipment which can realize 360° quick washing of car with no dead angle. This equipment also has the function of chassis and sector hub washing by adopting 70-120KP high pressure washing unit so that it can realize effective cleaning of attachments such as sand and mud on the chassis, on both sides of the car and on the hub. With the illumination of colorful LED lights, the car is shiny. This can provide unique and entertaining customer experience. Your customer will be pleased with the shiny car and your income will increase.
This automatic car wash equipment has 10 following functions or features: chassis washing, pre-washing, spraying of foam, colorful LED lights, 70-120KP high pressure flushing water, reflector cleaning, spraying of wipe free cleaning solution, functions of water wax plating and coating, air drying, LED screen and voice prompt. For more details of these functions, please check the introduction at the end of this page.

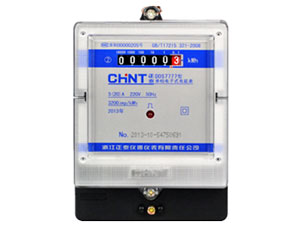

The electricity consumed of standard equipment is 0.65 kilowatt hour per car. It will be 0.75 kilowatt hour per car if fine cleaning and drying are included.
The automobile detergent and water wax consumed for each car is 0.5 yuan.

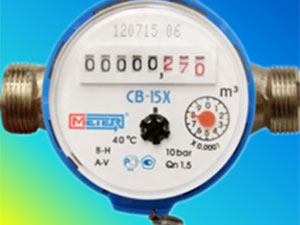

The water consumption is about 165L for cleaning of a standard car.
The time consumed for washing a car is greatly depended on the procedure of car washing. The time of full sets of cleaning is about 5 mins: chassis, clean water, water from bubbler, clean water, automobile detergent, clean water, water wax, drying.
Model | HP-261 |
Outline dimensions | 3330*1100*1000 |

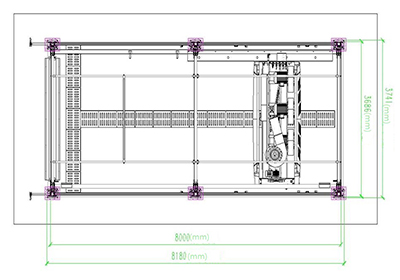

Installation requirements(L*W*H) | 8000*3686*3600mm |
Max car dimension(L*W*H) | 5900mm*2850mm*2050mm |
Power source requirements | Three phase |
Water pump pressure | 70-120KP |
Air supply requirements | 0.5MPa |
Target vehicle type | Car, minibus, MPV and some other vehicles which has less than 7 seats |
Car dimension | L: 5300mm * W: 2500mm * H: 2050mm |
Washing time | Normal washing: 3min/car; careful washing: 5min/car |
Single vehicle water consumption | About 150L/vehicle |
Single vehicle electricity consumption | About 0.95KWh/vehicle |
Single vehicle detergent consumption | About 25-60ML/vehicle |
Single vehicle wipe-free cleaning solution consumption | About 20-50ML/vehicle |
Single vehicle polish consumption | About 20-40ML/vehicle |
Normal mode (one washing cycle) | 58 s/vehicle |
Standard mode | 3 mins 12 s/vehicle |
Fine washing mode | 5 mins 12 s/vehicle |
Energy consumption of normal mode (one washing cycle) | 0.7 yuan |
Energy consumption of standard mode | 3.2 yuan/vehicle |
Energy consumption of fine washing mode | 4.6 yuan/vehicle |
Total weight of the equipment | 2550kg |
Guide rail | 2 (8000) |
Frame | 31 |
Wooden box dimension of the main engine(L*W*H) | 3830mm*1430mm*1360mm |
Wooden box dimension of the water pump(L*W*H) | 1300mm*900mm*800mm |
Dimension of the matching and mixing system(L*W*H) | 1200mm*550mm*1400mm |

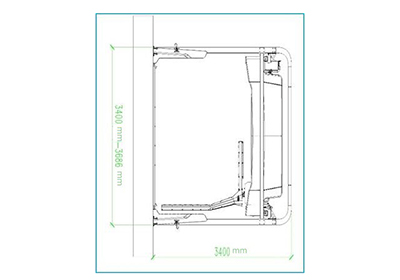

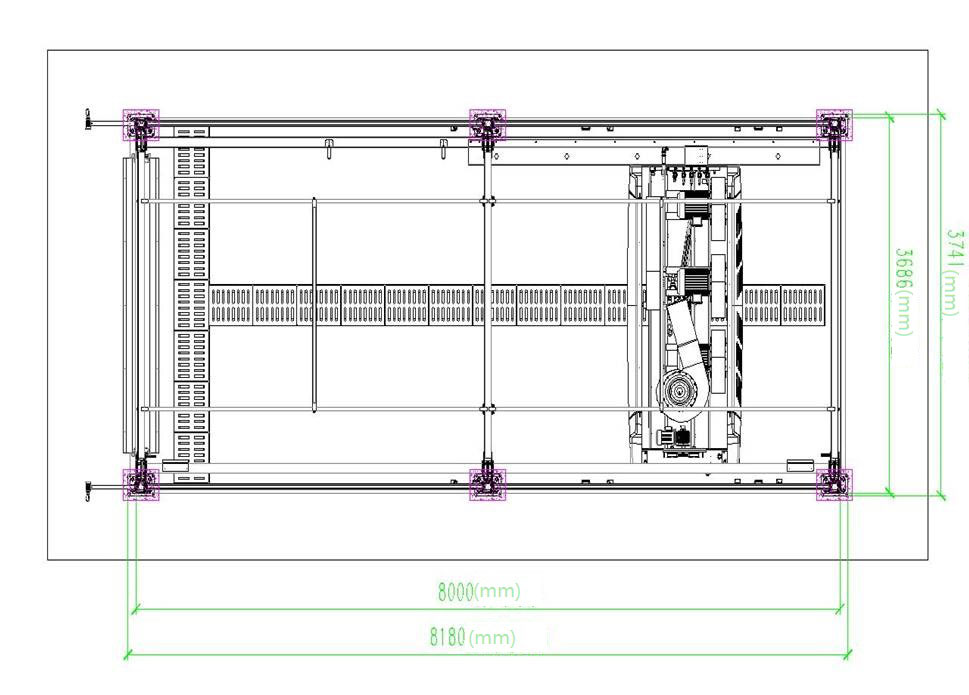

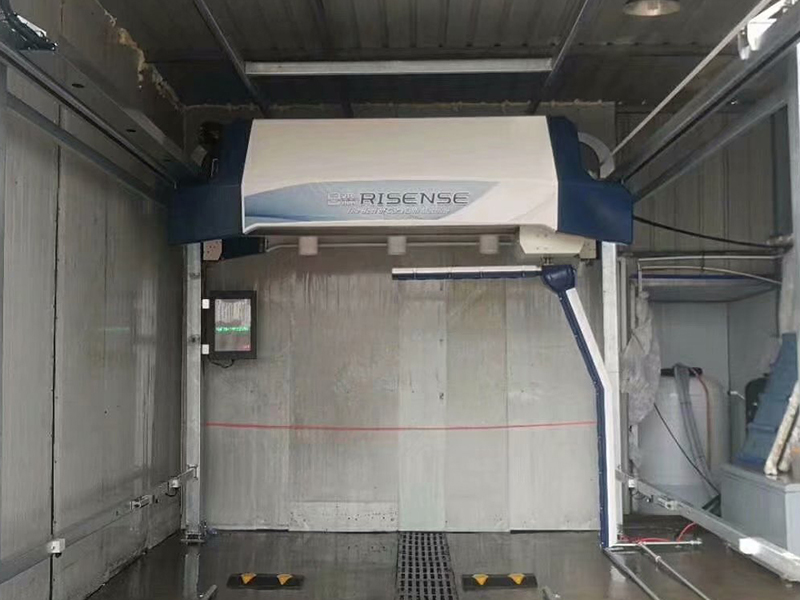

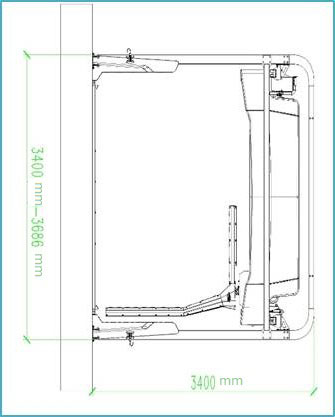

The width should be 3.68 m, the height should be 3.6 m and the depth should be 8 m.
The type HP-261 high pressure water washing with dryer has professional chassis and sector hub washing function. By adopting 90KP high pressure washing unit, it can realize effective cleaning of attachments such as sand and mud on the chassis, on both sides of the car and on the hub.
This equipment adopts high pressure pre-washing of two sides of the vehicle, tyre rim and the whole vehicle.

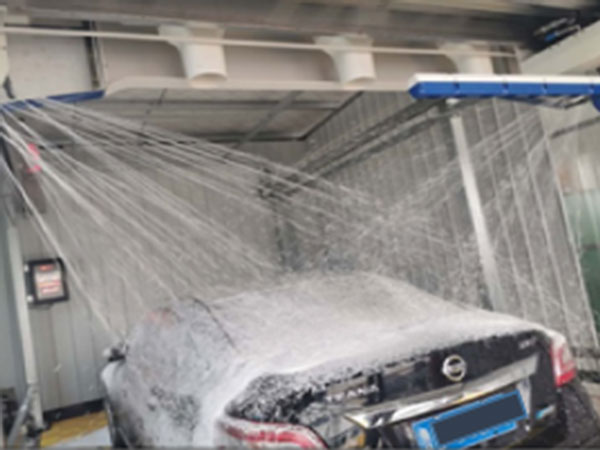

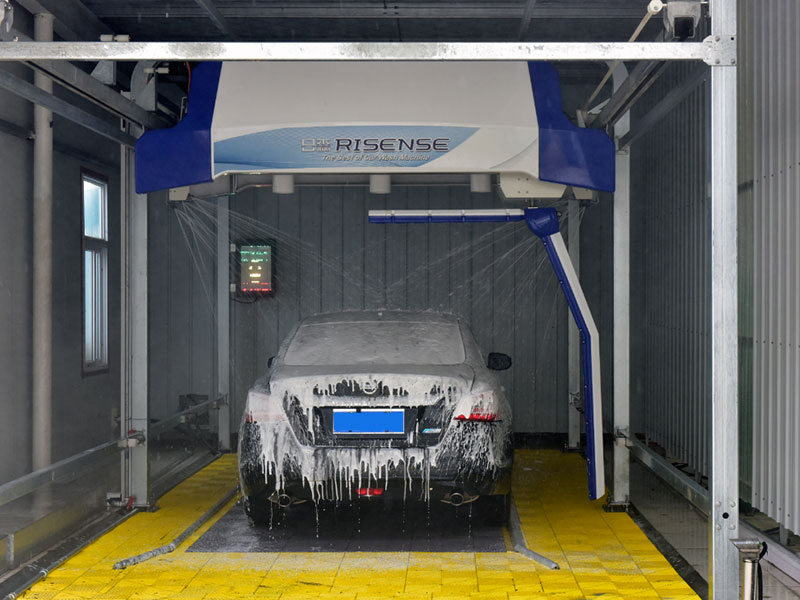

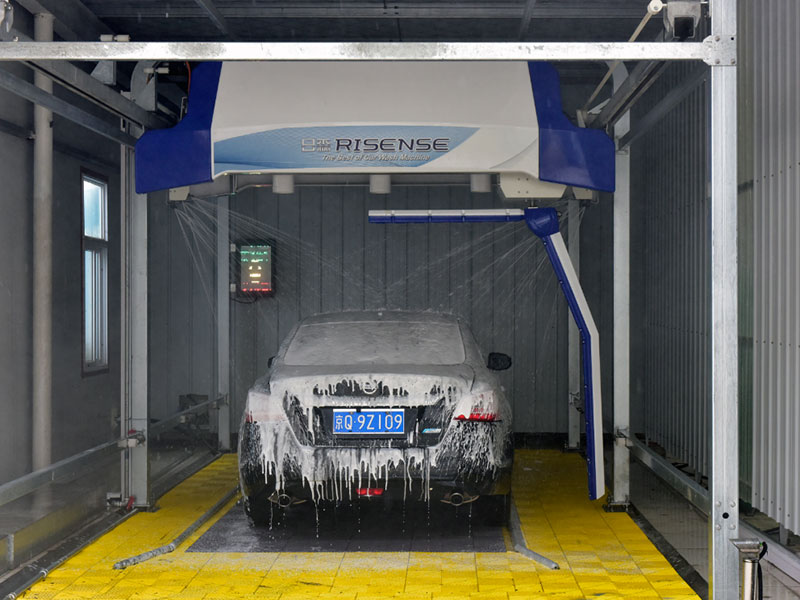

The thick bubbles can totally contact with the dirt, improving the dirt removing efficiency. The repeated wiping motions can be reduced. During the cleaning of the vehicle, the polishing and protection of the vehicle can be accomplished at the same time. The paint can be more colorful, glossy, shiny and beautiful.

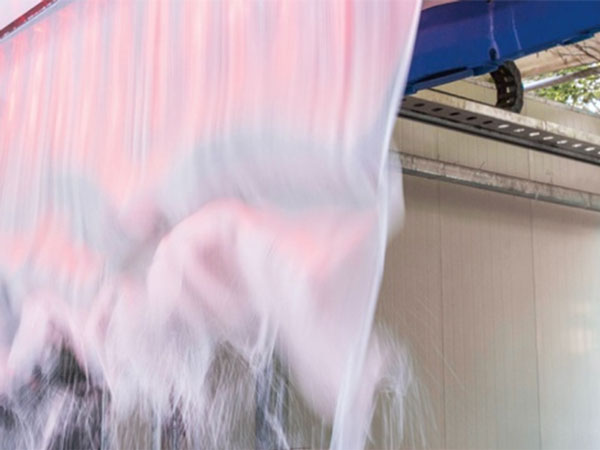

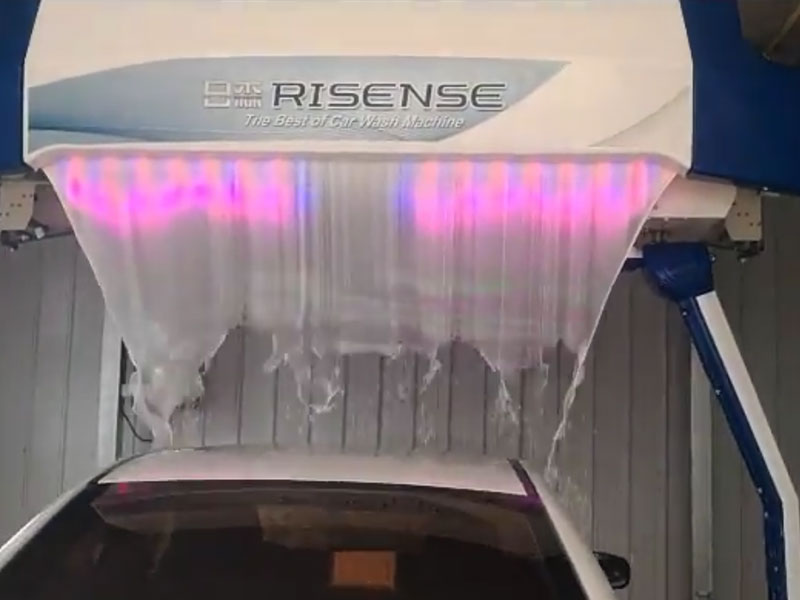

This HP-261 equipment has shining system which can increase the income of car washing. Under the illumination of colorful LED lights, this innovative system can provide the vehicle with silky, smooth and shiny colors. This is a unique and interesting customer experience. Your customers will be keen on shiny vehicles and you can enjoy the increasing of income.

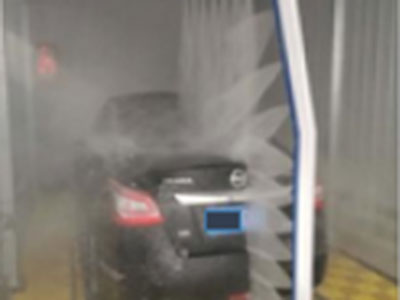

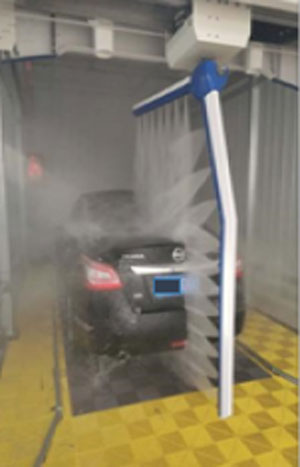

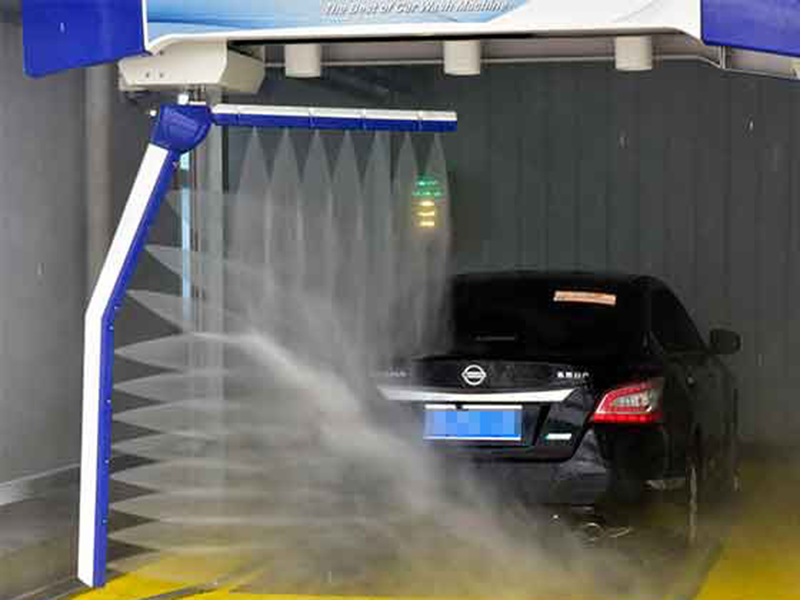

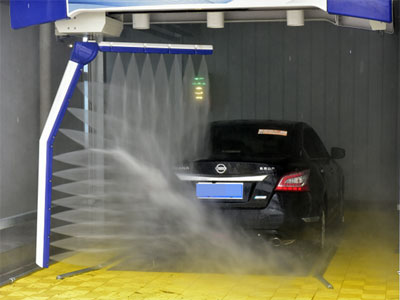

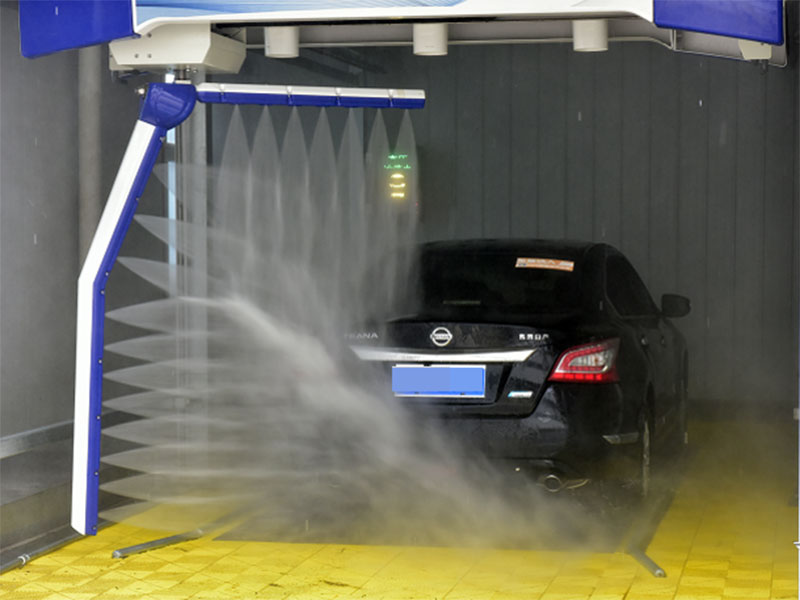

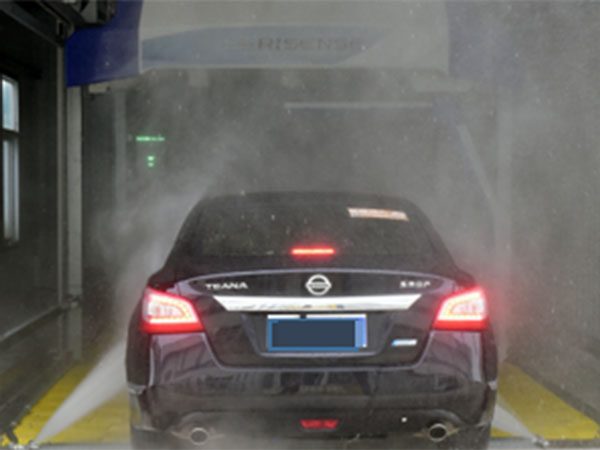

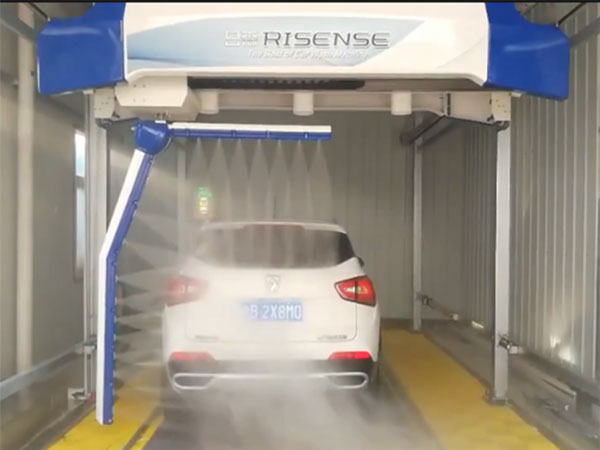

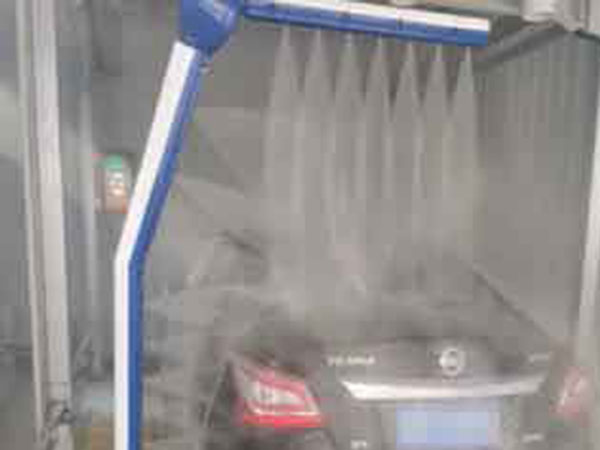

This kind of car wash equipment can realize 360 degree high pressure washing. It takes 29 s for one washing cycle. The rotatable arm can realize linear motion according to the outlines of the vehicles. It adopts 360-degree washing with constant speed, constant pressure and constant distance, thus cleaning the vehicle from quite different angle. There will be no dead angle. This kind of equipment uses innovative resistance free sliding rail so that the moving can be controlled smoothly. One washing cycle only takes 29s. And the water consumption is 50% lower than the normal equipment. The reducing of electricity consumption can be up to 60%.

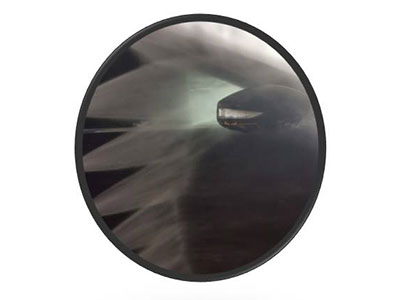

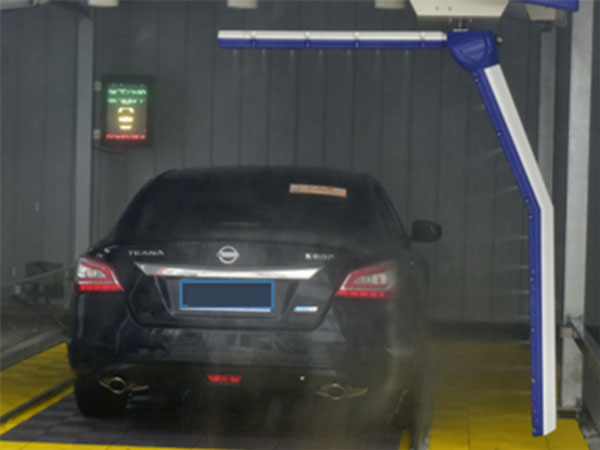

HP-261 is equipped with ultra-sonic identification system. After scanning the width of the vehicle to be cleaned, the washing arm will move to realize rotating cleaning of the whole vehicle according to the data of the ultra-sonic system, including the reflector.

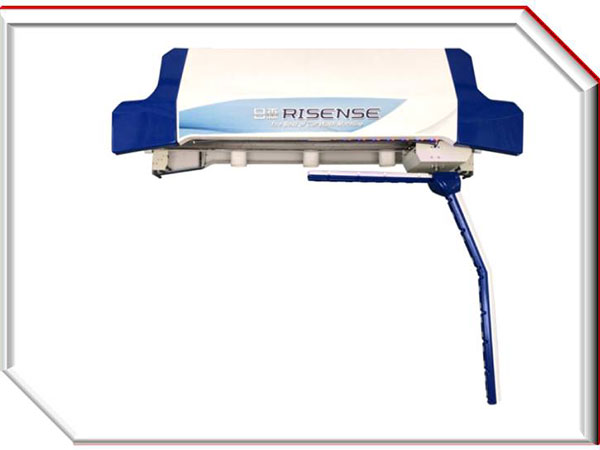

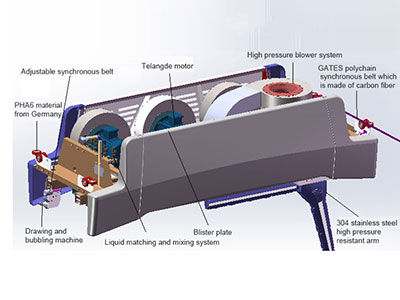

1. The simple streamline design visually shows power of machines.
2. Structural stability ensures safety of use and the walking truck is well designed to protect cars and users.
3. Well-chosen materials are lightweight and sturdy and thus perform well in terms of durability.
1. Thanks to the CAE tool, distance, position and angles of nozzles in the arm are carefully calculated and well arranged to avoid the spray offset and cover the entire car body.
2. The rotating arm is equipped with anti-collision devices to keep the safe distance from the car.
3. The rotating robotic arm can do the high-pressure pre-wash job, car wash and wax spray.
4. The arm features safety and stability of use since it cleans cars equidistantly with proper pressure at a constant speed.
1. The integral quite dryer is nice-looking and space-saving.
2. The dryer can move along with the machine to better dry the car.

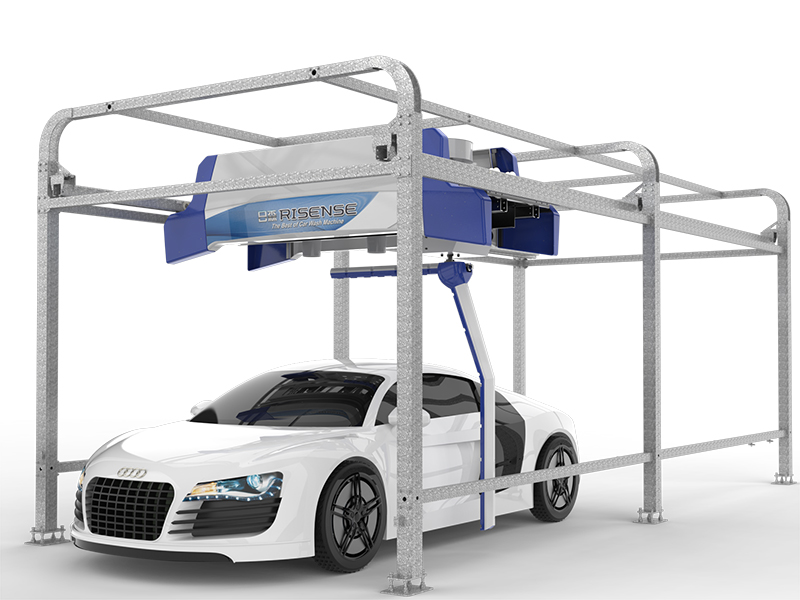

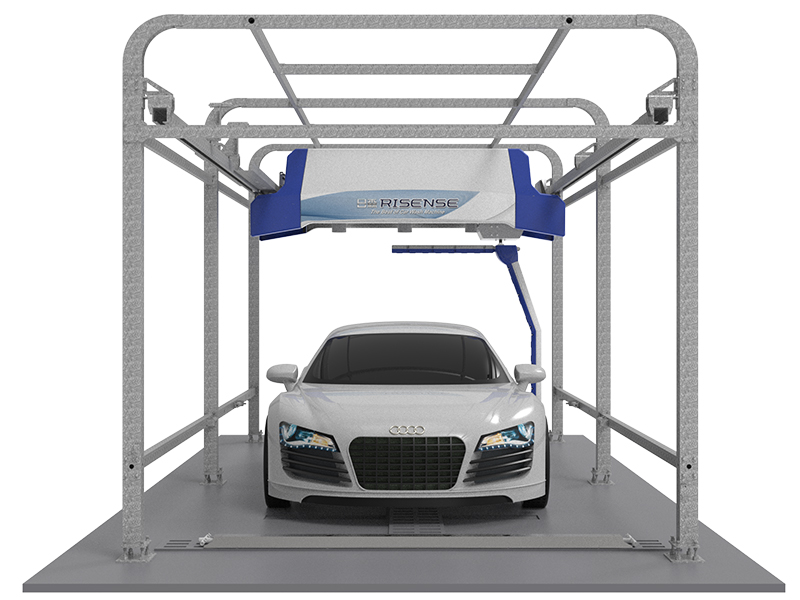

The non-welded frame of Risense automatic car wash machine HP-261 is made of Q235 steel (4mm thick) with laser cutting and CNC bending technology, and fixed by 304 stainless steel screws. After processing of surface pickling, phosphorization and hot-dip galvanization, the frame is proved its outstanding anti-corrosion capacity as it is rated 10 in the salt mist test in the SGS laboratory.
The sophisticated design of the frame ensures safety and durability. It enables the machine to run more smoothly than the traditional welded frame.

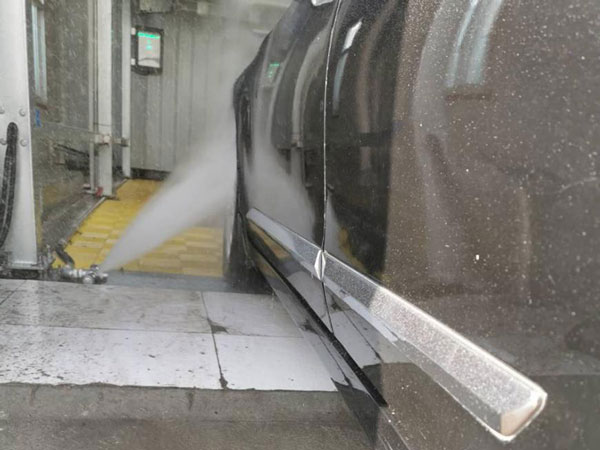

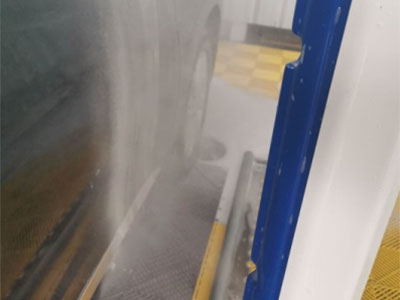

Risense automatic car wash machine HP-261 is equipped with the undercarriage wash system that uses high-pressure water spray to rinse the chassis and wheels. The system enables 360 degrees pre-soak wash to lift away dirt and improve the cleaning effect of car shampoo.

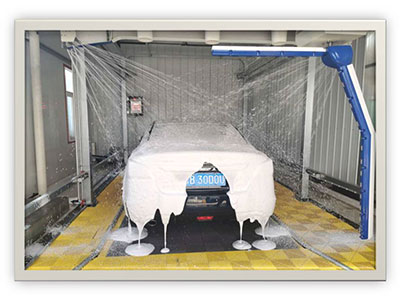

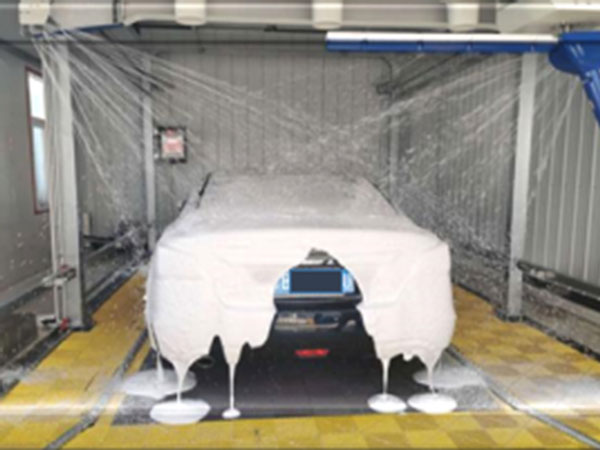

Snow foam car shampoo enables waterless cleaning to remove dust and dirt on the car surface. It produces thick and rich colored foam to make car wash a quite enjoyable thing and helps attract more customers for your business.
The wax spray forms a thick protective layer to enhance shine and protect paintwork.

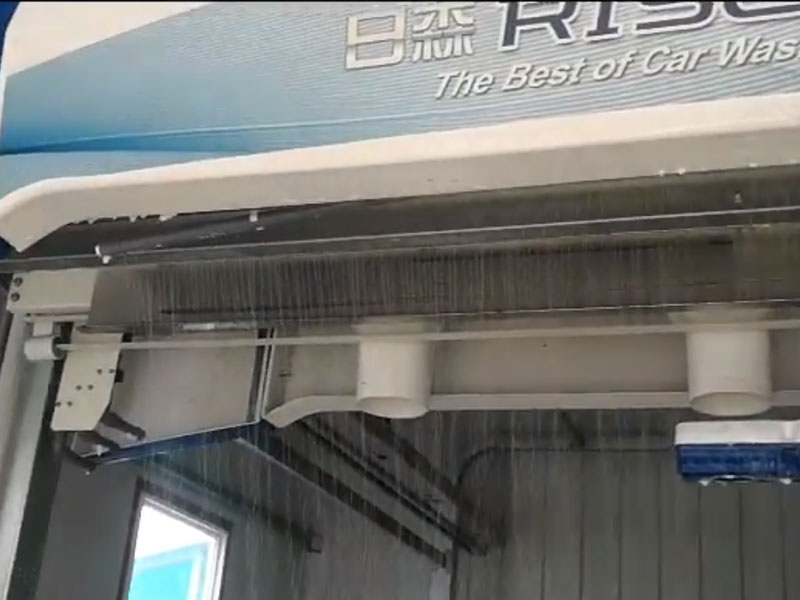

The dryer system consists of 4 air compressors and 4 outlets to effectively dry the car.

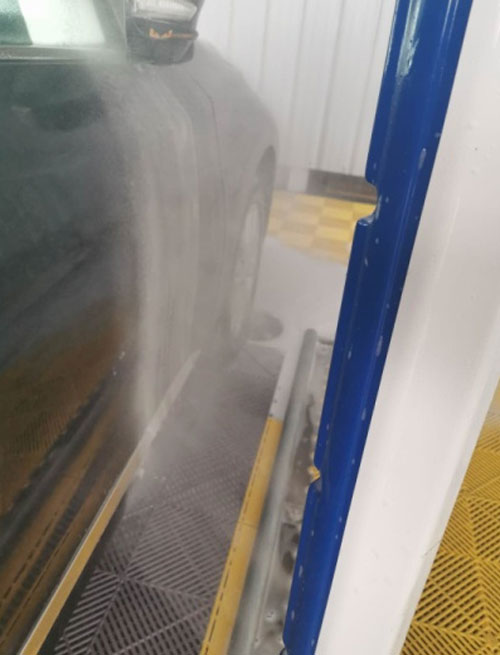

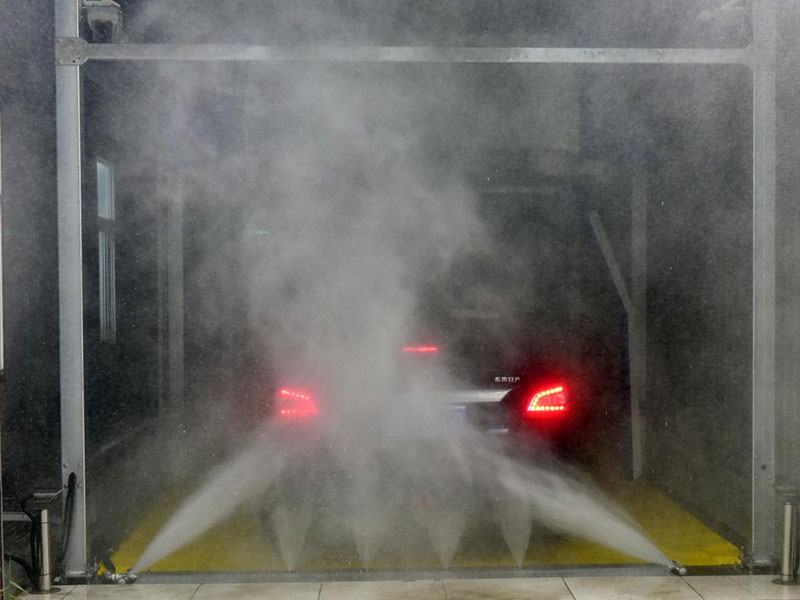

The undercarriage wash system consists of two groups of nozzles on both sides that are responsible for cleaning wheels and lower parts of the car body, and a set of nozzles underneath for cleaning the chassis.

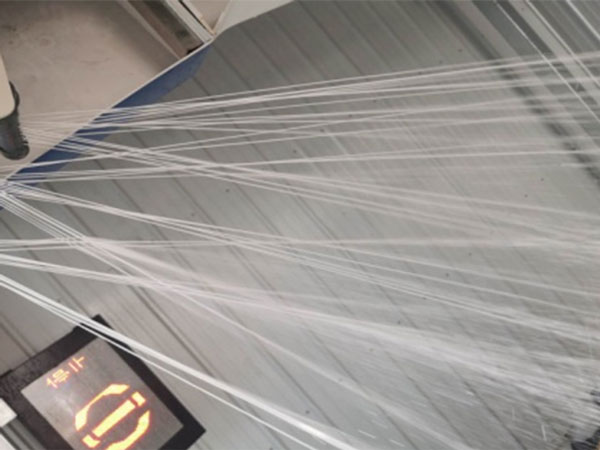

Nozzles can deliver high volume of water with pressure up to 90 kg to efficiently remove dirt.

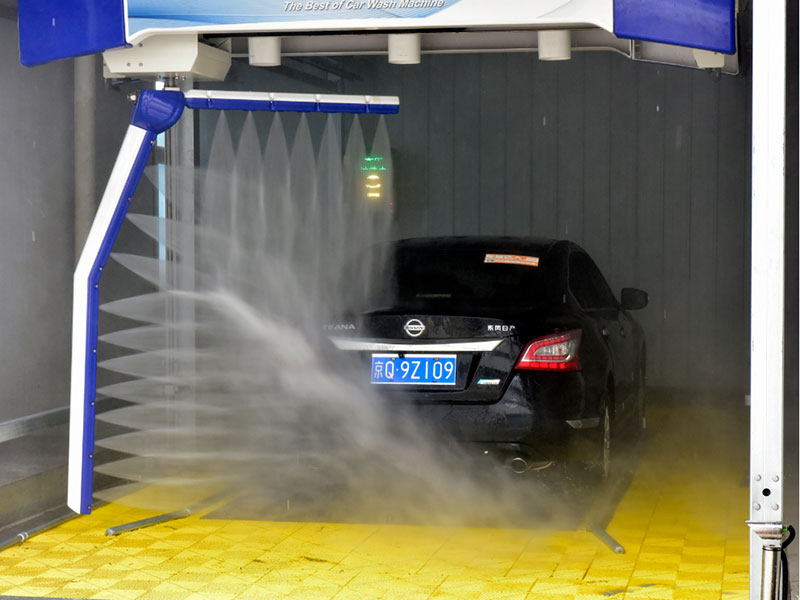

The oscillating design of the robotic arm largely reduces the offset effect of the vertical and horizontal water spray, which can optimize the washing performance.
The ultrasonic sensors which measure the car length and position the car help keep a safe distance between nozzles and the car body and clean rearview mirrors with a robotic arm.
The ultrasonic sensors are proof against interference of water spray and thus ensure safety of the car washing process.
The multiplexing arm can do the pre-soak wash, high-pressure wash and wax spray job. It takes only 27 seconds for the arm to complete a full rotation.
The two-way convey design enables the machine to keep a safe distance from different types of cars, which ensures safe car wash with proper pressure at a constant speed.

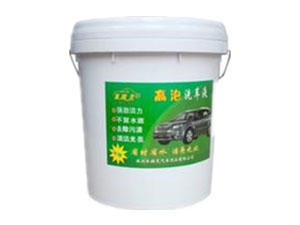

The car shampoo containing broad-spectrum surfactant can produce thick and rich snow foam to effectively remove dirt and debris.
Thick foam closely clings to dirt and softly life it away.
The machine delivers mirror-like shine while effectively cleaning the car.
The machine automatically blends the car shampoo and water at a proper ratio and atomizes mixture to achieve fine spray distributions to cover the whole car exterior, even recesses, to effectively lift away dirt. 20 to 25 ml waterless spray for each car helps you control the cost.
The crystal coating wax can form high polymer sheeting on the surface of paintwork which produces a mirror-like shine effect and protects the paint after combining with soft water.
The crystal coating meets the needs of enhancing water beading and repellency, delivering mirror-like shine and protecting paint from acid rain, pollution and the ultraviolet ray.

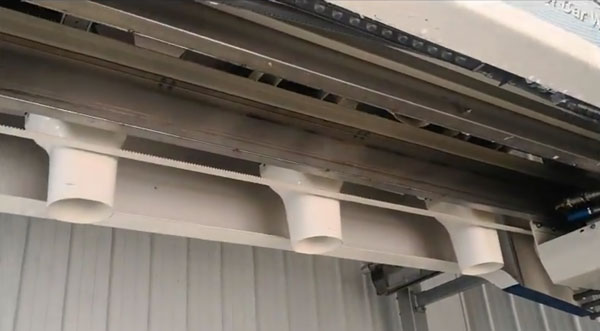

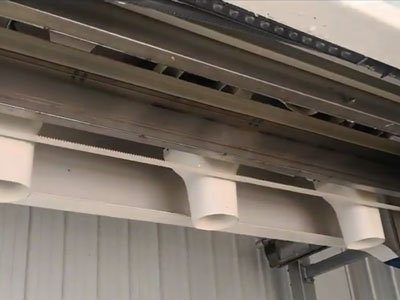

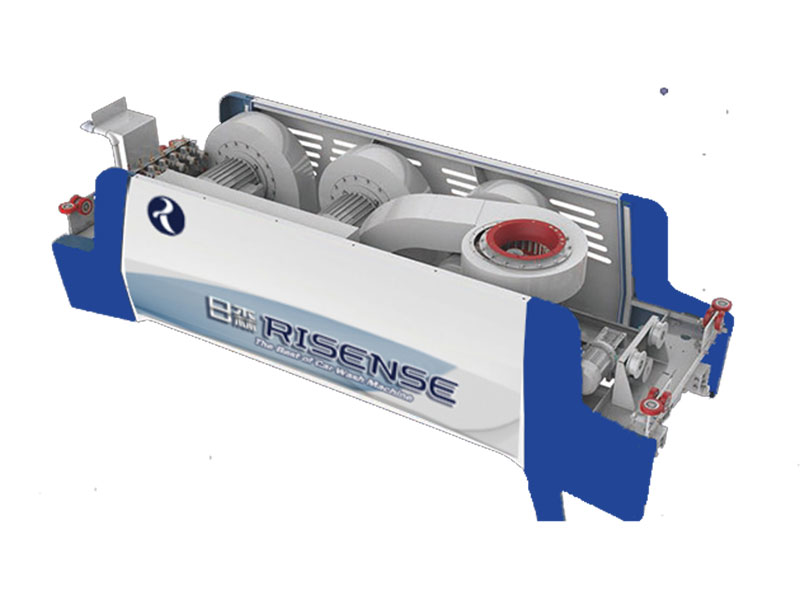

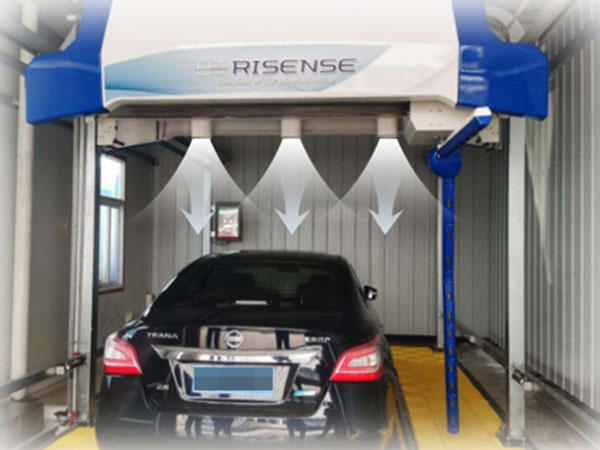

The high-pressure air dryer system of the single arm touchless car wash machine HP-261 consists of 4 air compressors and 4 outlets. Based on aerodynamics, the air dryer combinations applying the state-of-the art technology can produce the air power as strong as a wall and deliver more than 80% drying effect
Process
Undercarriage wash – foam – top high-pressure rinse– side high-pressure rinse – wheel wash – wax spray – ceramic spray – air drying
One vehicle requires only 20-50ml cleaning detergent. The quantity can be precisely controlled by the program of the computer. This kind of car washing equipment is equipped with different liquid mixing programs so that the proportion of different kinds of ingredients can be automatically controlled without manual operation. This system is a kind of ‘chemical lab’. By mixing and atomization, the liquid can be granulized. After spraying and covering the surface of the vehicle, the liquid can fully contact with the dirt, including that was stuck in the gap.
The protective paint can protect the vehicle from being damaged by acid rain, pollution and UV. The diamonds coating wax can form a layer of high molecular polymer which can become solid protective film after mixing with soft water. Thus, the paint can be more shiny and colorful and the service life can be longer.
According to aerodynamics, there will be powerful air curtain during the running of car wash equipment by reasonable arrangement. Thus, over 80% of the water on the surface of the vehicle can be dried. This can be safe and reliable.
With a reputation for high-quality and reliability, Qingdao Risense Mechatronics is a car wash equipment manufacturer with almost a decade of design and production experience.
