    Rollover Car Wash Machine
    Vehicle Washing Machine Manufacturer
    • Home
    • Vehicle Washing Machine
    • Automatic Car Wash System
    • Touchless Car Wash Systems
    • Single Arm Touchless Car Wash Machine HP-232

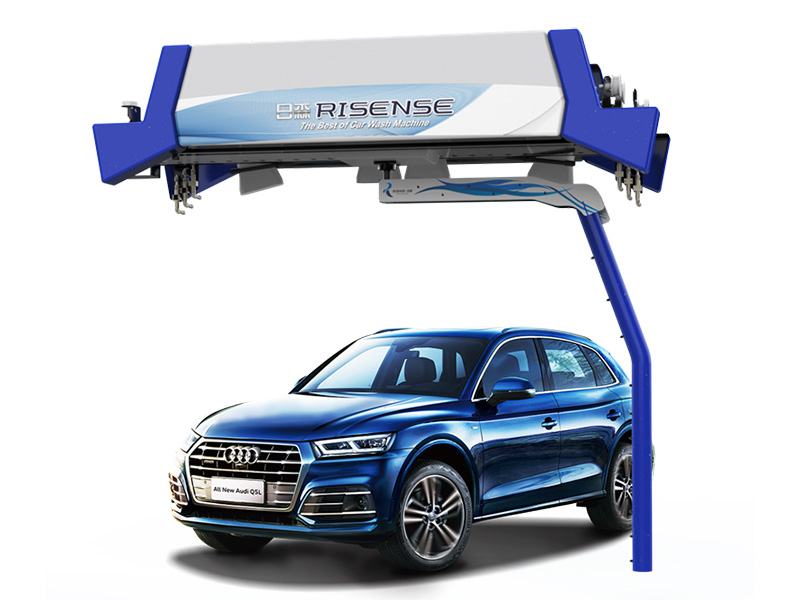

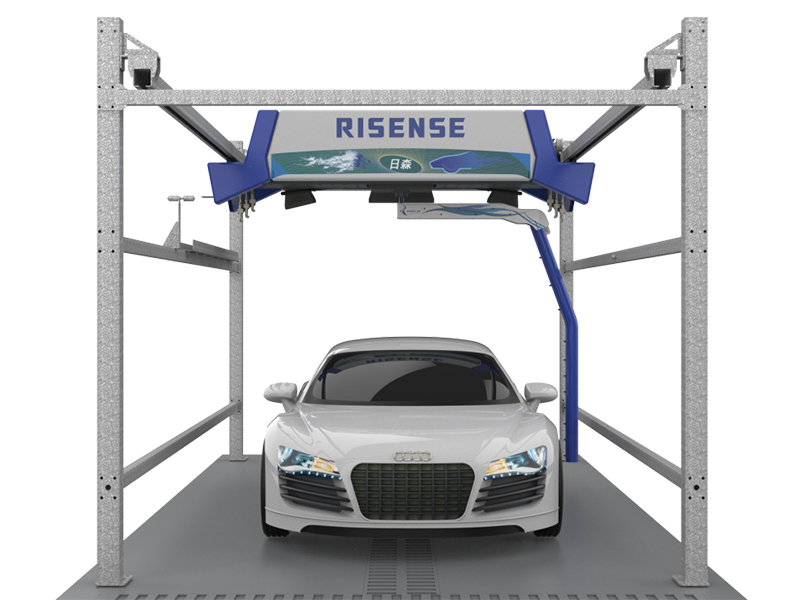

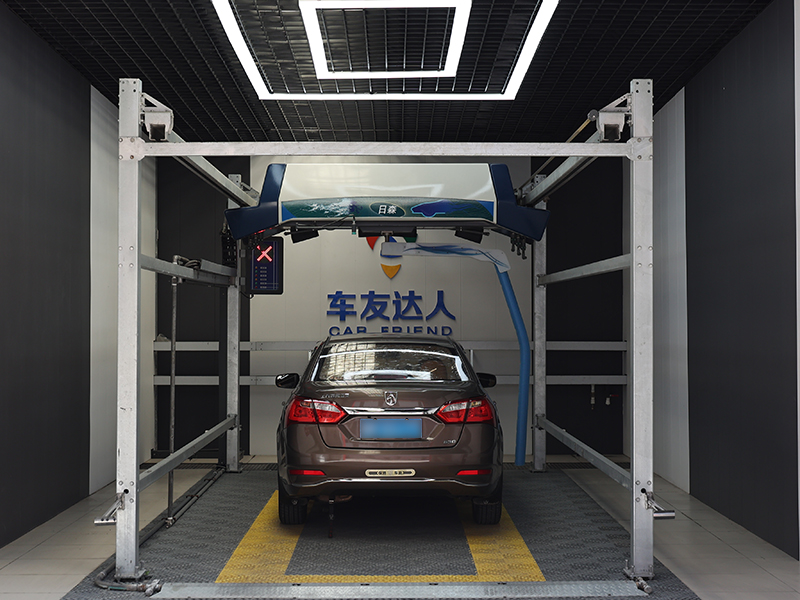

    Single Arm Touchless Car Wash Machine

    HP-232

    Single Arm Touchless Car Wash Machine

    The HP-232 single-arm touchless car wash machine utilizes an ultrasonic intelligent detection system, ensuring 360° thorough cleaning without any blind spots. It boasts features such as chassis cleaning, vehicle body pre-wash, touch-free liquid cleaning, high-pressure rinsing, wax application and powerful drying, offering a comprehensive and fully automated intelligent touchless car washing solution.

    Optional equipment for touch-free car wash machine: vacuum cleaners, floor mat cleaners, water recycling systems, air inflators, and powerful drying systems.

    Request a Quote
    • Single Arm Touchless Car Wash Machine
    • Single Arm Touchless Car Wash Machine
    • Single Arm Touchless Car Wash Machine
    • Single Arm Touchless Car Wash Machine
    • Single Arm Touchless Car Wash Machine
    • Features
    • Parameters
    • Main components
    • Car washing process
    Features
    • Robust and minimalist exterior design
      The overall structure is sleek, with a well-designed carriage head for smooth movement, ensuring high equipment stability and safety. The materials are carefully selected to balance robustness and lightweight construction, emphasizing simplicity and durability.
    • Effective 360° rotating arm cleaning
      Computer-aided engineering (CAE) assisted simulation design optimizes the nozzle angles and poSITIons to prevent water flow collisions and maintain cleaning effectiveness. Intelligent vehicle distance estimation, along with safety collision protection, enables high-pressure water pre-wash, rinsing, and spraying of coating wax.
    • Strong corrosion resistance
      The frame steel adopts Q235 international standard profiles with a thickness of 4mm. Surface treatment includes acid pickling, phosphating, and hot-dip galvanizing, providing strong corrosion resistance. The corrosion resistance is rated at level 10 according to the SGS salt spray test report.
    Technical Parameter
    Model HP-232
    Overall dimensions 6400*3310*3150mm
    Installation size 7600*3500*3300mm
    Car wash size 5300*2200*2050mm
    Wash bay size 3500*1800*2300mm
    Voltage 3-phase 380V 50Hz
    Power Total power: 42kW, max. working power: 23kW
    Water pump pressure 6-8MPa
    Air source pressure 0.5-0.7MPa
    Available car to wash Car/coach/business car within 7 seats
    Car washing size 5300*2200*2050mm
    Car wash capacity Normal washing:3min/car fine wash: 5min/car
    Water consumption 208L/car
    Power consumption 1.13kWh/car
    Shampoo consumption 35-60ml/car
    Wipe-free detergent shampoo consumption 30-50ml/car
    Wax consumption 30-40ml/car
    Configuration
    Frame Hot-dipped galvanized steel frame
    Frequency converter Delta
    Touch screen KINCO
    Electric control system Delta
    High pressure plunger pump TLD
    Ultrasonic sensor P+F
    Photoelectric sensor Banner from the USA
    Proximity sensor P+F
    Contactor Schneider
    Metering pump Newdose

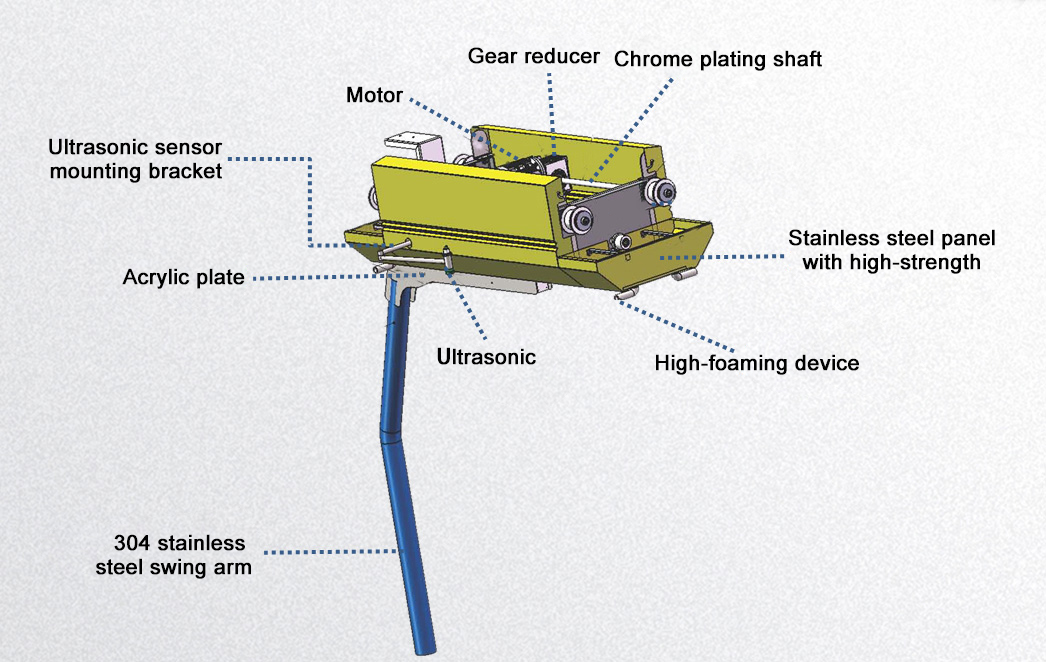

    Main components
    • Single Arm Touchless Car Wash Machine HP-232

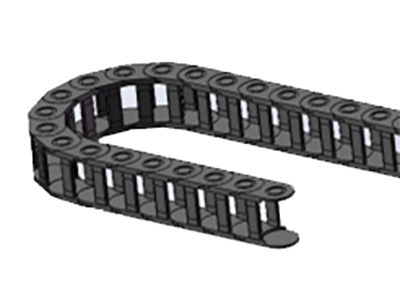

    • Single Arm Touchless Car Wash Machine HP-232Igus® drag chain (Germany)

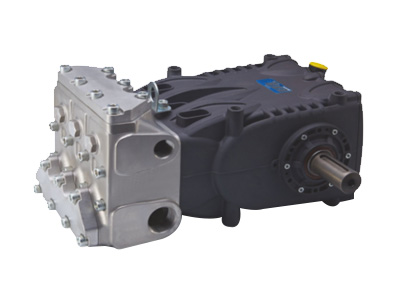

    • Single Arm Touchless Car Wash Machine HP-232TLD high-pressure water pump (Sino-British)

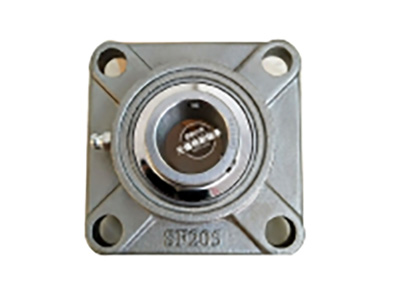

    • Single Arm Touchless Car Wash Machine HP-232SK stainless steel bearings (Japan)
    • Single Arm Touchless Car Wash Machine HP-232Stepper drive

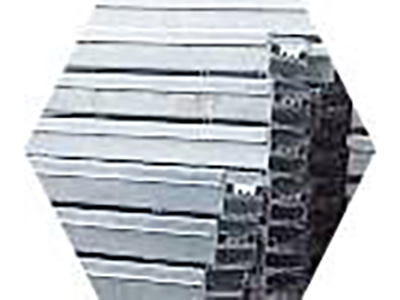

    • Single Arm Touchless Car Wash Machine HP-232Hot-dip galvanized frame (4mm of wall thickness, Q235, salt spray level 10)

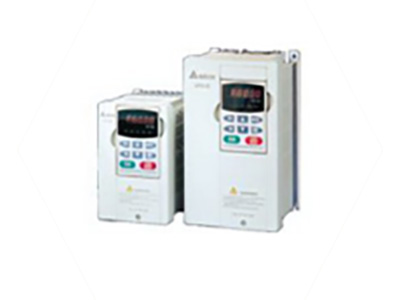

    • Single Arm Touchless Car Wash Machine HP-232Delta inverter (Taiwan)

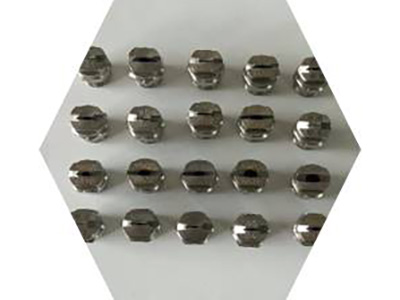

    • Single Arm Touchless Car Wash Machine HP-232High-strength 416 stainless steel nozzle

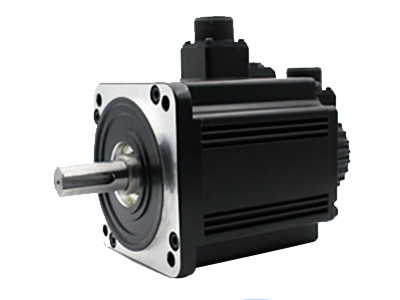

    • Single Arm Touchless Car Wash Machine HP-232Servo motor

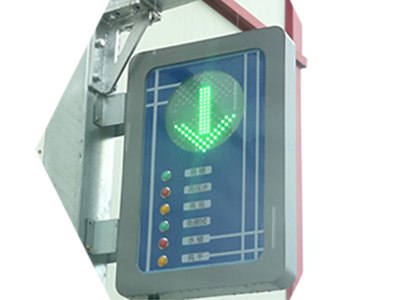

    • Single Arm Touchless Car Wash Machine HP-232LCD display (washing modes, parking, status)

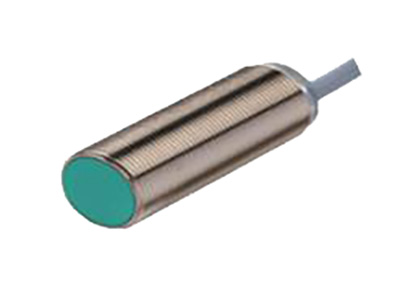

    • Single Arm Touchless Car Wash Machine HP-232 Baumer P+F photoelectric sensor (Germany)

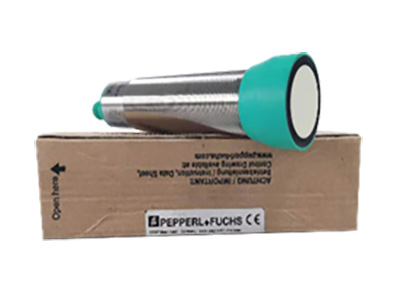

    • Single Arm Touchless Car Wash Machine HP-232Baumer P+F ultrasonic sensor (Germany)

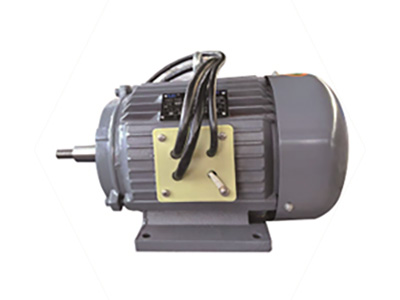

    • Single Arm Touchless Car Wash Machine HP-232TLD waterproof motor IP67 (Sino-British)

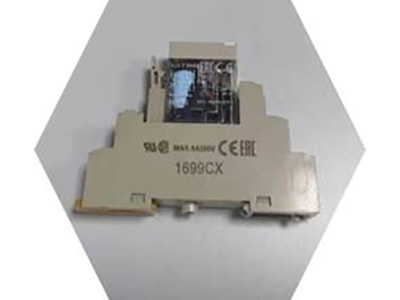

    • Single Arm Touchless Car Wash Machine HP-232 Omron relay (Japan)

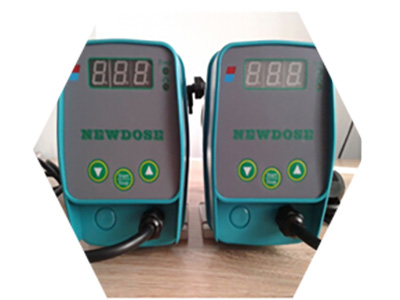

    • Single Arm Touchless Car Wash Machine HP-232Newdose liquid dosing pump (Italy)
      Can precisely control the dosage of the foam, rinse-free liquid, and coating wax. (Italy)

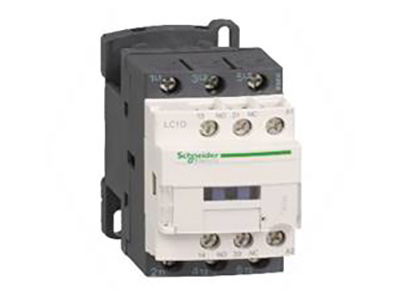

    • Single Arm Touchless Car Wash Machine HP-232 Schneider contactor (France)
    Car washing process

    Bottom washing — contour pre-washing — touch-free washing—high-pressure rinsing—foam spraying — high-pressure rinsing — wax spraying — powerful air drying

    • Single Arm Touchless Car Wash Machine HP-232

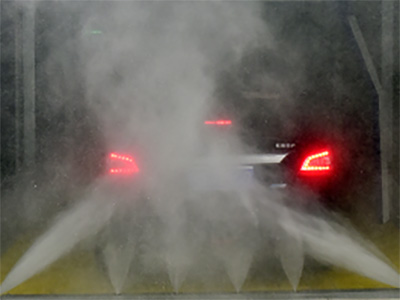

      Bottom spray system

      The innovative bottom spray system with its powerful 90kg high-pressure rinse ensures a thorough clean of your vehicle's chassis and wheels.

      • Blasts away dirt and grime from the wheels, vehicle sides, and undercarriage with ease.
      • The dual lateral water jets focus on wheel sides and skirts while forward-facing jets target the vehicle's underside.
    • Single Arm Touchless Car Wash Machine HP-232

      High-pressure rinsing

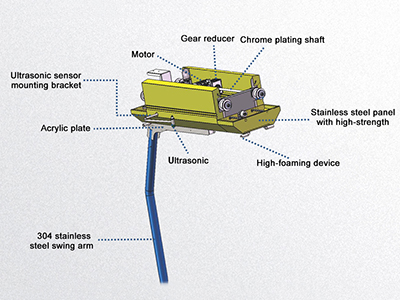

      • 360°Rotating arm Equipped with multiple spray nozzles to complete pre-washing, high-pressure rinsing, and wax spraying of the car body. Each cycle is achieved in only 27 seconds, speeding up cleaning without skimping on the quality of the finish.
      • Ultrasonic sensor system Through the ultrasonic sensor system, the size of the car body and the parking distance can be accurately located, and the rearview mirror can be repeatedly cleaned.
        Ultrasonic detection can eliminate water mist interference, effectively avoid damage to the car, and make cleaning safer.
      • Optimized water flow The 7-shaped swing arm adopts advanced design, which can optimize the impact of water flow in the horizontal and vertical directions to the greatest extent, achieving a better cleaning effect.
    • Single Arm Touchless Car Wash Machine HP-232

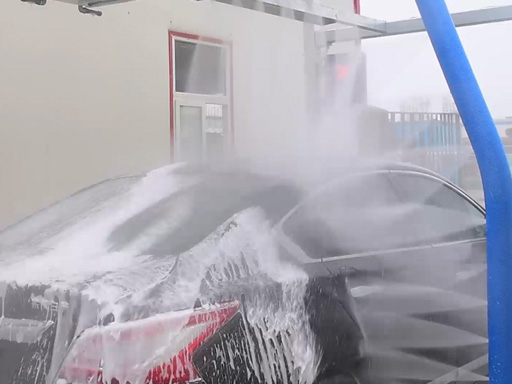

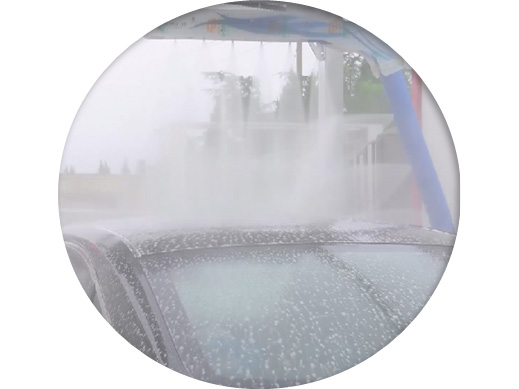

      Touch-free car wash

      • Automatic proportioning and spraying The liquid is automatically proportioned and sprayed, with 20-50ml used per car. The metering and proportioning system precisely controls every cost.
      • Water-liquid automatic mixing and high-pressure spraying Through these steps, micro-particle water mist is formed, which is sprayed and covers the car body surface. It can more thoroughly contact the dirt, including the gaps of the car body, and can penetrate evenly.
    • Single Arm Touchless Car Wash Machine HP-232

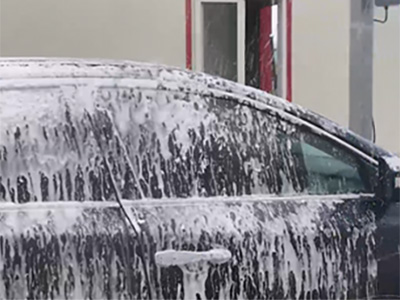

      Foam spraying

      • Dust and stains cleaning High-foaming, polishing and nourishing car wash liquid can effectively remove dust, dirt and other stains from the car body.
      • Car exterior maintenance Adopts a wide-spectrum active ion agent for conditioning and gloss enhancement.
      • Spotless polishing Achieves both polishing and protection simultaneously during the cleaning process, resulting in an even shinier paint surface.
    • Single Arm Touchless Car Wash Machine HP-232

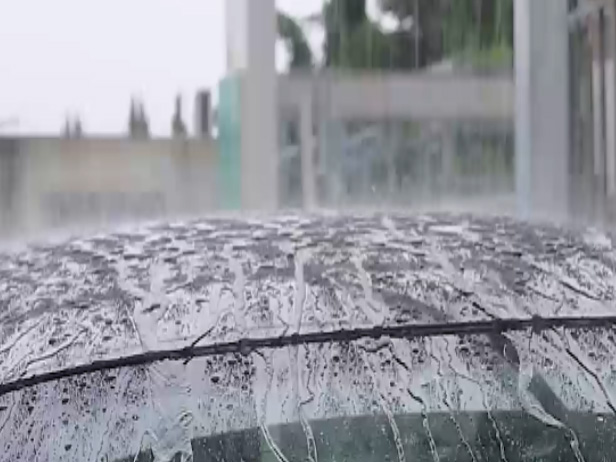

      Wax spraying

      • Paint protection The wax application forms a protective layer on the vehicle's paint surface, which later acts as a durable protective film.
      • Shiny finish In addition to protecting against acid rain, pollution, and UV damage, the wax also boots the car's paint brightness.
    • Single Arm Touchless Car Wash Machine HP-232

      Air drying system

      Fast drying is made possible with 4 powerful built-in air dryers as well as 4 air outlets, which makes use of leading drying technology to guarantee at least 80% drying effect.
