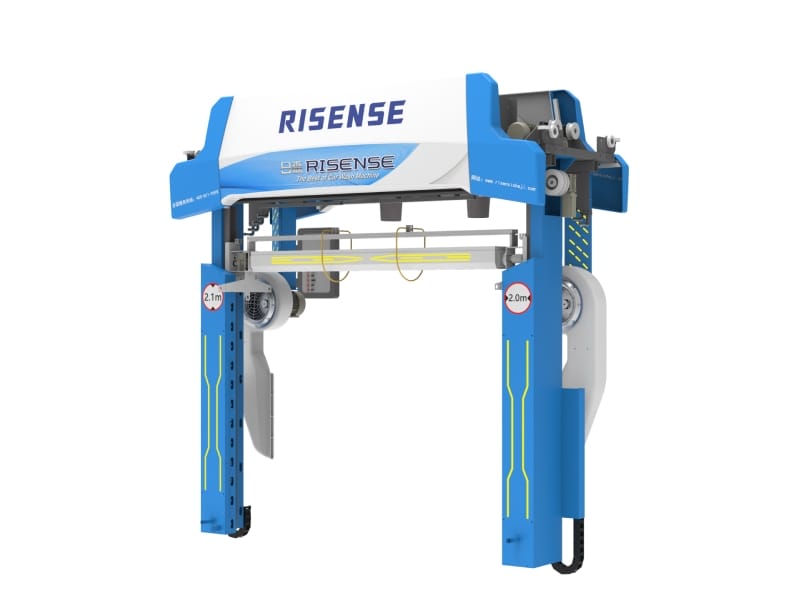

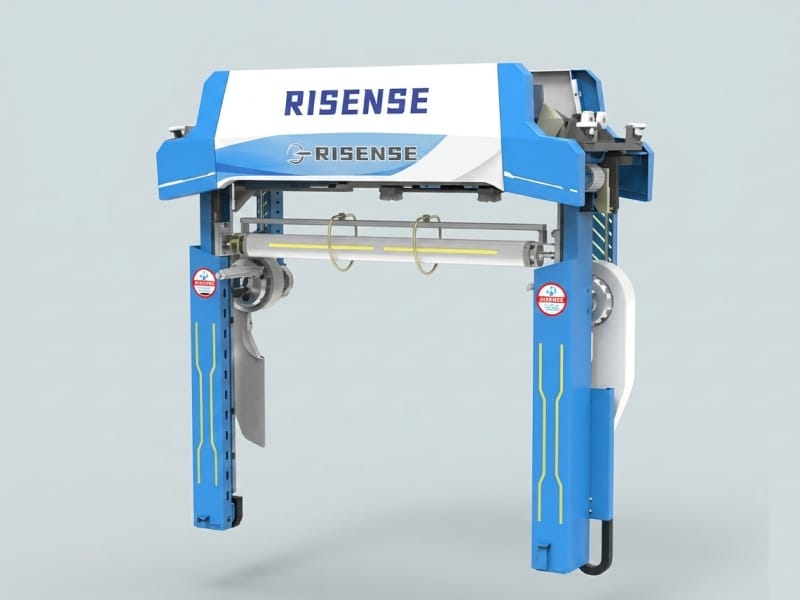

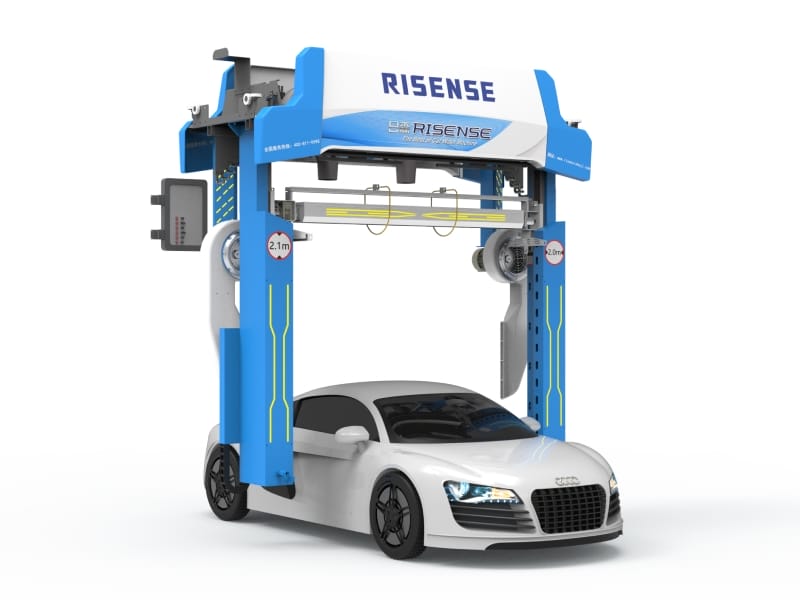

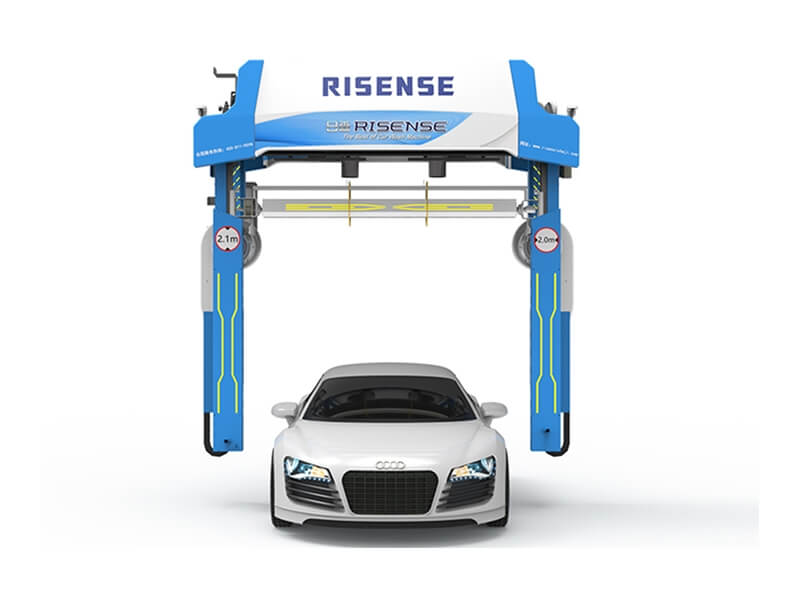

Double Arm Touchless Car Wash Machine

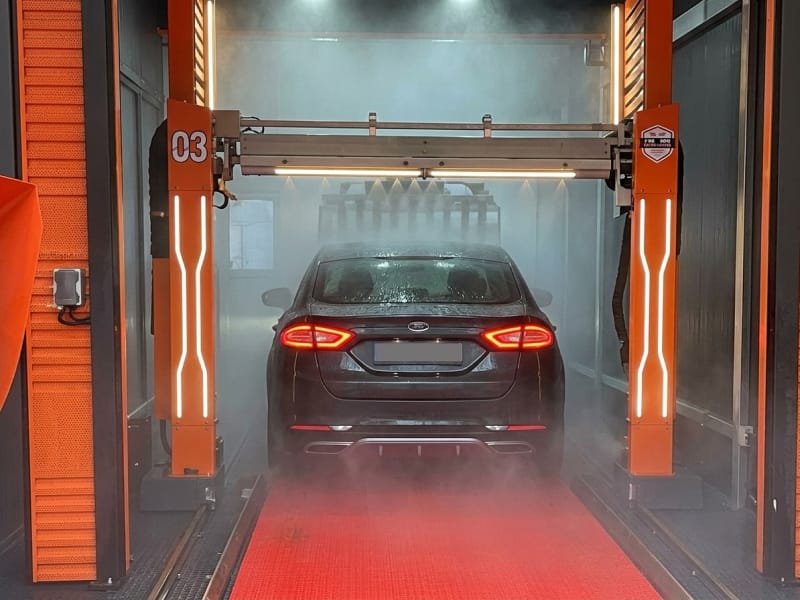

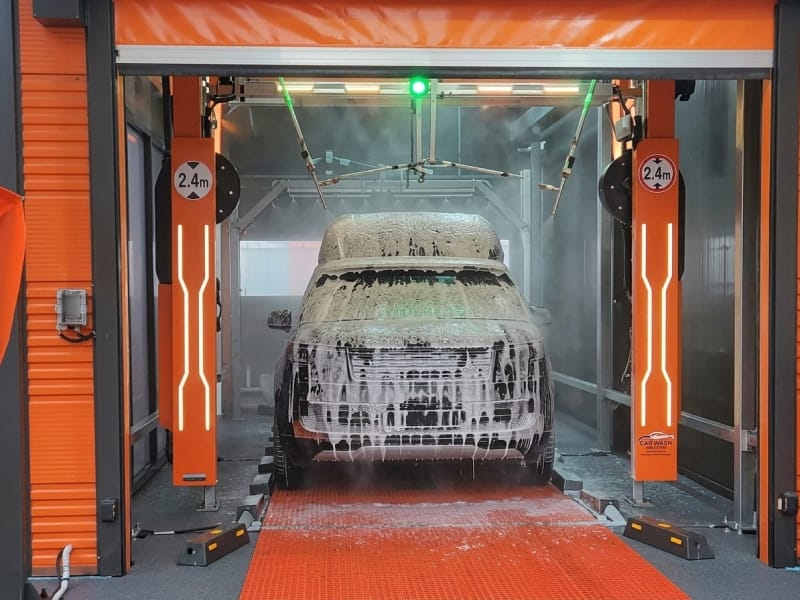

The double arm touchless car wash machine features CAE (computer-aided engineering) high-pressure spraying system, smart distance measuring, anti-collision function, and optional AI-powered vehicle contour detection is available. The contour-following high-pressure spraying ensures even cleaning on the top and optimal pressure, distance and speed. The double arm touchless car wash machine can perform pre-washing, rinsing and wax spraying.

Request a Quote

Specifications
Advantages
Process

Technical Specifications

Model	HP-262
Dimensions (mm)	8180×3750×3610 (L×W×H)
Installed area (mm)	8300×3800×3650 (L×W×H)
Installed area (mm)	Interior: 3500×1800×2300 (L×W×H)
Power requirements	380V 50HZ, three-phase system
Power	Total:46kw;Max. operating power: 24kW
Pump pressure	7-10MPa
Air requirement	0.7MPa
Applicable vehicles	Sedans､vans､MPVs, etc. (up to seven seats)
Max. washing range (mm)	5300×2200×2050(L×W×H)
Washing time	Regular: 3min/vehicle Upgraded: 6min/vehicle
Shampoo spraying systems	3
Touchless agent spraying systems	1
Wax spraying systems	1

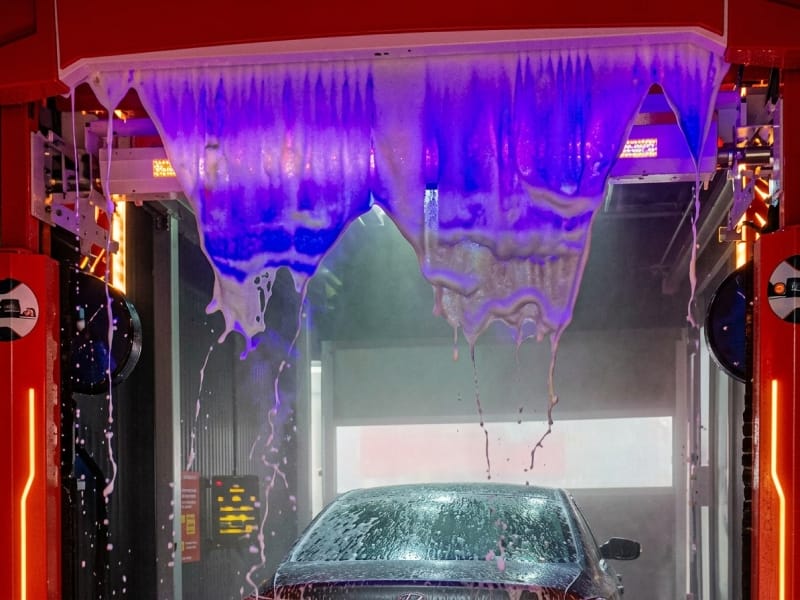

Colored foam spraying systems	1
Agent A spraying systems	3
Agent B spraying systems	3
Fixed drying systems	4
Smart data integration	Monitoring, inspecting, operation
Self-diagnosis	Yes
Drying	Yes

Configurations

Timing belt	Gates Corporation
Cable carrier	igus GmbH
High-pressure water pump	Trunde

Advantages

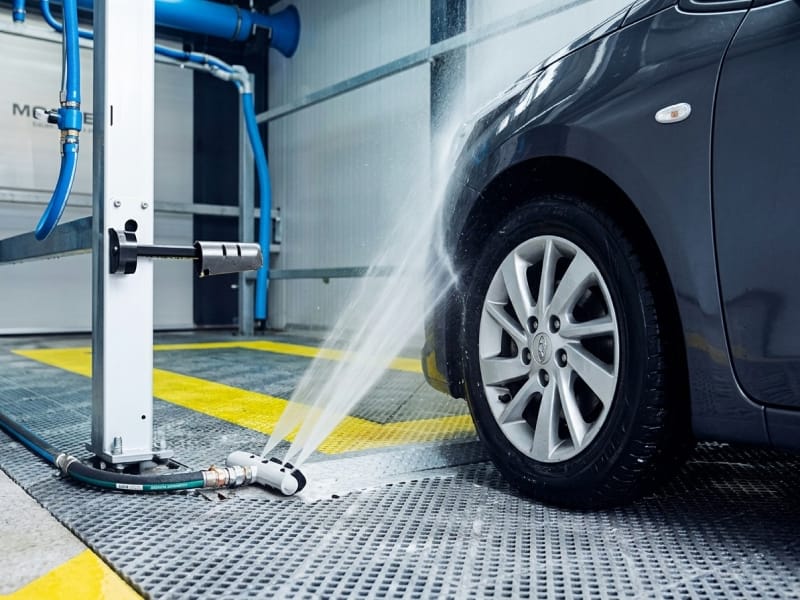

CAE high-pressure spraying system Computer aided engineering (CAE) allows simulation of spraying angles and positions, preventing collision between opposing water jets. Smart distance measuring and anti-collision functions are included, ensuring optimal pressure, distance and speed. The high-pressure spraying system can perform high-pressure pre-washing, rinsing, and wax spraying.

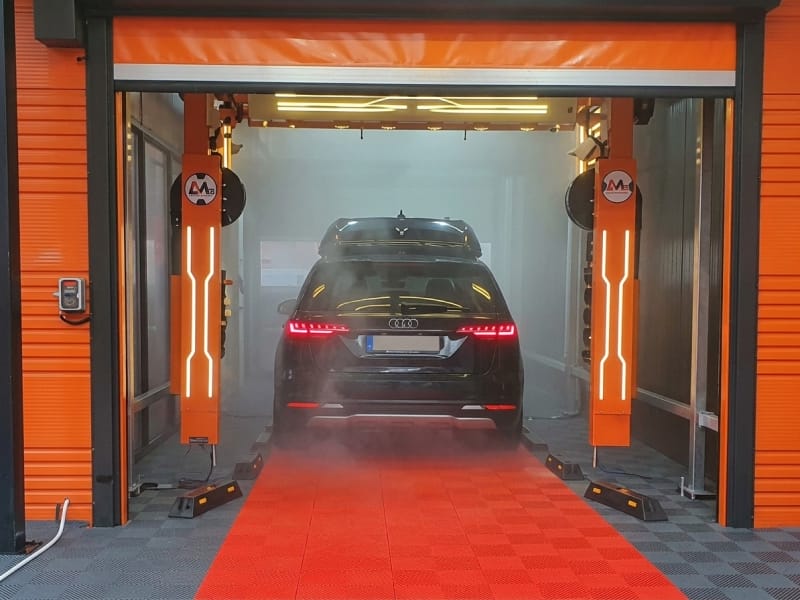

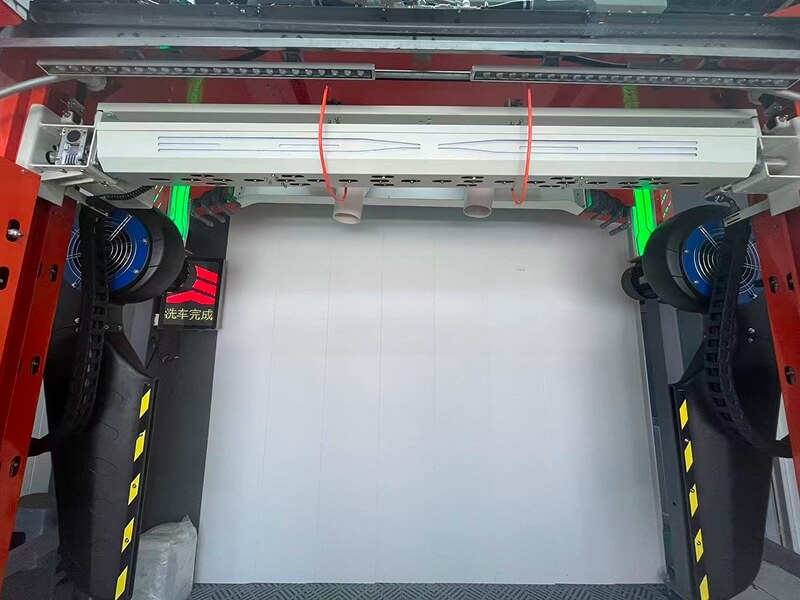

Integrated low-noise fan The integrated fan travel with the main unit to achieve efficient and even drying.
