    Rollover Car Wash Machine
    Vehicle Washing Machine Manufacturer
    • Home
    • Vehicle Washing Machine
    • Automatic Car Wash System
    • Rollover Car Wash Systems
    • Rollover Car Wash Machine, CF-380 Plus (Smart Intelligent-Screen)
    Rollover Car Wash Machine

    CF-380 Plus (Smart Intelligent-Screen)

    Rollover Car Wash Machine

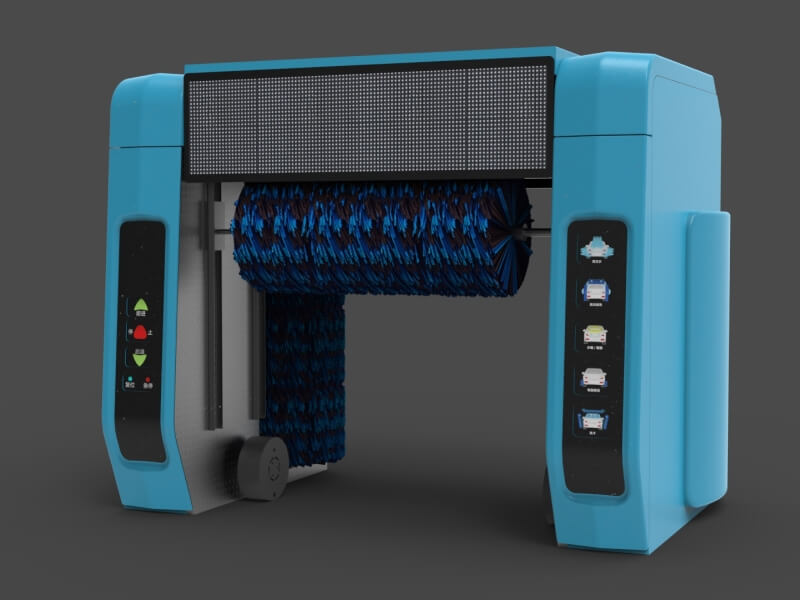

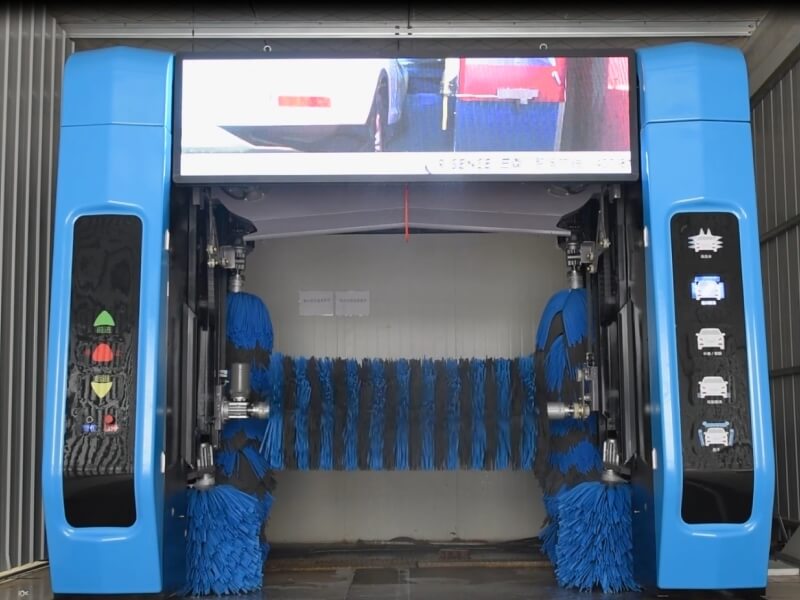

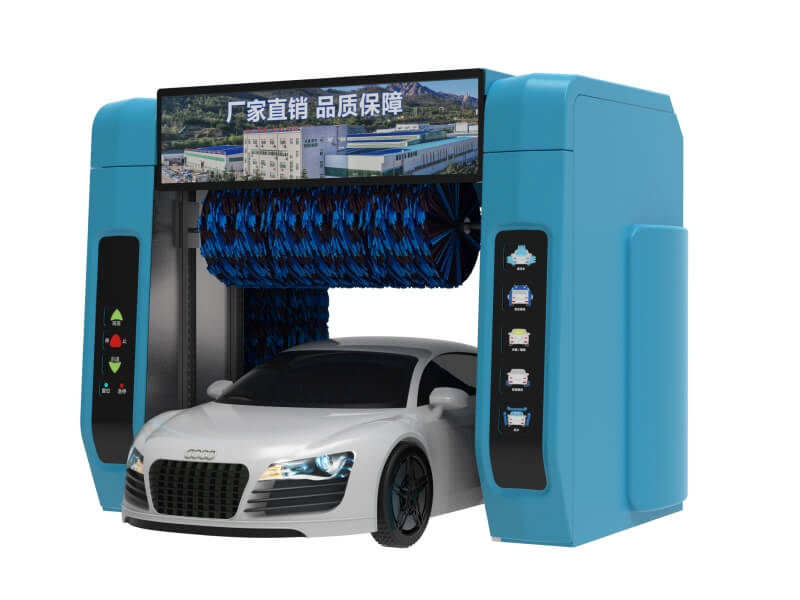

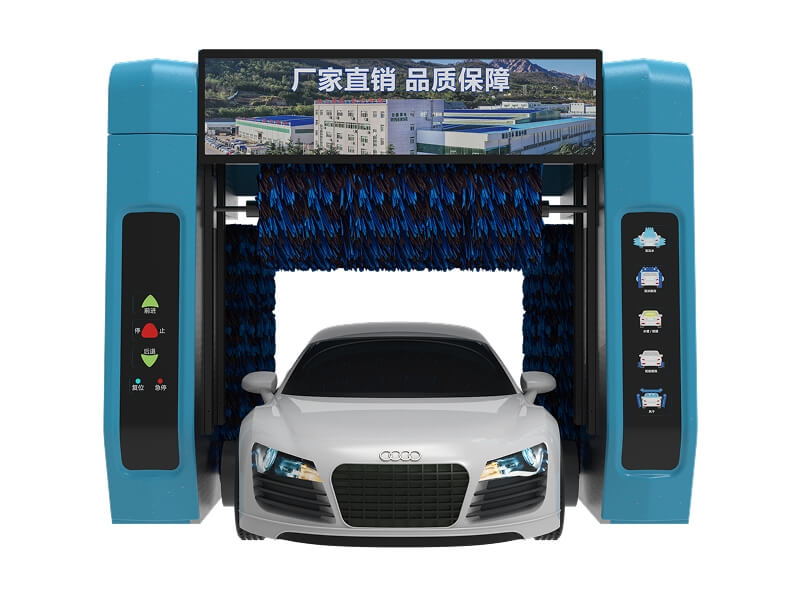

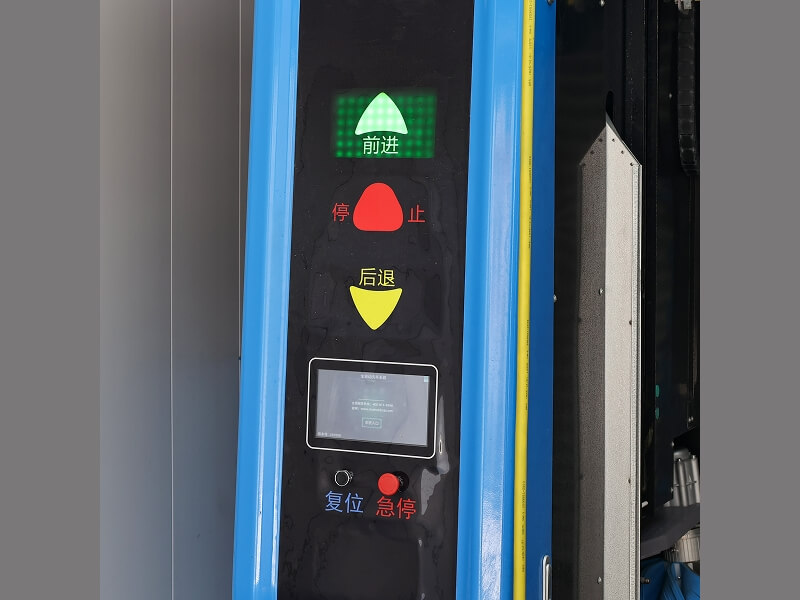

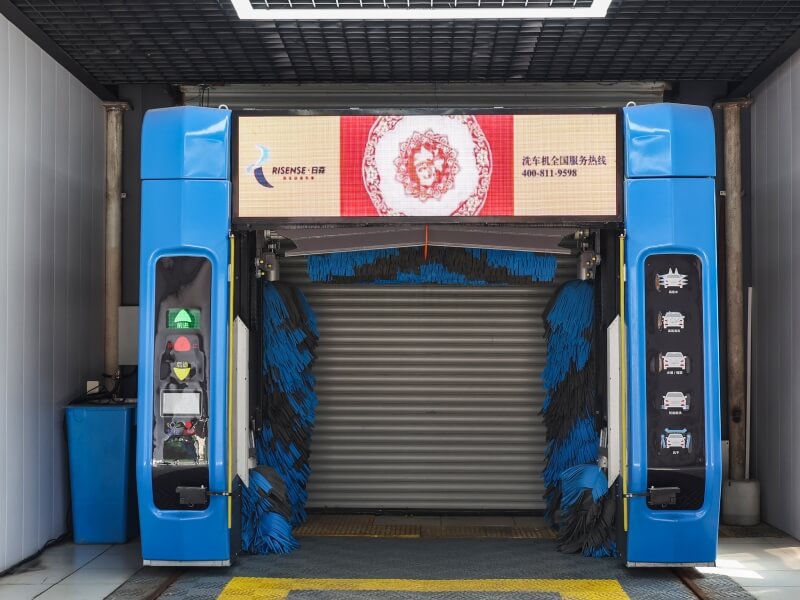

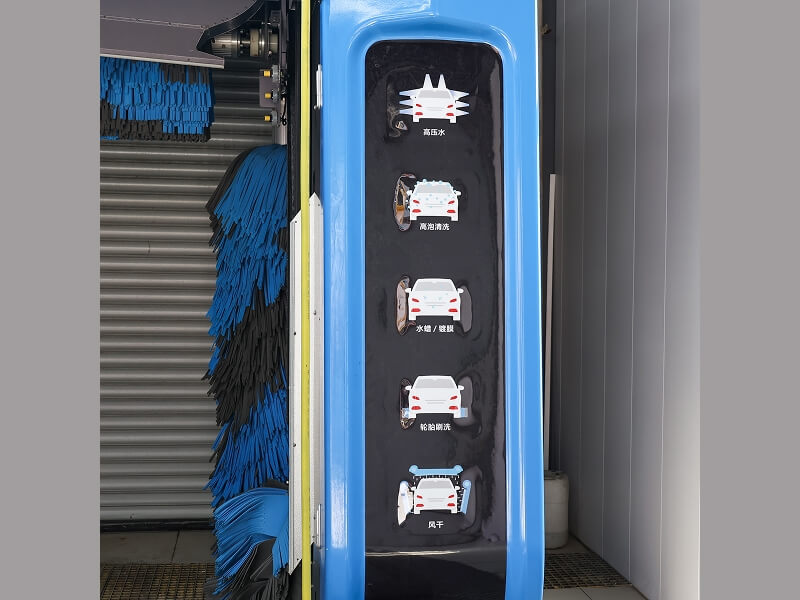

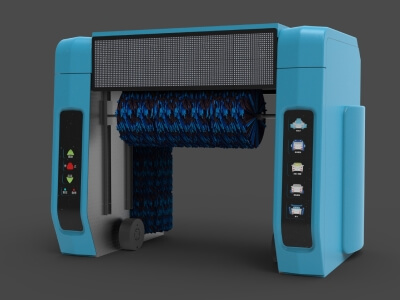

    The rollover car wash machine features intelligent screens: The top HD screen can play promotional videos; the right screen ensures proper vehicle positioning with smart reminder and voice prompt function; the left screen displays washing progress. The dynamic screen combinations make effective advertising.

    • P5 outdoor panels for advertising.
    • Self-operating, self-serve without human intervention.
    Request a Quote
    • Rollover Car Wash Machine
    • Rollover Car Wash Machine
    • Rollover Car Wash Machine
    • Rollover Car Wash Machine
    • Rollover Car Wash Machine
    • Specifications
    • Advantages
    • Highlights
    Technical Specifications
    Model CF-380Plus
    Dimensions Main unit (mm) 3200×3600×2935(L×W×H)
    Track (mm) L:9000, W: 3200
    Power Top brush 0.75kW
    Large vertical brush 0.75kW
    Small vertical brush 0.37kW
    Total 21.71kW (all electronic devices)
    Applications Applicable vehicles Sedans, suvs, and vans with up to 10 seats
    Max. Vehicle size (mm) 5400(L)×2100(W, side mirrors included)×2100(H)
    Wash programs One-cycle regular wash
    two-cycle upgraded wash
    three-cycle protective coating wash
    Speed One-cycle regular wash: 3′16″
    three-cycle upgraded wash: 6′46″ (4800mm-long vehicle)
    Operating cost Varies depending on local water and electricity rates
    Water usage 72-95L/vehicle
    Power usage 0.46-0.70 kWh/vehicle
    Shampoo usage 10-15mL/vehicle
    Wax usage 15mL/vehicle
    Installation Installed area 11000(l)×4300(w)×3100(h) Passage areas reserved on both sides for inspection purposes
    Power supply AC380V50Hz (three-phase system)
    Water supply Diameter DN25, flow rate≥80L/min
    Air supply 0.75~0.9MPa flow rate≥0.1m3/min
    Others Surface levelness tolerance ≤10mm
    Configurations
    Components Details
    Frame ZFC alloy non-welded cold-formed frame
    Control unit MCU
    Brushes EVA foam brushes
    Side brush motor Trunde
    Photoelectric sensor Banner
    Contactor Schneider/Siemens
    Proximity sensor Pepperl+Fuchs
    Advantages
    • Rollover Car Wash Machine

      Smart dryingThe wash system detects vehicle types and adjusts drying distances accordingly, which increases drying efficiency and saves energy consumption.

    • Rollover Car Wash Machine

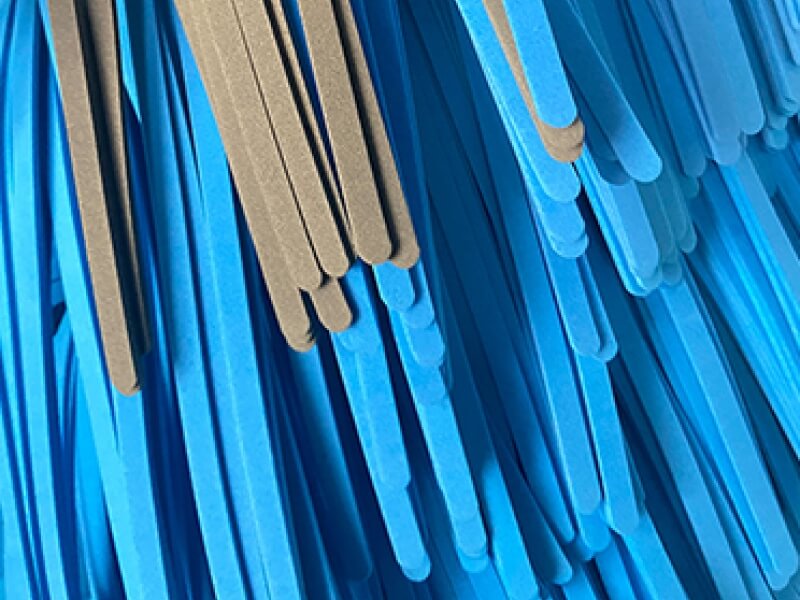

      Specialized brushesThe wash machine employs Japanese EVA foam brushes,which have longer service life than other types of brush and are less likely to accumulate dirty and mud, and won’t cause damage to car paint. The specialized brushes reduce noise caused by friction between brush hair and car paint by isolating sound, creating quiet, relaxing waiting experience for customers.

    • Rollover Car Wash Machine

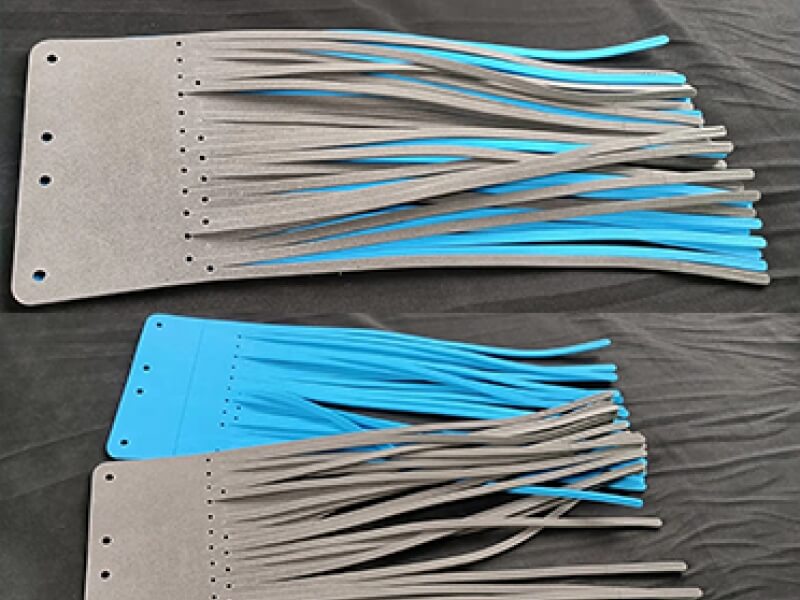

      Easy brush replacementOur brush pieces are individually rivet-connected, making replacement easier. Operators can save downtime by replacing only the damaged piece instead of removing the entire brush.

    • Rollover Car Wash Machine

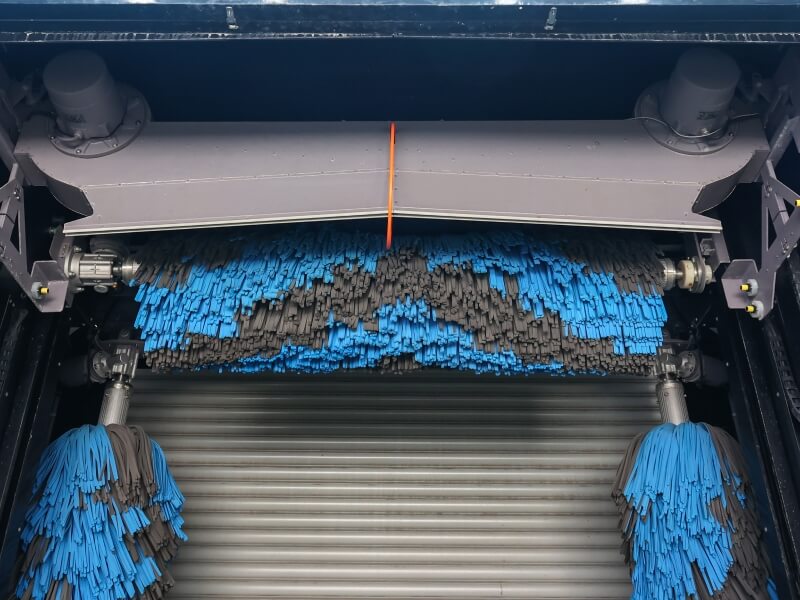

      Vertically-directional top brushesThe top brushes can move vertically to the best position by vehicle types. The automatic computer control ensures precision brushing.

    • Rollover Car Wash Machine

      Smart side brushesSide brushes can recline to optimal position according to the vehicle types fed by sensors.

    • Rollover Car Wash Machine

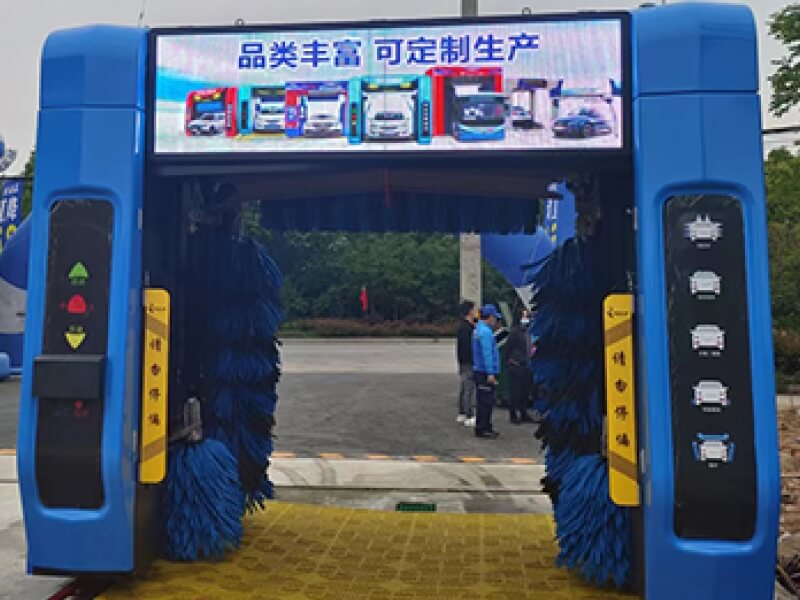

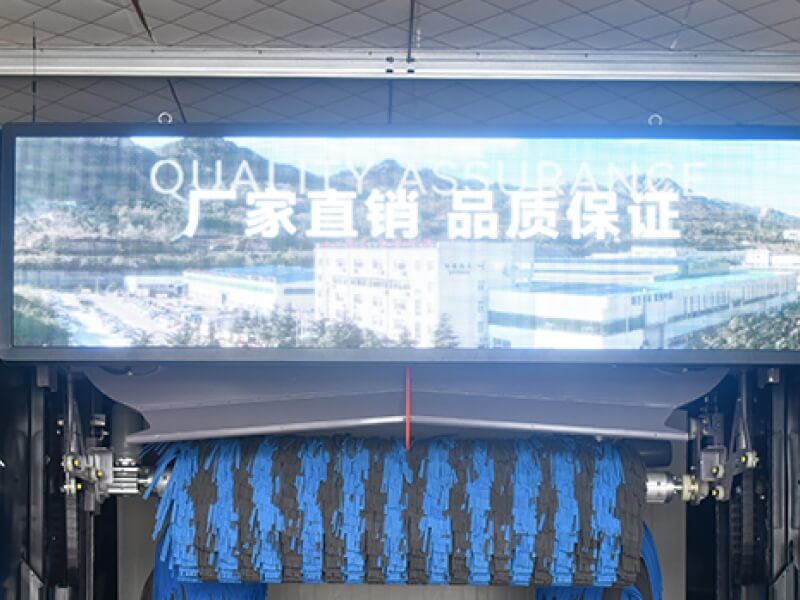

      HD intelligent screenThe HD screen can play promotional videos of both first party and third parties.

    • Rollover Car Wash Machine

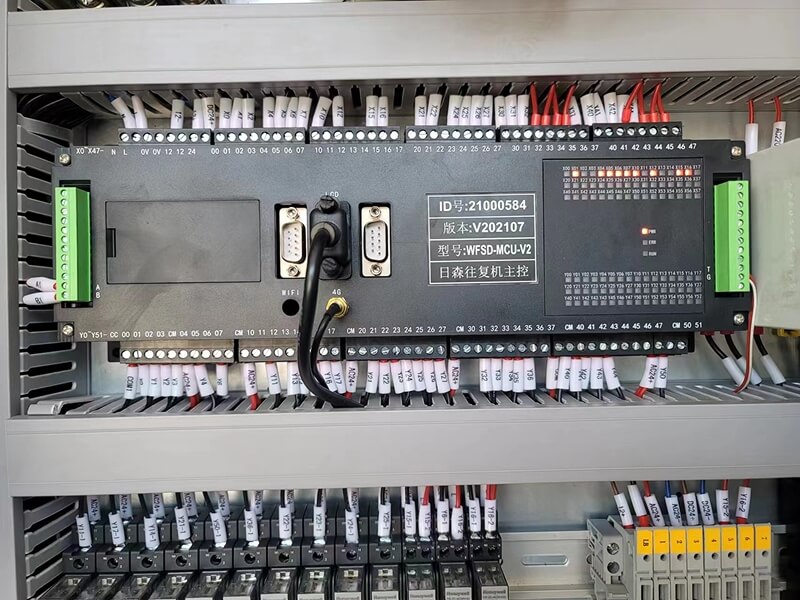

      MCU controlMCU control brings shorter response time and higher performance. The MCU system has relatively low malfunction rate and can be updated remotely by company’ server.

    Highlights
    • Highlights
    • Highlights
    • Highlights
    • Highlights
