This product has been discontinued and removed from our shelves.

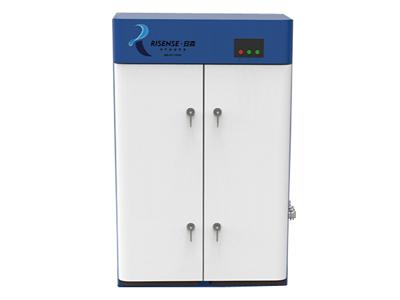

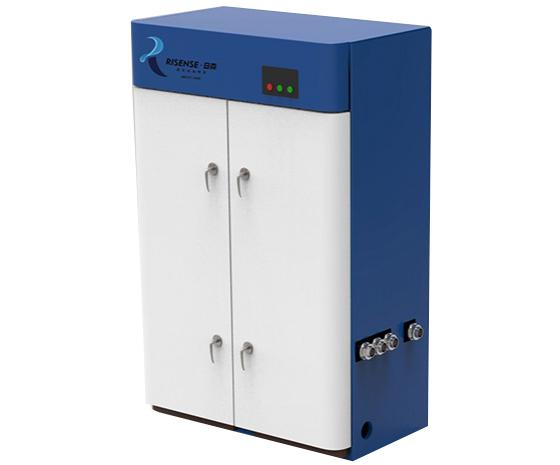

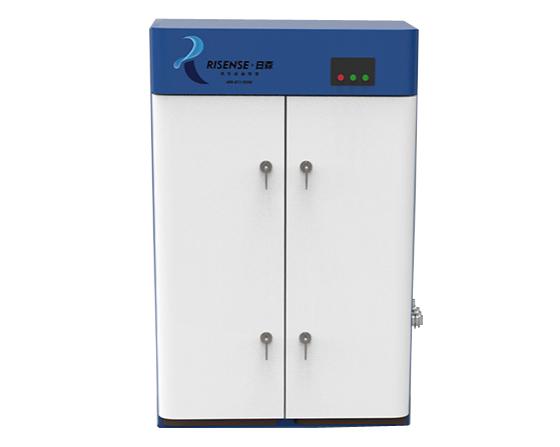

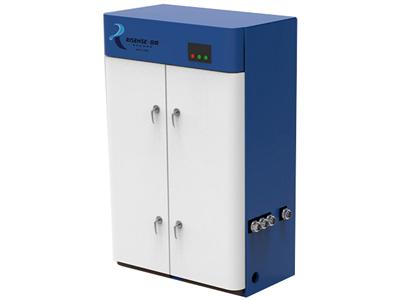

Car Washing Wastewater Treatment Equipment

Car washing wastewater treatment equipment is designed to save water during car washing applications. By pairing with a car wash system, this equipment saves water and electricity, and improves the overall car wash efficiency. This wastewater treatment system features a strong water filtration capacity: a 2-5 ton car wash waste water capacity can be filtered per hour . This equipment also takes up less space, making it great for installation and usage.

Parameters

Model	RSQ (4-6)T
Dimension	LWH: 1400mm×700mm×2250mm
Filtered Water	2, 4, 6T/h
Voltage	Three-phase 380V 50/60Hz
Power	3Kw

Advantages

The car washing waste water circulation equipment has an excellent nitrogen and phosphorous removal effect.
Stable operation, strong impact resistance and excellent sedimentation performance of activated sludge.
An aeration system is equipped inside the sewage tank to adjust the regular aeration period, increase oxygen in the water, and prevent unpleasant odors.
The fully automatic car washing wastewater treatment equipment uses standard relay control circuits to filter, backwash, discharge and replenish water.
The outer structure is welded using galvanized steel, which features a strong corrosion resistance to extend the service life.
The backing varnish color can be customized according to customer requirements.

Configurations

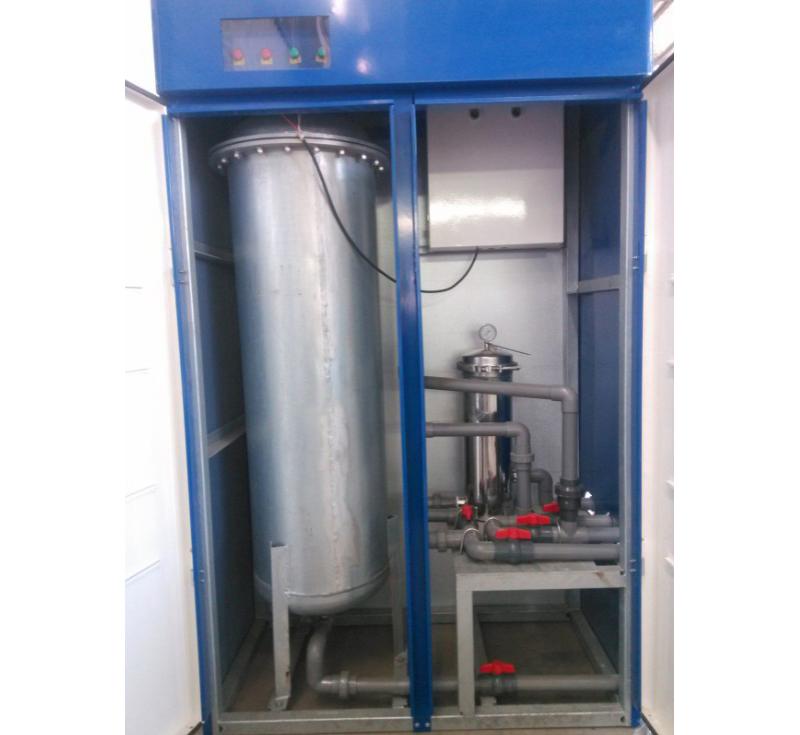

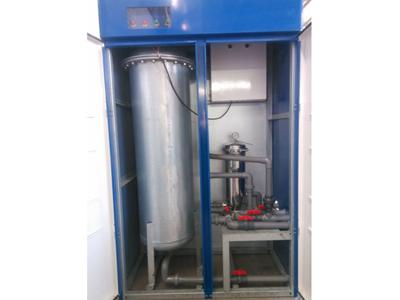

Major Devices
Wastewater treatment main frame	1 set
Security filter	1 set
Biological bacterium inside the tank	1 set
Water circulation pump	1 set (two pumps)
Water circulation treatment pipeline	1 group
Sewage tank	1 (user is responsible for the construction)
