- Automatic Car Wash Equipment Type HP-220
This product has been discontinued and removed from our shelves.

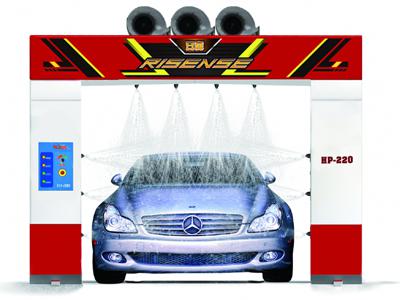

The automatic car wash equipment type HP-220 is the upgraded version of our high-pressure water wishing machine HP-210, as it features an added dryer. After the car is rinsed, the drying system will automatically start to remove water on the vehicle surface, making it convenient for the subsequent manual cleaning. The following is some basic information about this high pressure water washing machine with dryer.
Model | HP-220 |
Dimension | L*W*H :1300mm×3200mm×2600 mm |
Rail:7000mm Center distance:2590mm | |
Assembling Range | L*W*H :7.5m×3.3m×2.7m |
Moving Range | L*W:7.5m×3.7m |
Voltage | Voltage AC380V 50Hz Capacitance 20KVA |
Water Supply | DN25mm Water flow rate≥80L/min |
Air Pressure | 0.75~0.9Mpa Air flow rate≥0.1m3/min |
Ground Flatness | Deviation≤10mm |
Applicable Vehicles | Sedan/jeep/minibus within 10 seats |
Applicable Car Dimension | L*W*H :5400mm×2100mm×2100mm |
Washing Time | 2'45''/car |
Water Consumption | 100L/min |
Power Consumption | 0.25kwh/car |
Shampoo Consumption | 7ml/car |
Water wax consumption | 12ml/car |
Standard Devices | Optional Devices |
Shampoo spray system | Undercarriage wash system |
Water wax spray system | Water-repellent protective coating with high gloss finish |
High pressure water system | Remote control devices |
Self-diagnose system |
Risense touchless car wash equipment is equipped with a liquid metering pump, capable of precisely controlling the usage of foam and water wax to minimize car washing cost.
With a reputation for high-quality and reliability, Qingdao Risense Mechatronics is a car wash equipment manufacturer with almost a decade of design and production experience.
