This product has been discontinued and removed from our shelves.

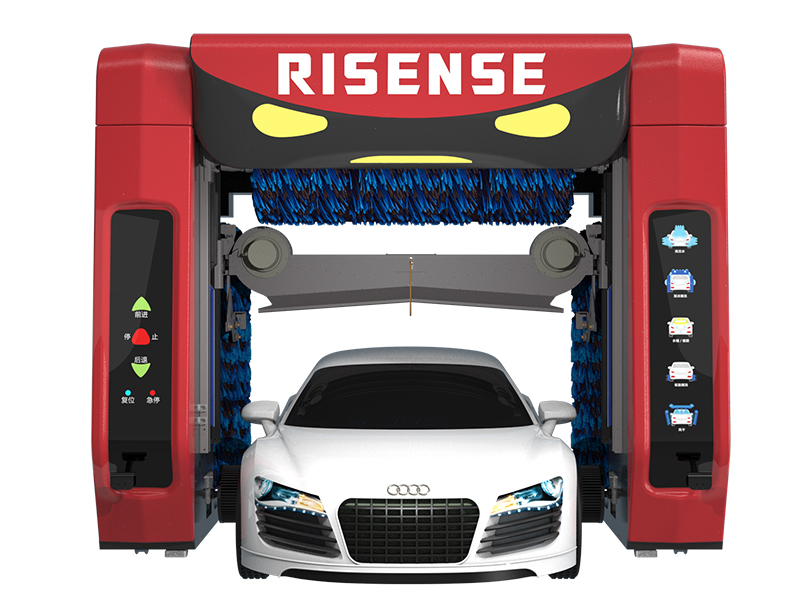

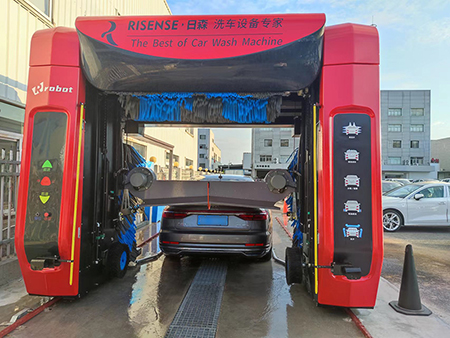

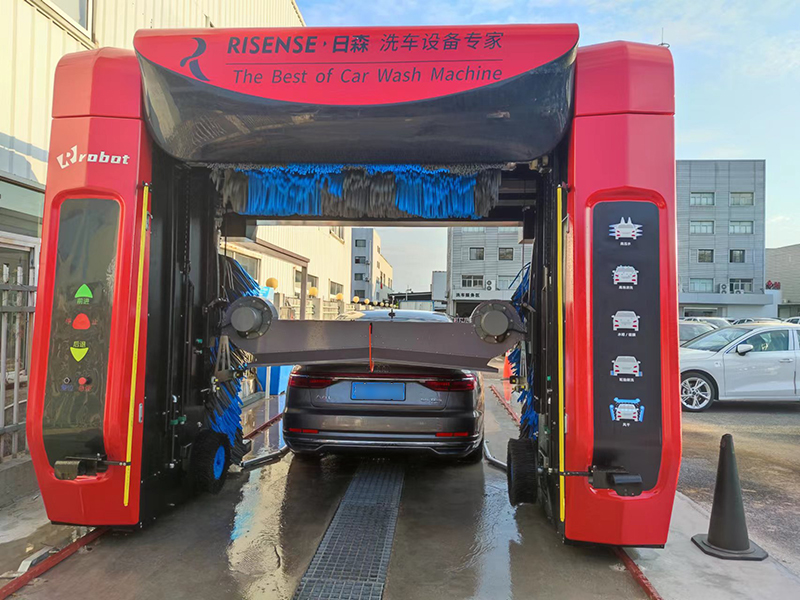

Automatic Car Wash Machine

CF-390

Automatic Car Wash Machine Robot Series

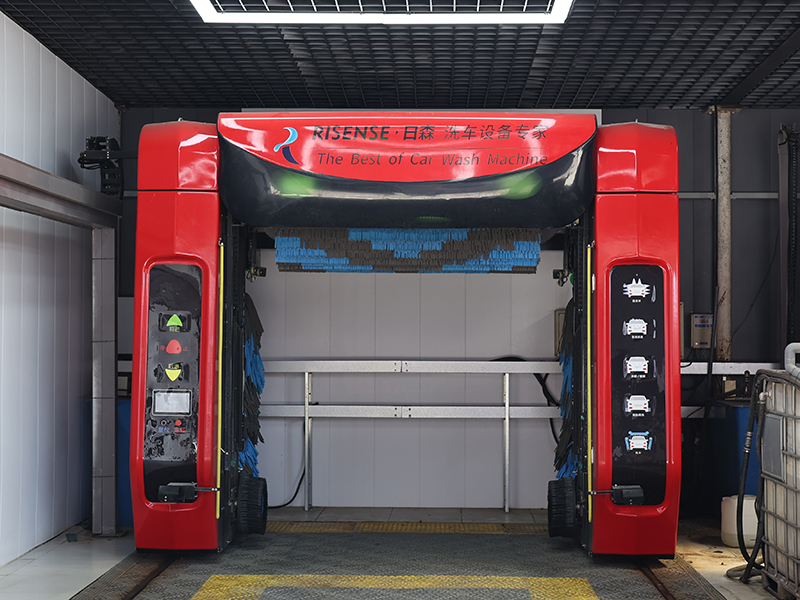

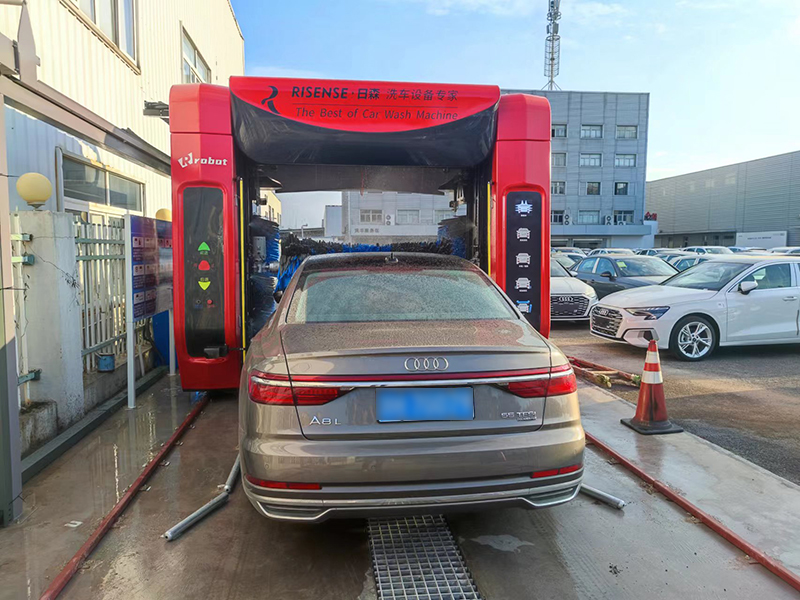

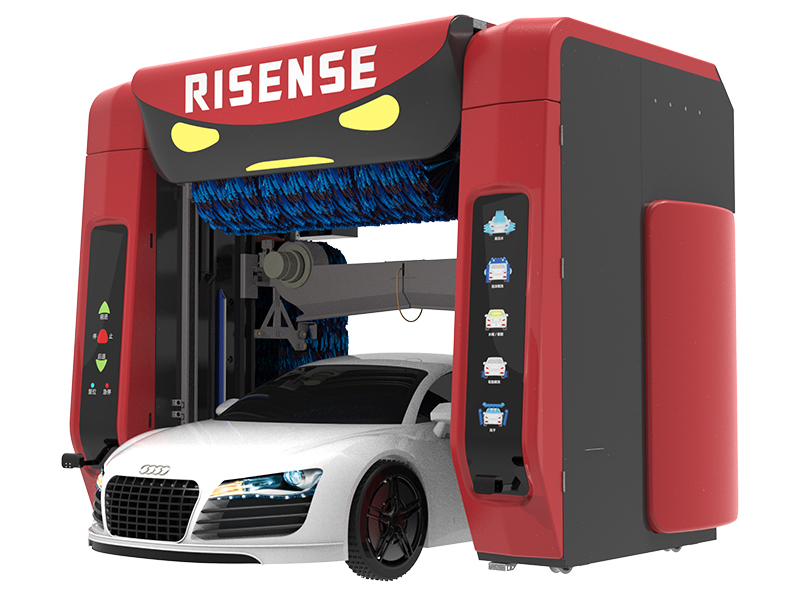

CF-390 Automatic car washing system is our newly developed smart car wash equipment, which is equipped with smart brush set, containing tire brush, large vertical brush, top brush. This enables it to realize all-round car washing in a smart, water-saving and accurate manner.

Smart car-width detection device is equipped to stop and remind-to-correct body misalignment issue; Refined look with elegant streamlined design.

  • Automatic Car Wash Machine
  • Automatic Car Wash Machine
  • Automatic Car Wash Machine
  • Automatic Car Wash Machine
  • Automatic Car Wash Machine
  • Parameters
  • Features
  • Advantages
  • Car washing process
Technical Parameter
Model CF-390
Overall dimension 2500*3960*3050mm
Rail: 9000*3200mm, height of drag chain: 3150mm
Installation size 11000*4300*3300mm (leave some space at both sides for access)
Voltage AC 380V 50Hz
Water supply Pipe diameter: DN25, water flow≥80L/min
Air-source pressure 0.75-0.9MPa
Ground flatness Deviation≤10mm
Available car to wash Car/jeep/coach within 10 seats
Moving range 5400*2100 (mirror folding)*2100mm
Car wash capacity One rollover: 2'45'', two rollovers: 5'20'', three rollovers: 7'20''
Water consumption One rollover: 85L/car, two rollovers:110L/car, three rollovers:130L/car
Power consumption 0.46-0.65kWh/car
Shampoo consumption 15ml/set
Wax consumption 20ml/set
Short vertical brushes 2
Long vertical brushes 2
Top brush 1
Configuration
Frame ZFC alloy steel hot-dipped galvanized steel frame
Brush material The 4th-generation foam brush
Control system MCU (Risense)
Optoelectronic monitoring Banner from the USA
Proximity Switch PEPPERL FUCHS from Germany
Contactor Siemens from Germany
Solenoid valve Pinguan
Thermal relay Schneider from France
MCCB Schneider from France
Motor protector Schneider from France
Intermediate relay Honeywell from the USA
Elevating motor with brake SITI
Brush rotating motor SITI
Features
  • Fully automatic PLC control system ensures efficient and precise operation.
  • Click the button to start washing, simple and convenient
  • Error code and possible cause clearly displayed on screen, allowing for convenient troubleshooting
Advantages
  • Automatic Car Wash Machine – Robot Series, CF-390

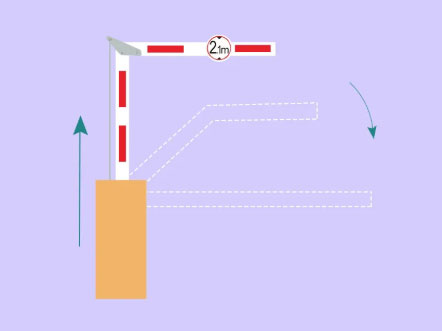

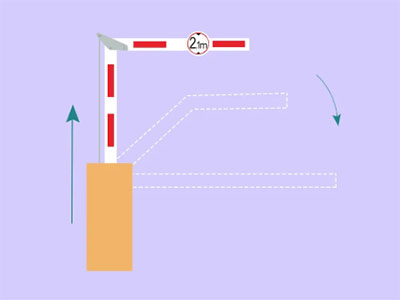

    Multifunctional barrier gate The barrier gate can also be used for vehicle height limit, automatically lifts when the customer scans the QR code to start the process.

  • Automatic Car Wash Machine – Robot Series, CF-390

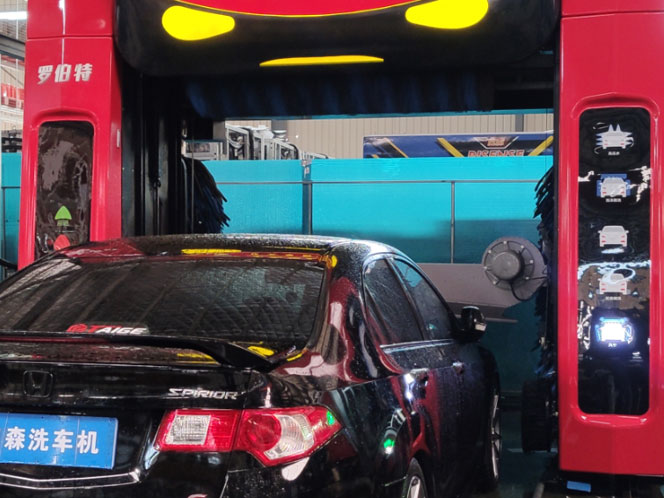

    Process notification Smart Forward-Stop-Backward notification displayed on the left panel, washing process display on the right panel, clearly showing customer the current washing process.

  • Automatic Car Wash Machine – Robot Series, CF-390

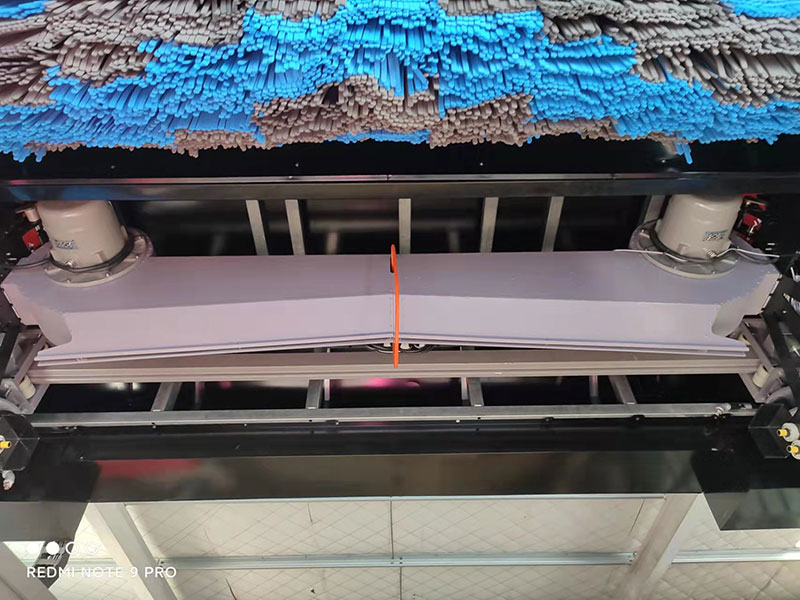

    Efficient and silent blower dryer Built-in blower dryer with elegant look and intensive structure. The dryer moves along with the main washing parts, able for mobile and contour-following drying. Upgraded powerful and silent blower, featuring high drying performance, eco-friendliness and low noise.

Smart brush set
  • Automatic Car Wash Machine – Robot Series, CF-390

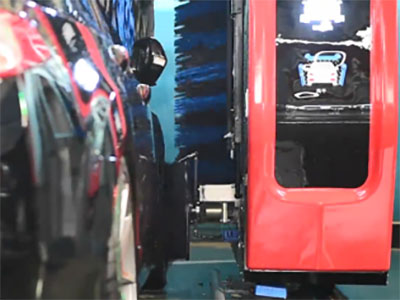

    Tire-brush-following water sprayWater spray following the tire brush, accurate and water-saving, complete wheel cleaning.

  • Automatic Car Wash Machine – Robot Series, CF-390

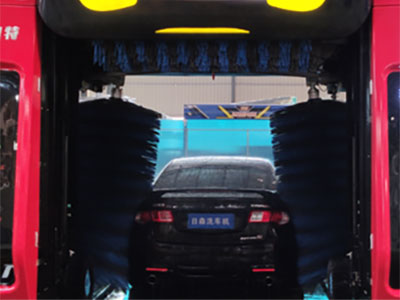

    Large vertical brush smart-leaningThe large vertical brush can be smartly leaned to fit and cover the car, enabling better washing performance.

  • Automatic Car Wash Machine – Robot Series, CF-390

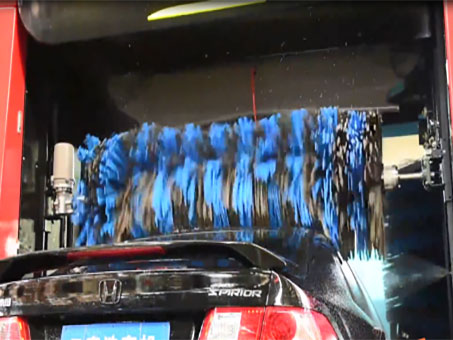

    Top brushLift top brush control, steady and accurate.

Car washing process

Pre-wash --- foaming --- brushing --- water spraying --- water wax spraying --- drying
