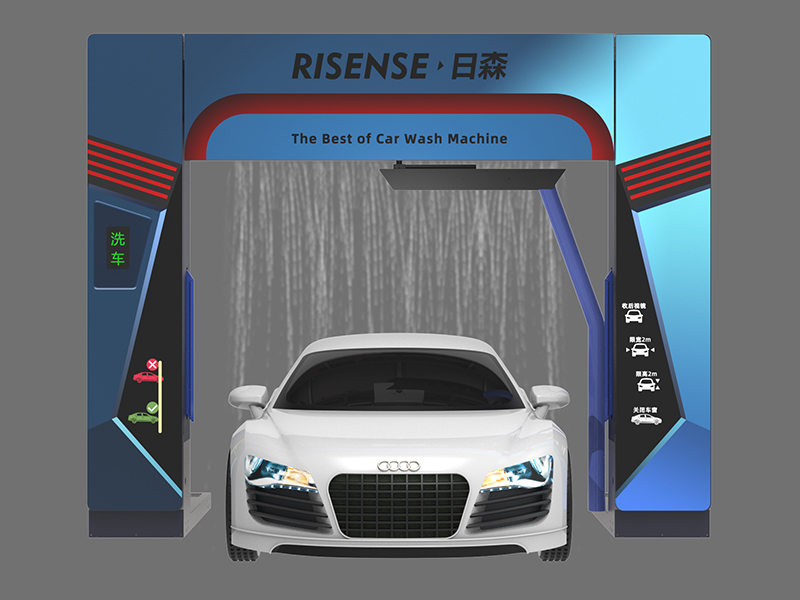

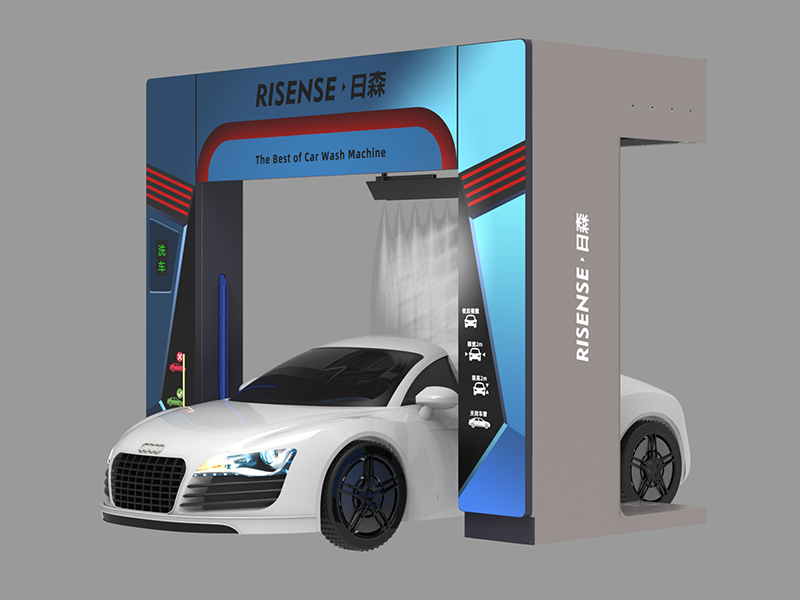

Single Arm Touchless Car Wash Machine HP-270
This product has been discontinued and removed from our shelves.
Features
- Streamlined appearance: Integrated sealing frame with high aesthetics and durability.
- Car position indicator panel: It can tell you the suitable position where the car can be stopped.
- Multi-functional pipeline: High-pressure water and rinse-free shampoo is integrated in the same spray system. The compact and multi-functional design delivers optimal efficiency.
- Car washing status panel: The car washing light will flicker to indicate it is working.
- Welded anticorrosive hot-dip galvanized frame: The frame adopts Q235 standard steel with 3mm thickness. Its surface is processed through hot-dip galvanizing and feature high corrosive resistance. The frame also obtained Level 10 certificate for SGS salt spray test.
- Swing and single arm: The flexibility of single arm car washing system and the stability of swing arm vehicle washing machine are perfectly jointed.
- HD touch screen: HD display can present the car washing mode or car washing steps. You can choose the display contents upon request. It is easily operated even for the first user.
- Unattended operation: The vehicle washing equipment allows 24h unattended work and can be started once you scan the code.
Parameter
| Product Name | Single Arm Touchless Car Wash Machine HP-270 (Economical version) | Single Arm Touchless Car Wash Machine HP-270 (Luxury version) |
| Dimension | L*W*H: 1600mm*3600mm*2900mm Rail length: 9500mm | L*W*H: 1600mm*3600mm*2800mm Rail length: 9500mm |
| Assembling Range | L*W*H: 10500mm*4600mm*3600mm | L*W*H: 10500mm*4600mm*3600mm |
| Equipment room L*W*H:2500mm*1600mm*2000mm | Equipment room L*W*H: 2500mm*1600mm*2000mm | |
| Voltage | Three phase 380V 50HZ | Three phase 380V 50HZ |
| Power | 33kW | 35kW |
| Air Pressure | 0.6-0.7MPa | 0.6-0.7MPa |
| Applicable Vehicles | Car/jeep/others within 7 seats | Car/jeep/others within 7 seats |
| Applicable Car Dimension | L*W*H: 5300mm*2100mm*2100mm | L*W*H: 5300 mm*2100 mm*2100mm |
| Washing Time | Fine washing: 6min/car | Fine washing: 6min/car |
| Water Consumption | 165L/car | 165L/car |
| Electricity Consumption | 0.65-0.75kwh/car | 0.65-0.75KWh/car |
| Shampoo Consumption | 25-60ML/car | 25-60ML/car |
| Rinse-Free Car Wash Consumption | 20-50ML/car | 20-50ML/car |
| Water Wax Consumption | 20-40ML/car | 20-40ML/car |
| Equipment Data Intellectualization | Management, spot check, operation | Management, spot check, operation |
| Self-Diagnose System | Equipped | Equipped |
Components of the Automatic Car Wash Machine

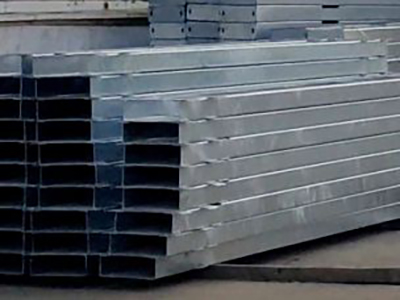

Welded anticorrosive hot-dip galvanized frame: Level 10 certificate for SGS salt spray test.

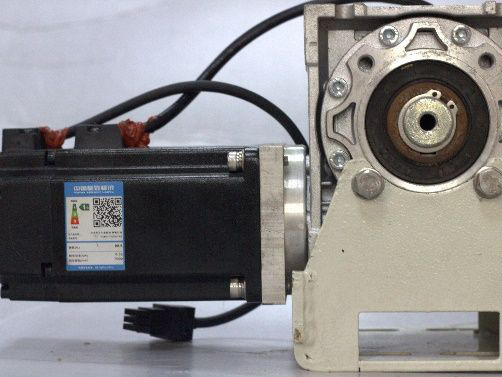

Stepper motor: Customized to suit your needs

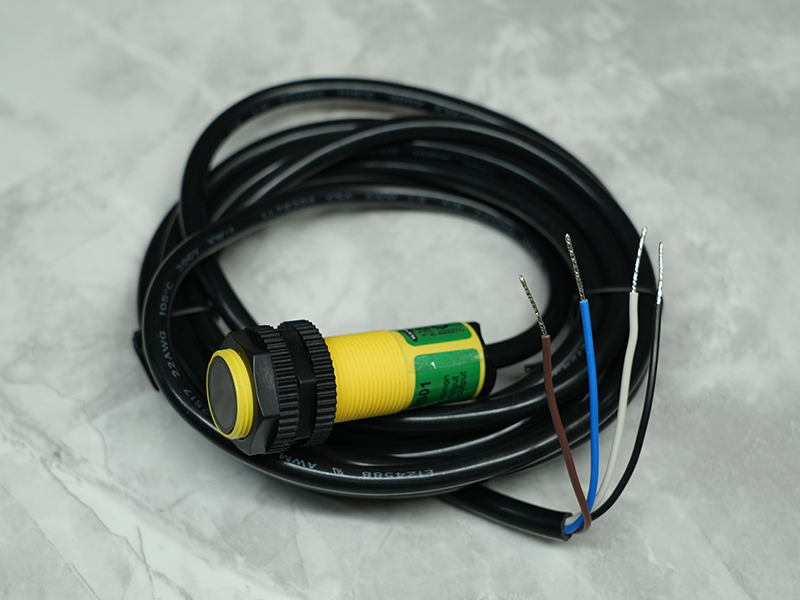

BANNER photoelectric sensor can precisely sense the car position and target the washing range.

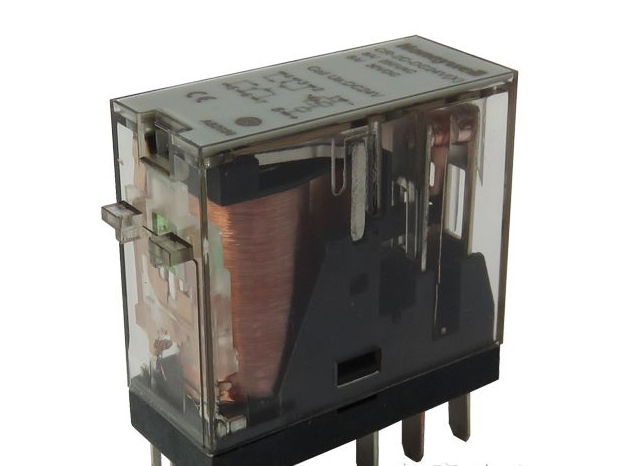

Honeywell relay

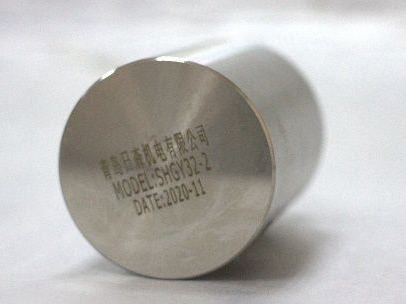

Stainless steel swivel joint: flexible and durable

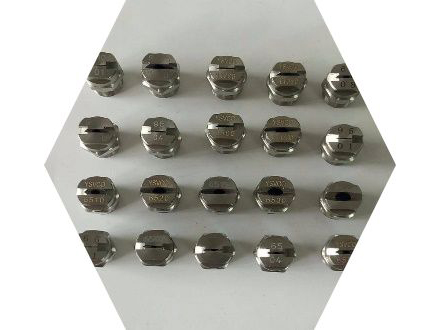

Special 416 stainless steel nozzle: stable and durable

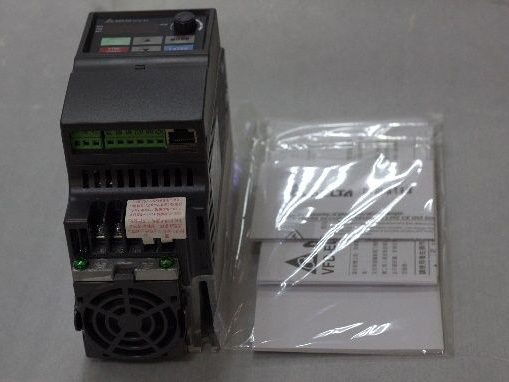

DELTA frequency converter

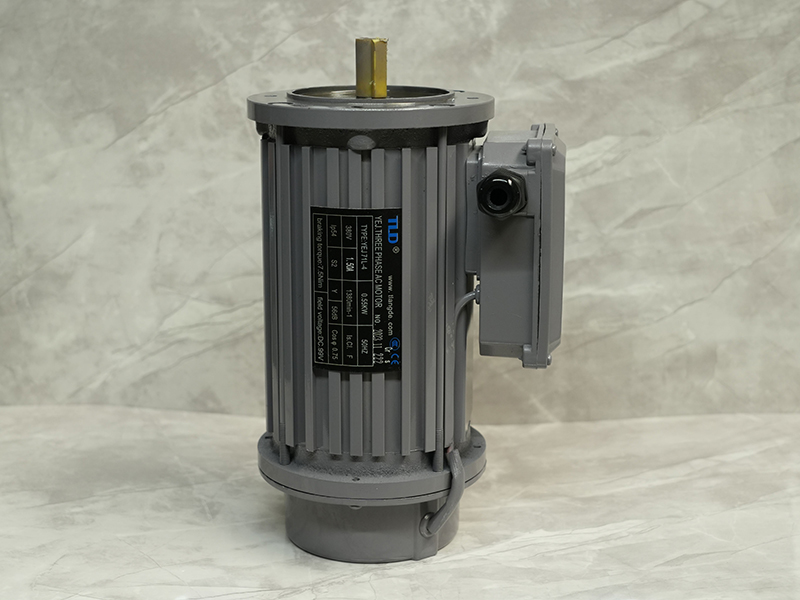

TRUNDE waterproof motorIP67

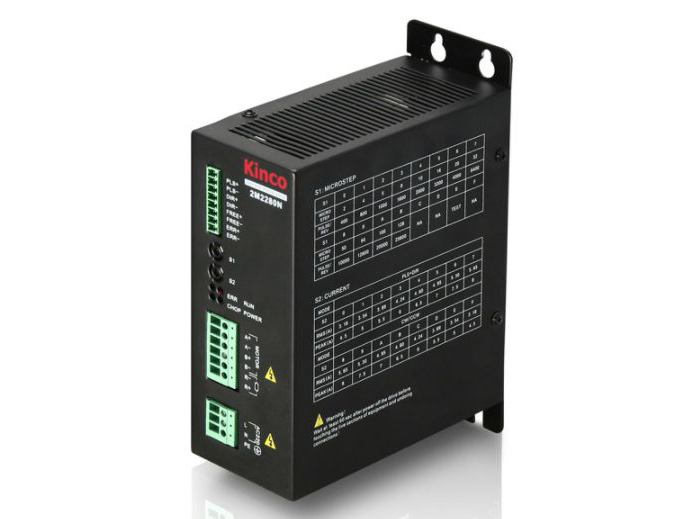

Step drive

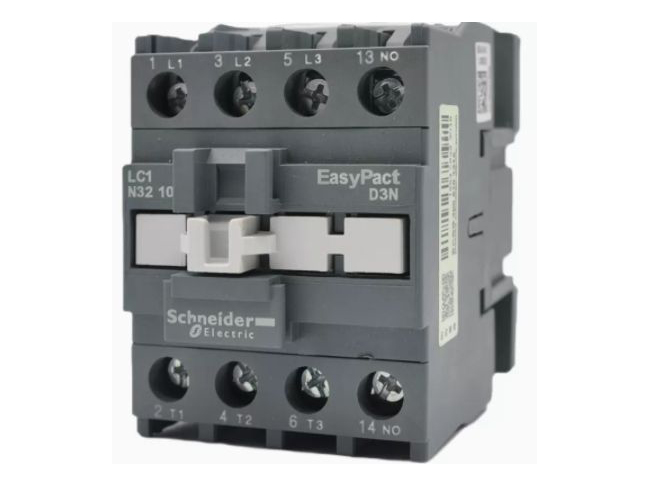

Schneider contactor

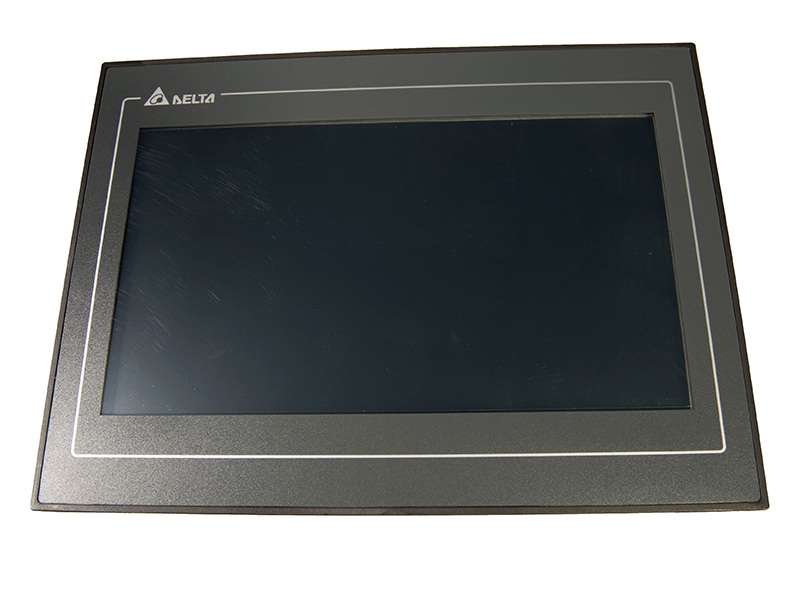

DELTA liquid crystal display screen

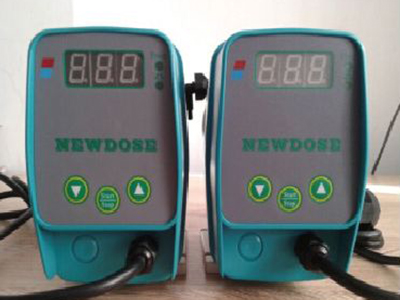

NEWDOSE liquid dosing pump
Details
-

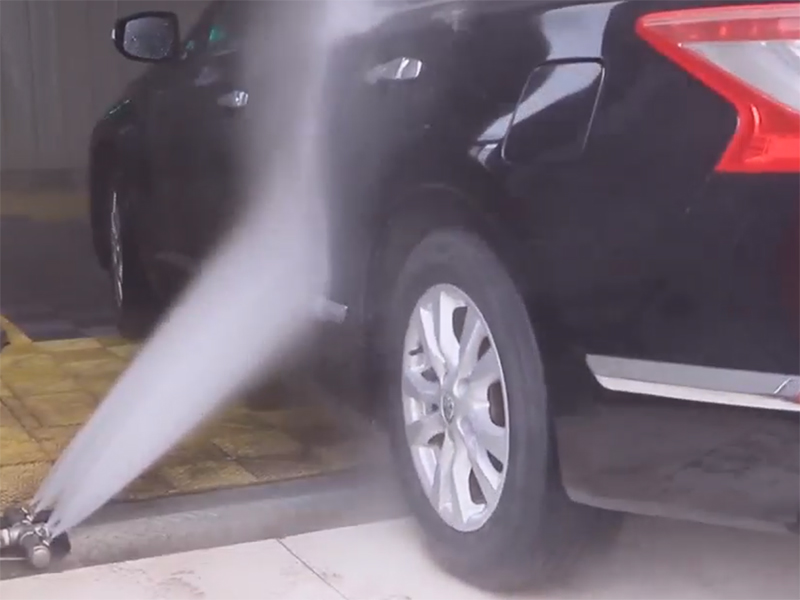

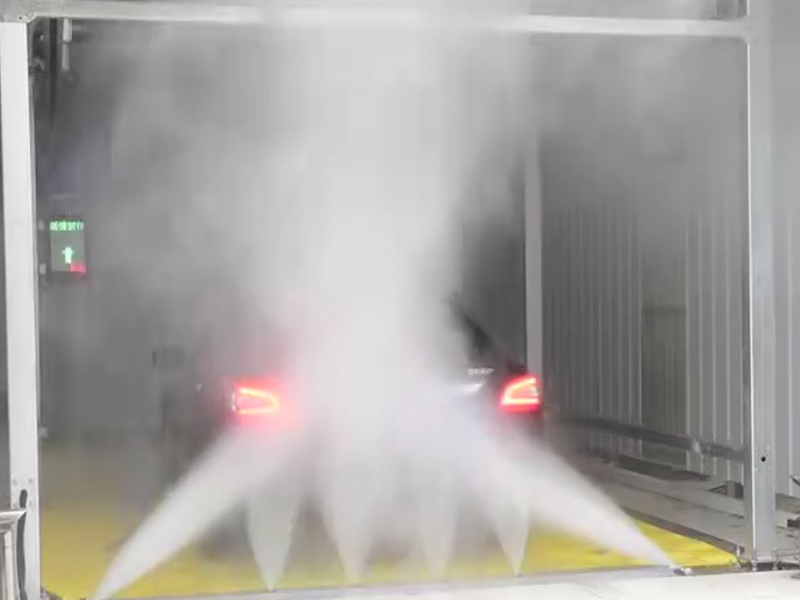

Bottom water sprayer
The bottom water sprayer uses 90bar high pressure water to clean wheels, rims and chassis gently and effectively, removing ingrained dirt.
Two sets of side sprayer are used for washing wheels and rims and one set of bottom sprayer for cleaning chassis.
-

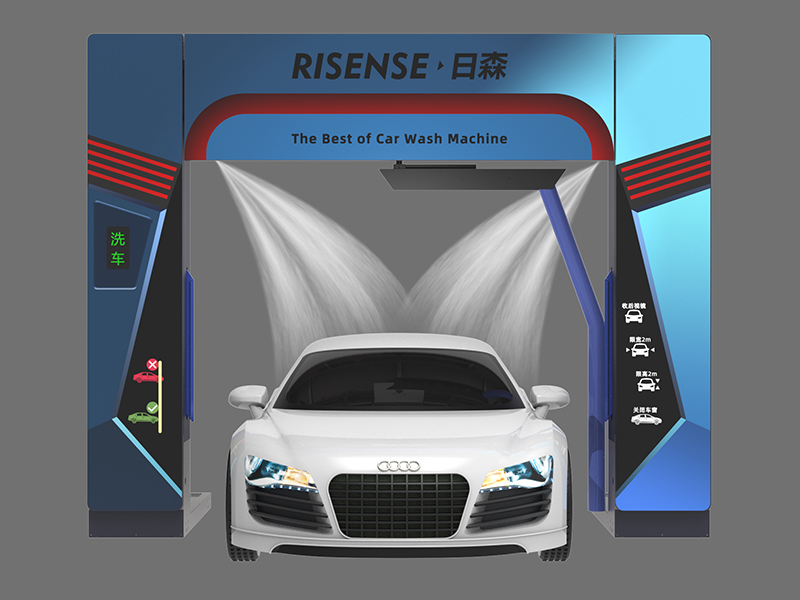

Rinse-free car wash
The swing arm can walk back or forth for high-pressure rinse-free car wash spraying. After spraying, the car washing system will stop a few minutes to leave the car wash react with the contaminants and dirt.
-

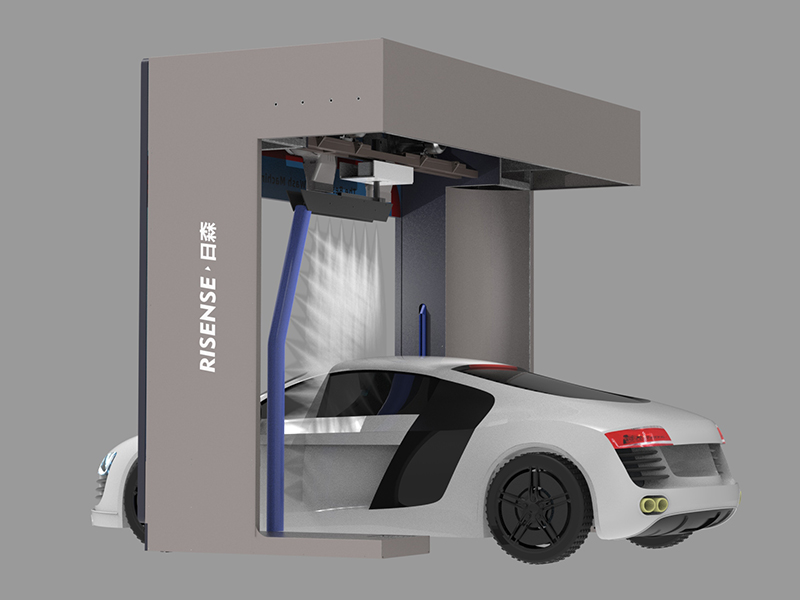

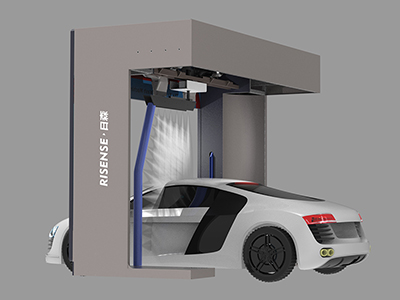

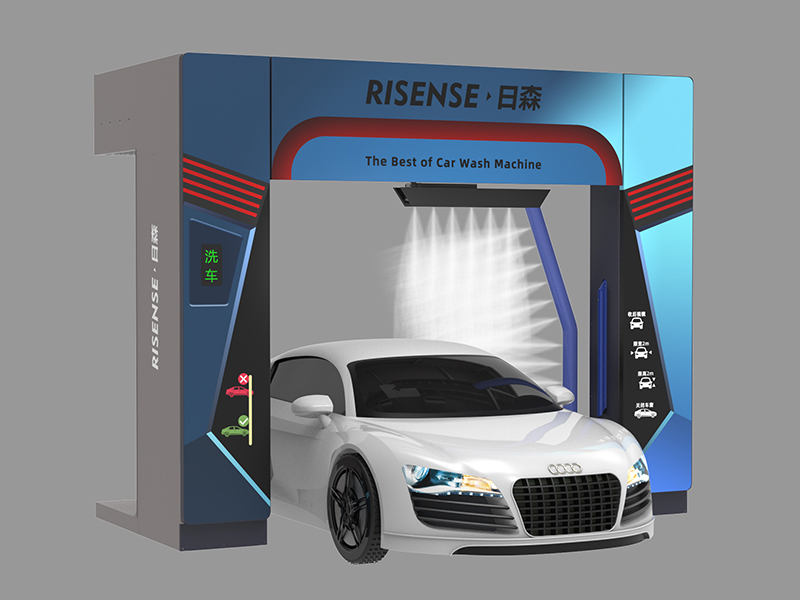

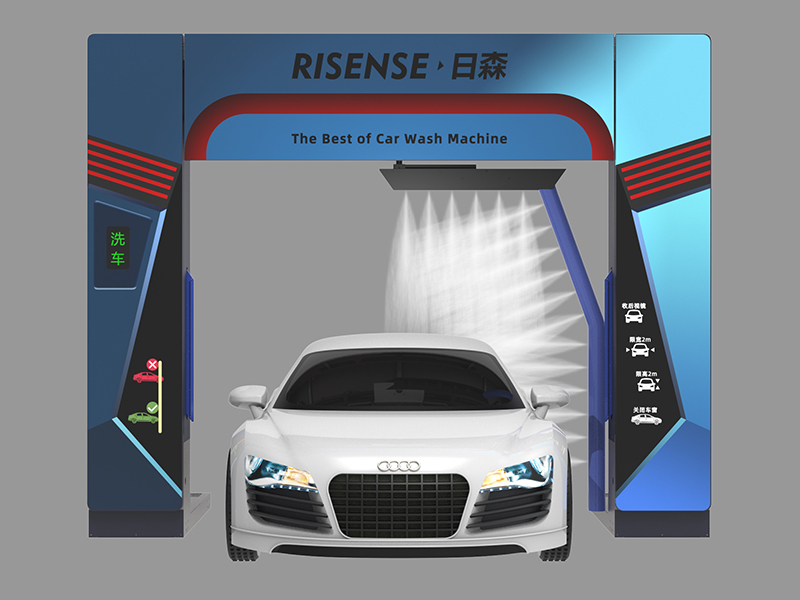

Single swing arm with high pressure water sprayer
“7”-shaped water spray rod allows cleaning the vehicle evenly in consistent pressure.
The vehicle washing machine can perform strengthen cleaning on the front and rear car and rearview mirrors to improve the effect of car washing.
-
High foam car shampoo
The swing arm can walk back or forth to spray and cover the whole vehicle with high-foam car wash shampoo. After shampoo spraying, the car washing machine will stop a few minutes to allow the shampoo react with the contaminants, which enables touchless car cleaning to remove the grease, oils, dirt, etc.
-
Water wax spraying
The water wax has below features:- Hydrophobicity: The hydrophobic water wax can help to remove the water residue and strengthen the blower drying performance.
- Car paint protection: Water wax can generate a protective film on the surface of car paint and keep protecting the car surface.
- Car paint gloss improvement: The water wax can not only be coated a hydrophobic film, protect a surface paint, but also improve the paint gloss.
-
Drying
The top swing dryer and side fixed dryer can greatly improve the drying performance.
The car washing equipment delivers excellent drying efficiency by virtue of air curtain effects and advanced techniques.
